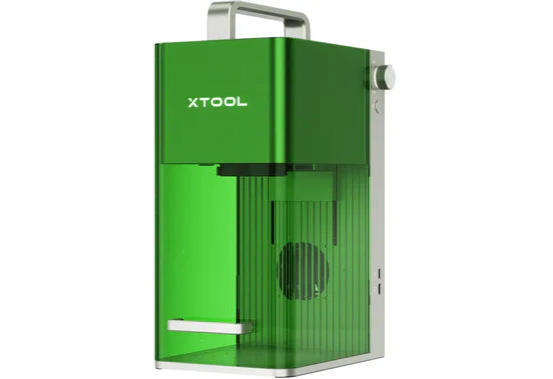

xTool F1 Lite Laser Engraver

The xTool F1 Lite is a portable and high-speed laser engraver designed for precise and efficient engraving on various materials. Compact yet powerful, it offers fast engraving speeds and high accuracy, making it ideal for personal and small business use. With its user-friendly interface and easy portability, the F1 Lite is perfect for creating detailed designs.

Package Options:

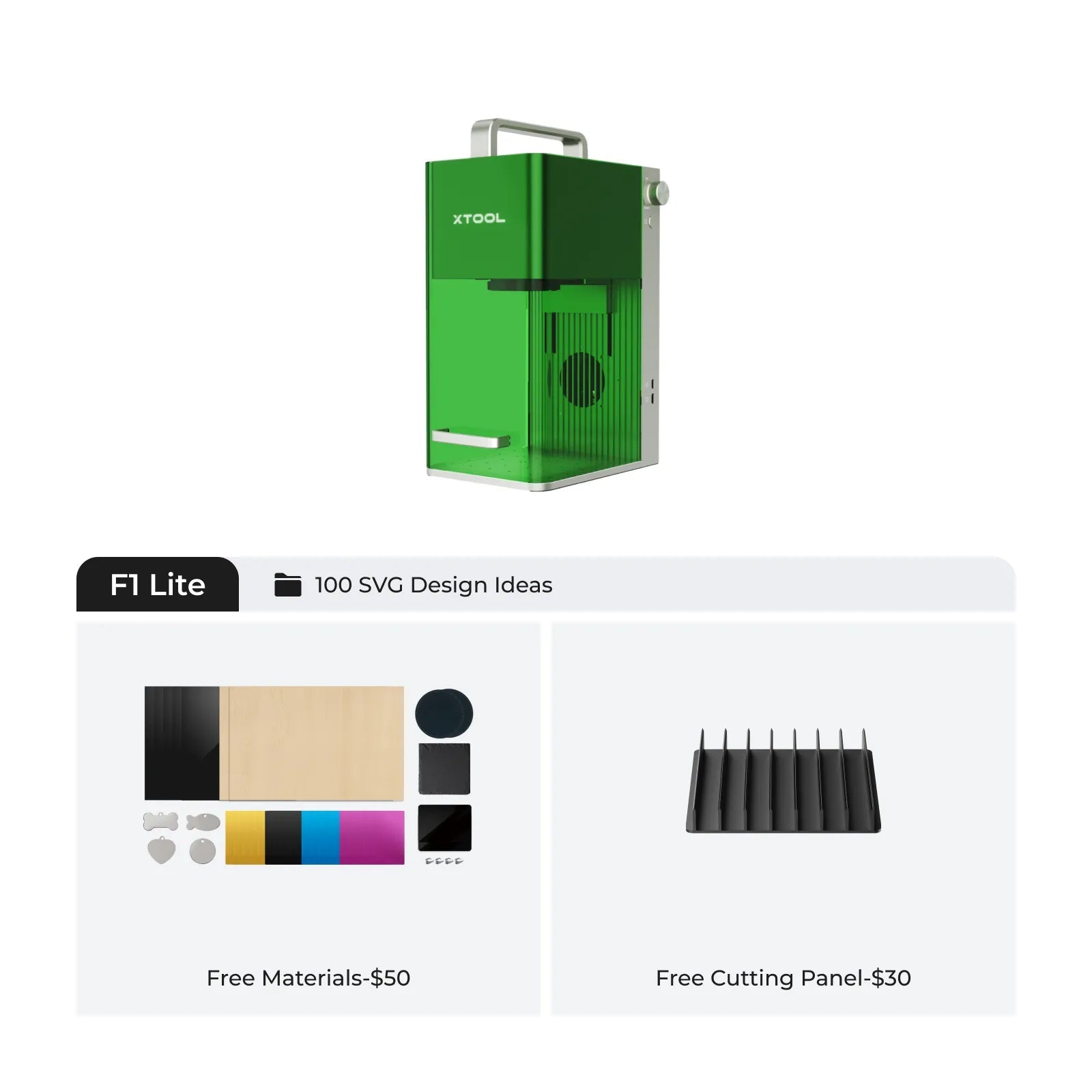

F1 Lite Standalone: Contains xTool F1 Lite, Free Material Kit ($50), Free Cutting Panel ($30), and Free 100+ SVGs & Business Guide

• Free Material Kit ($50): Basswood, black acrylic, stainless steel business card, and more.

• Free 100+ SVGs & Business Guide

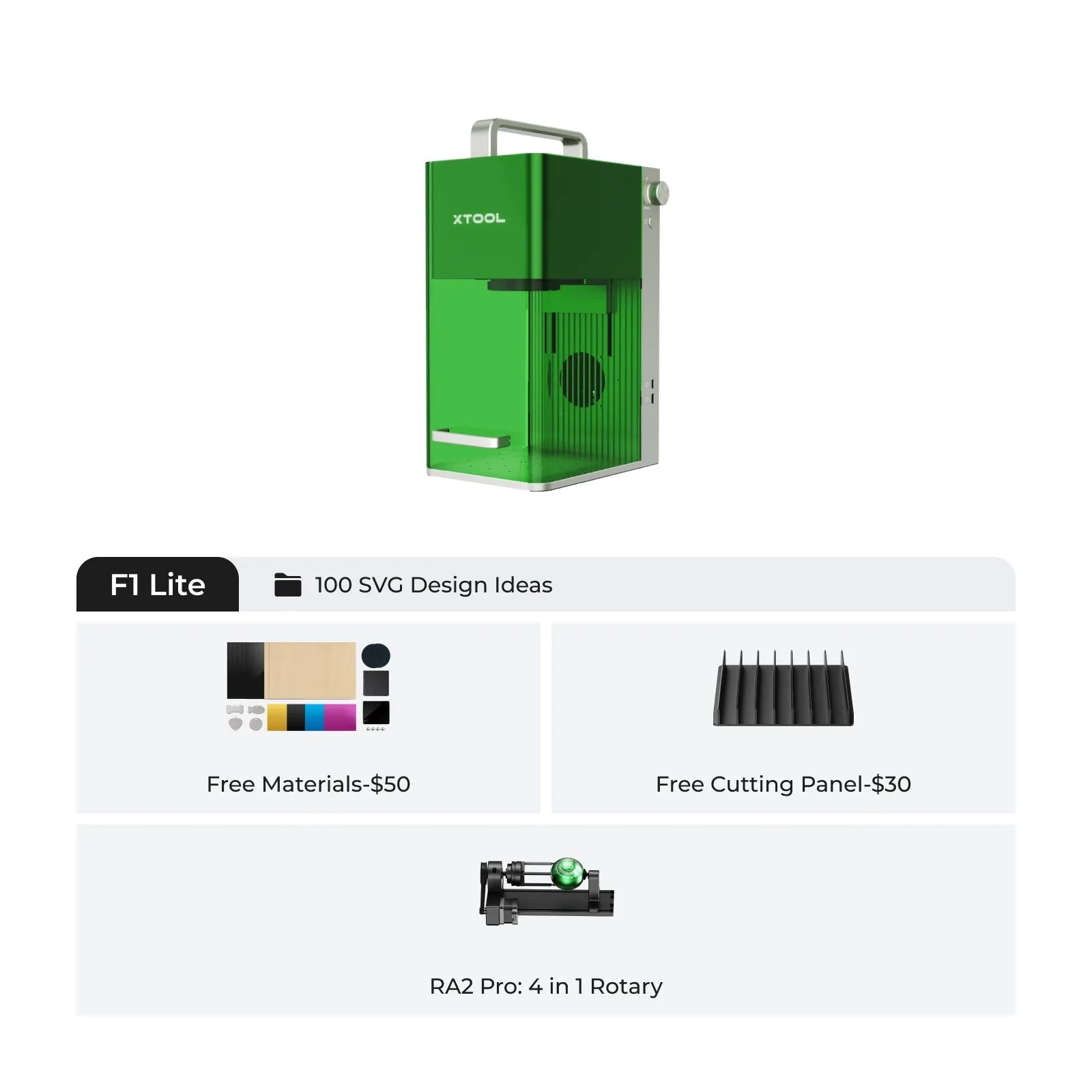

F1 Lite + RA2 Pro: Contains xTool F1 Lite, Free Material Kit ($50), Free Cutting Panel ($30), RA2 Pro, and Free 100+ SVGs & Business Guide

• Free Material Kit ($50): Basswood, black acrylic, stainless steel business card, and more.

• Free Cutting Panel ($30)

• RA2 Pro: Process 99% curved objects with 4 in 1 rotary.

• Free 100+ SVGs & Business Guide

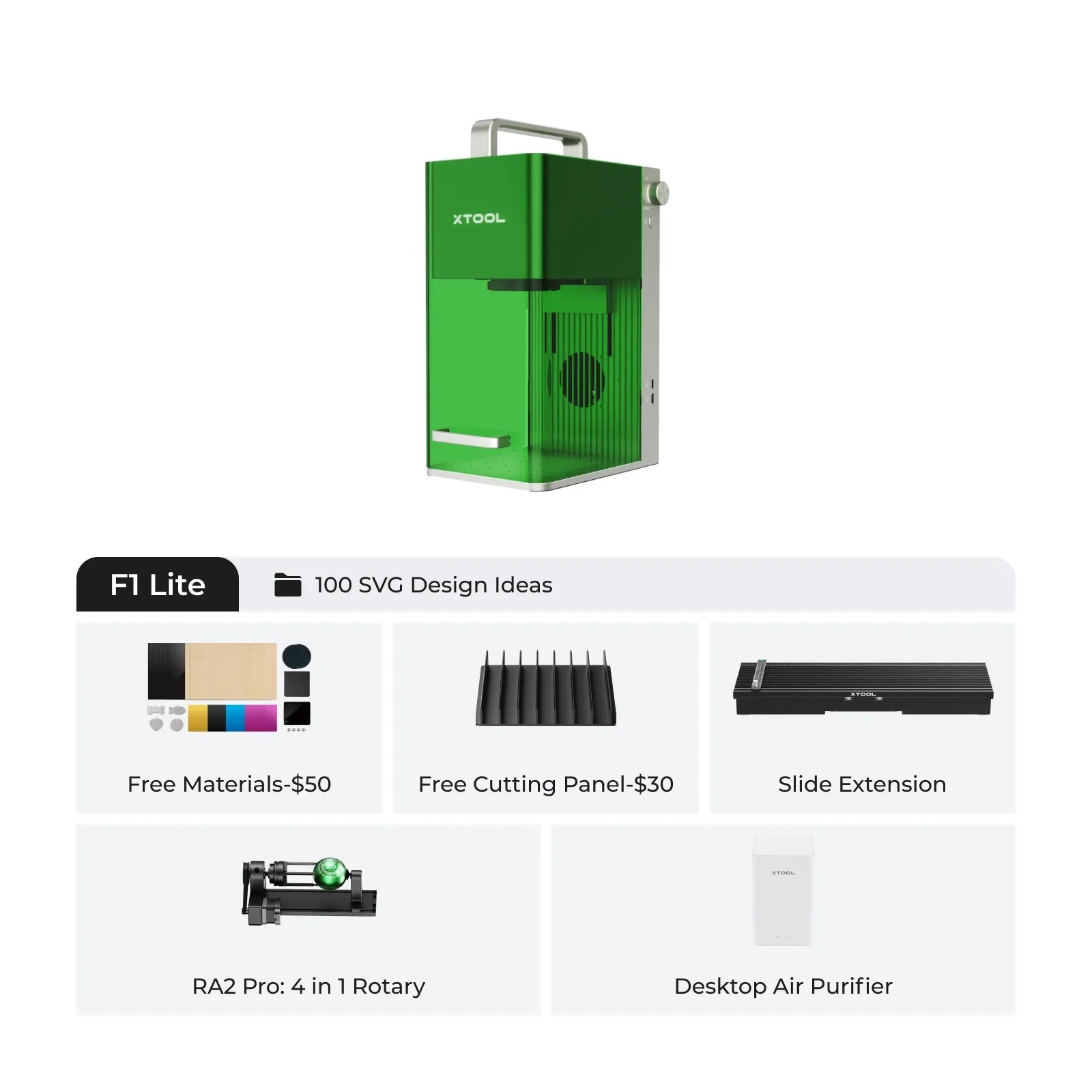

F1 Lite Deluxe Bundle: Contains xTool F1 Lite, Free Material Kit ($50), Free Cutting Panel ($30), Slide Extension, RA2 Pro, Desktop Air Purifier, and Free 100+ SVGs & Business Guide

• Free Material Kit ($50): Basswood, black acrylic, stainless steel business card, and more.

• Free Cutting Panel ($30)

• Slide Extension: Extend 4X working area.

• RA2 Pro: Process 99% curved objects with 4 in 1 rotary.

• Desktop Air Purifier: Process at home with 99.97% purification rate.

• Free 100+ SVGs & Business Guide

Features:

• Model: xTool F1 Lite
• Laser Type: 10W Diode Laser
• Metal Engraving Capability: Stainless Steel and Coated Metals
• Best For: Individual DIY Users / Customizing Personal Items

Specifications:

Processing Capacity

• Laser Type: 10w Diode Laser
• Supported Materials
  Laser Cuttable:
  • 10W Diode Laser: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic.
  • Laser Engravable:
  • 10W Diode Laser: Paper, Wood, Leather, Coated Metal, Some Dark Opaque Acrylic, etc.
• Processing Mode:

  • Laser Engraving
  • Laser Cutting
• Working Area:

  • 4.53" × 4.53"(115mm × 115mm)
  • 15.75" × 4.53"(400mm × 115mm) with Extension
• Max. Working Speed:  4000mm/s
• Max. Laser Cutting Capacity (Basswood): 8mm (Multiple Cuts)
• Max. Laser Cutting Capacity (Acrylic): 6mm (Multiple Pass）
• Max. Processing Height: 113mm
• Max. Rotary Engraving Diameter: 113mm

Smart Software

• Supported Software: xTool Creative Space/Lightburn
• Operating System: Android/iOS/Windows/macOS
• Connection Method: WiFi/USB
• Supported Files: SVG/DXF/JPG/JPEG/PNG/BMP, etc.
• AImake Compatibility: Yes

Easy Operation

• Pre-assembled: Yes
• Framing Mode:

  • Rectangle Framing
  • Outline Framing
• Focus Mode:

  • Auto Focus
  • Manual Focus (Two dots alignment)
• Preview Method: High-Speed Light Live Preview

Accuracy & Precision

• Laser Spot Size: 10W Diode Laser: 0.08mm × 0.06mm
• Motion Accuracy: 0.00199 mm

General Information

• Max. Machine Input Power: 24V 3.5A
• Product Weight: 9.81 lb (4.45kg)
• Product Dimensions: 7.05" × 9.25" × 13.15"(179mm × 235mm × 334mm)
• Safety Certification: Class 4 Laser Safety
• Power Adapter Input Voltage: 100 V - 120 V, AC 50/60 Hz
