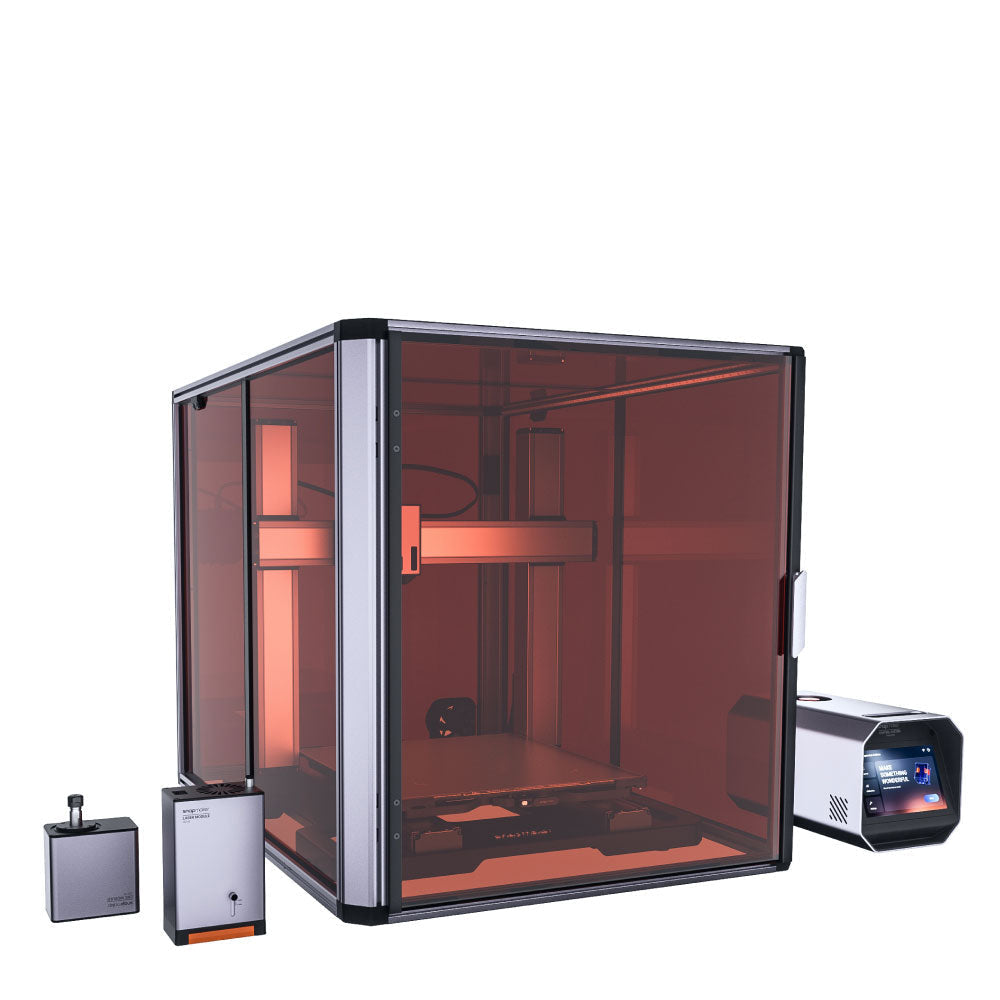

Snapmaker Artisan 3-in-1 3D Printer

Options:

• Artisan Standard Version: Includes Dual-extrusion 3D Printing Module, 10W Laser Module, 200W CNC Module, Enclosure, and more.

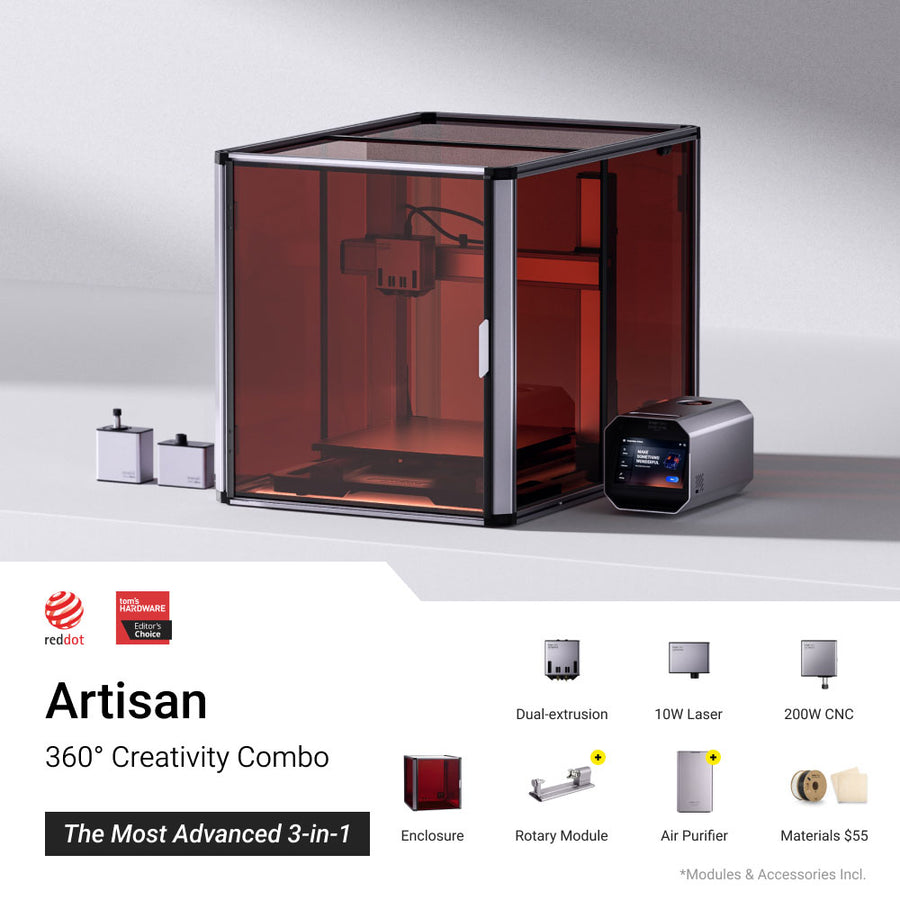

• Artisan 360° Creativity Combo: Includes Artisan Standard Version, Rotary Module and Air Purifier. 4-axis Rotary CNC and Laser. Make in fresh air!

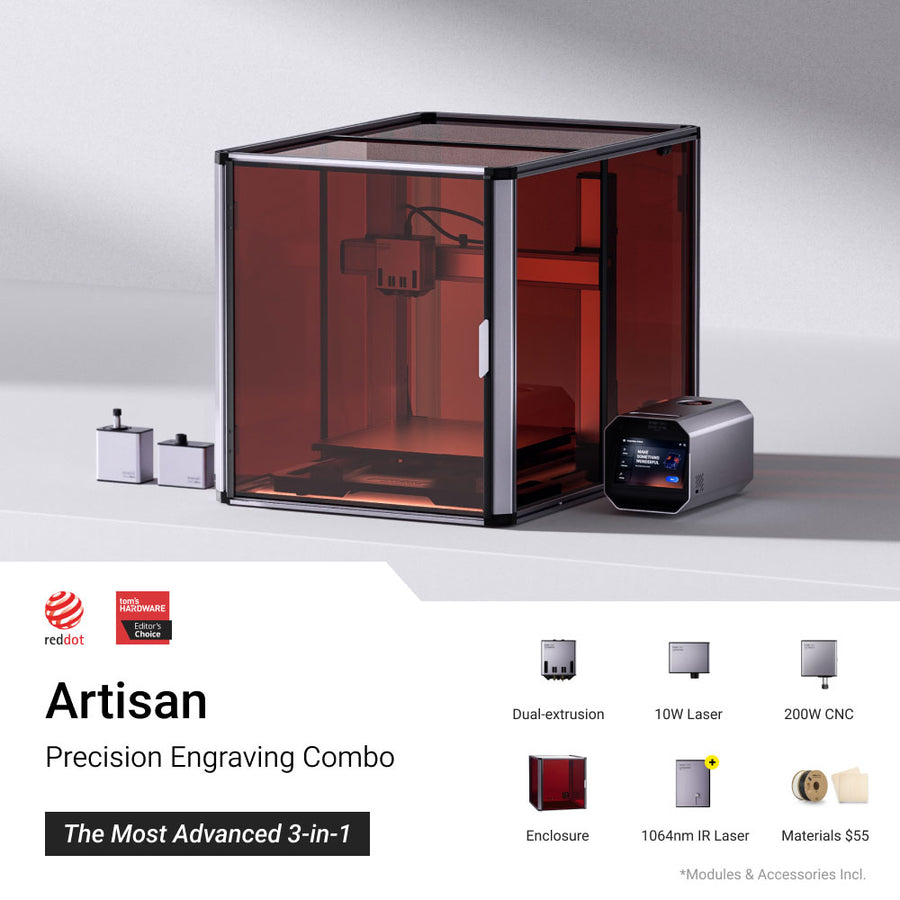

• Artisan Precision Engraving Combo: Includes Artisan Standard Version and 1064nm Infrared Laser Module. Finely laser engrave with various plastics and metals.

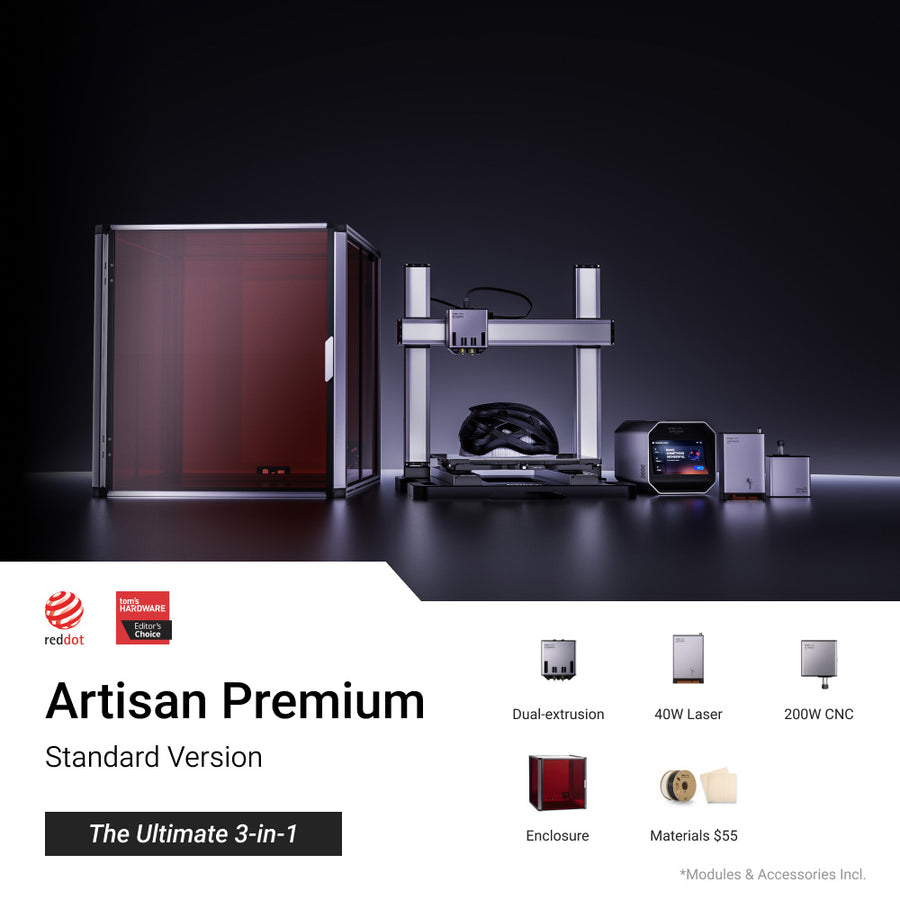

• Artisan Premium Standard Version: Includes Dual-extrusion 3D Printing Module, 40W Laser Module, 200W CNC Module, Enclosure, and more.

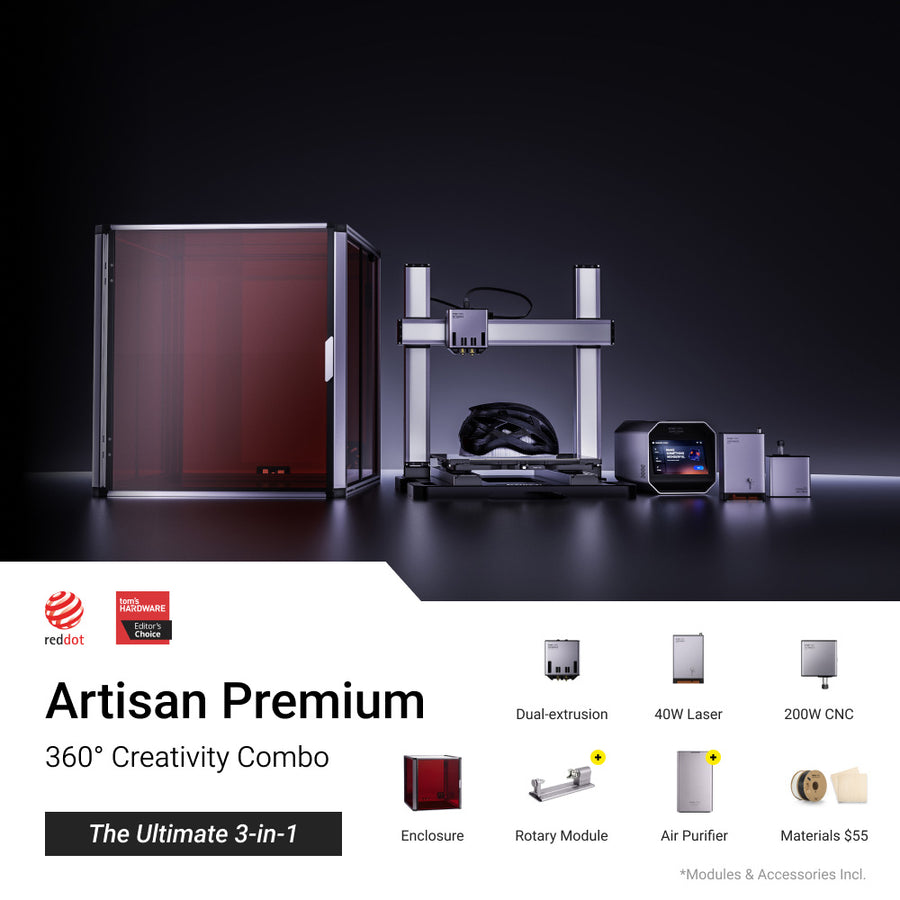

• Artisan Premium 360° Creativity Combo: Includes Artisan Premium Standard Version, Rotary Module and Air Purifier. 4-axis Rotary CNC and Laser. Make in fresh air!

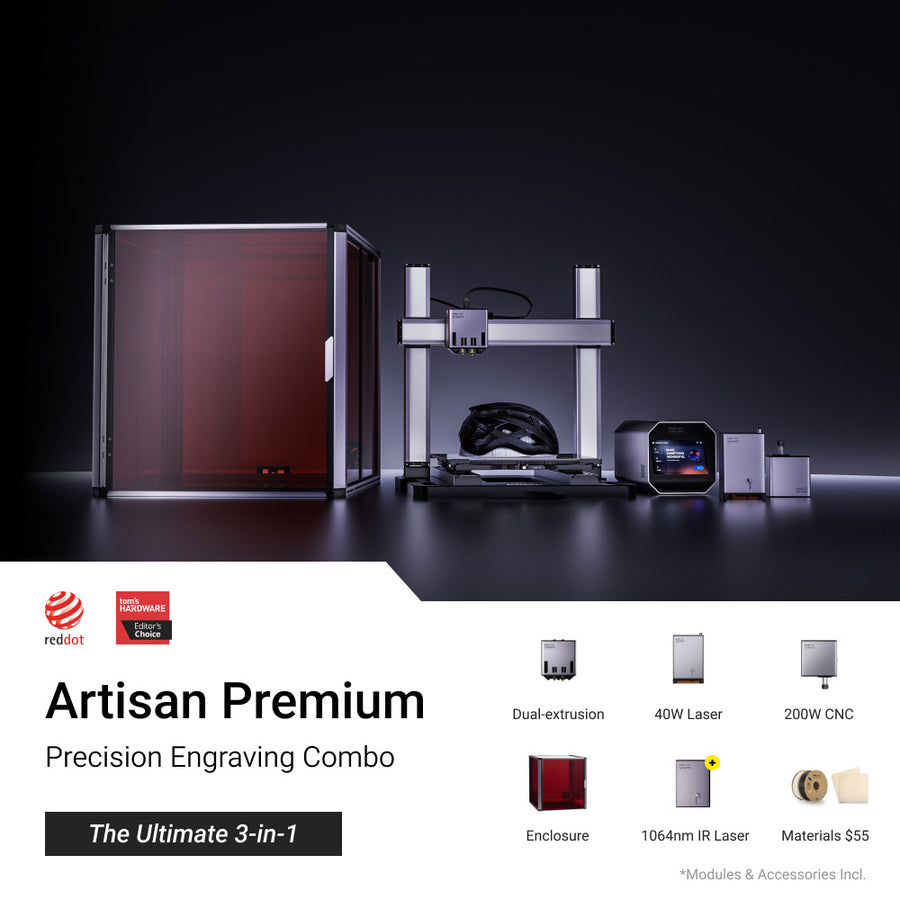

• Artisan Premium Precision Engraving Combo: Includes Artisan Premium Standard Version and 1064nm Infrared Laser Module. Finely laser engrave with various plastics and metals.

Product Overview

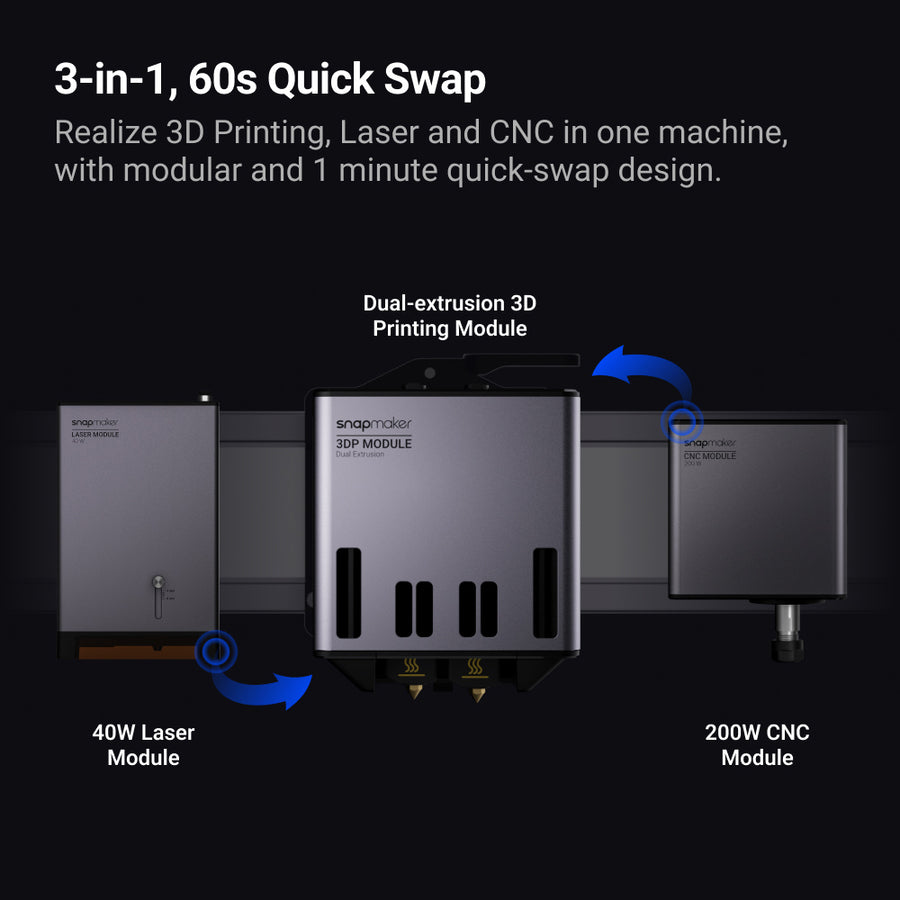

• The Ultimate 3-in-1: Dual Extrusion 3D Printing, 40W/10W Laser, 200W CNC

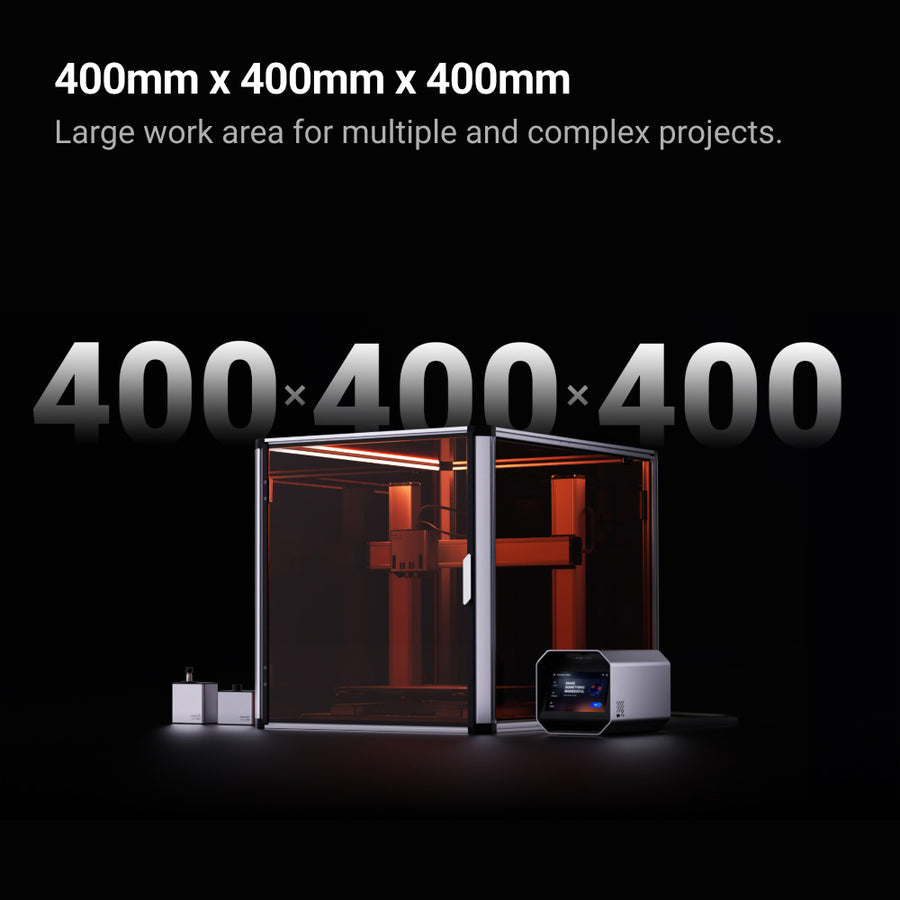

• Large Work Area: 400mm × 400mm × 400mm

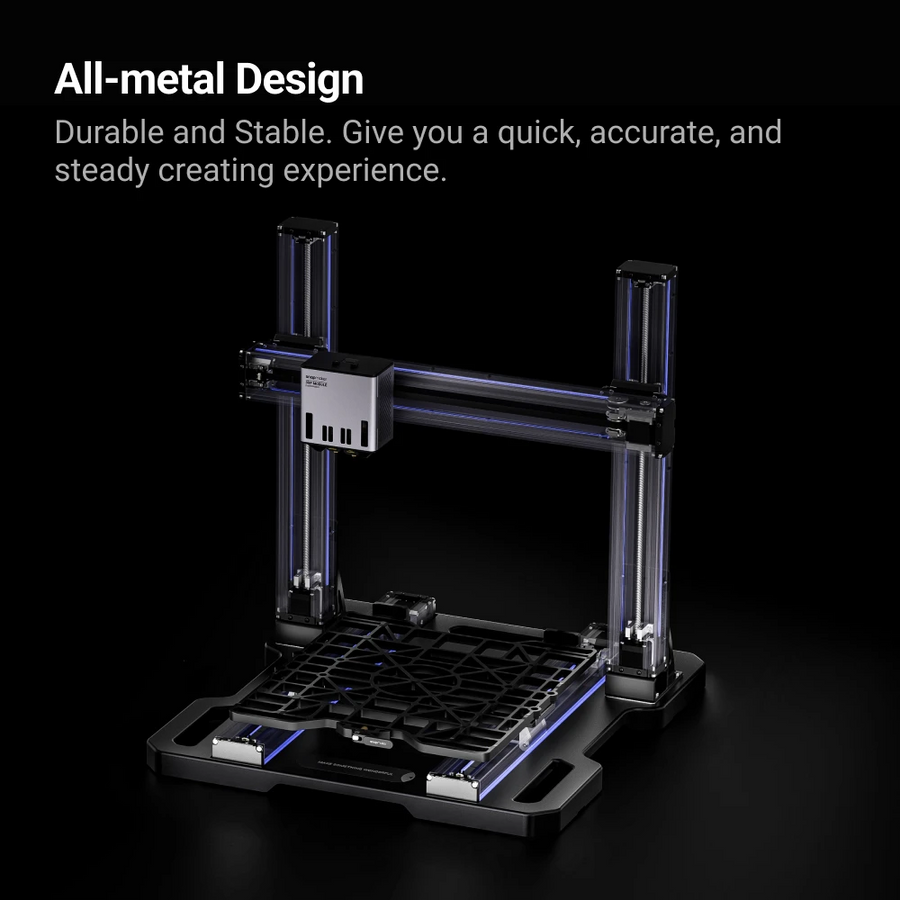

• Superior Hardware: Industrial-grade Linear Rail, Quick Swap Toolheads & Platforms, All-metal Design

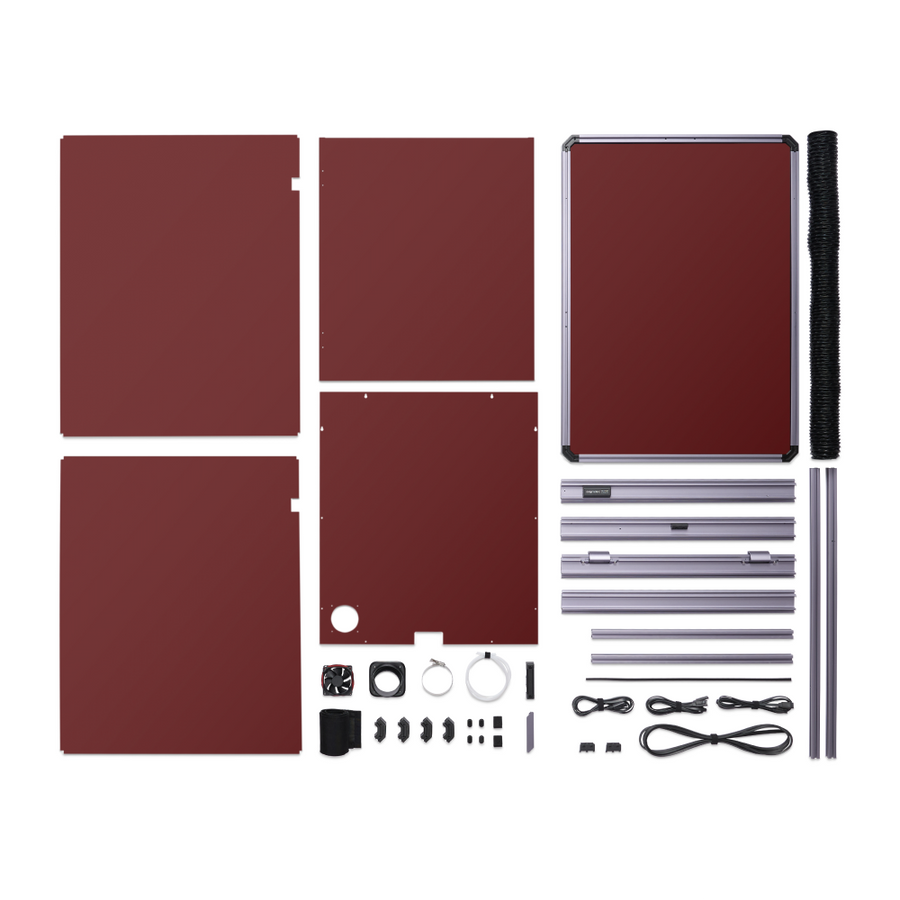

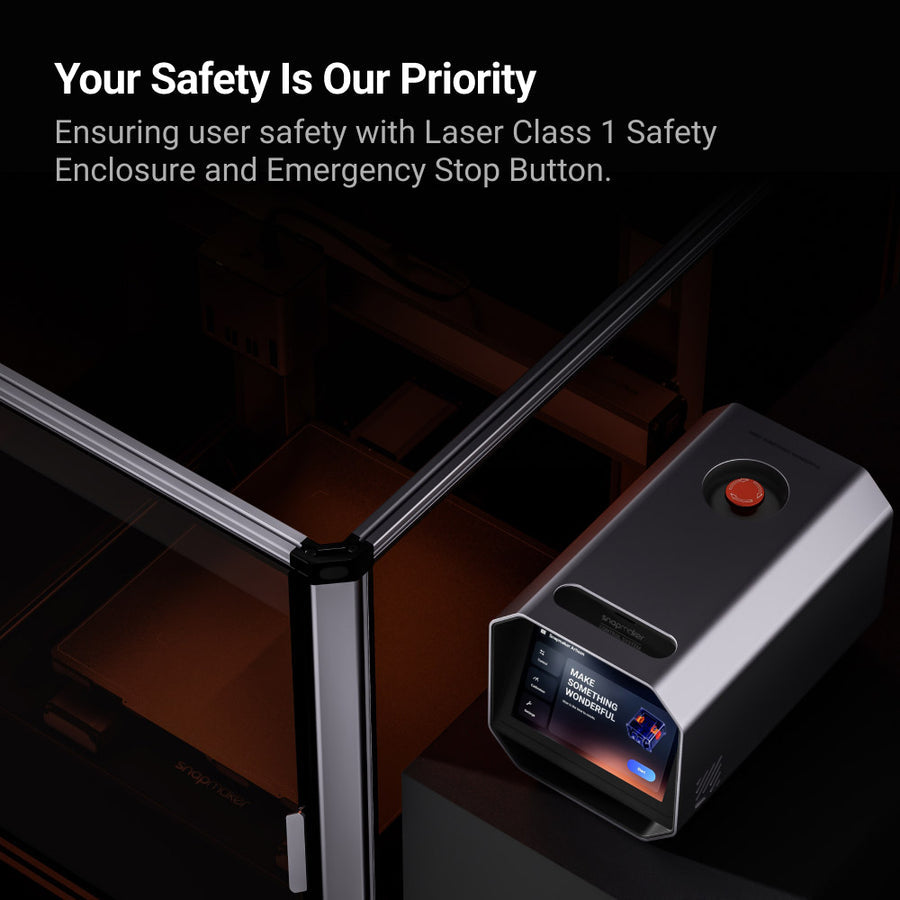

• Laser Class 1 Safety: Laser-proof and Dust-proof Enclosure Included

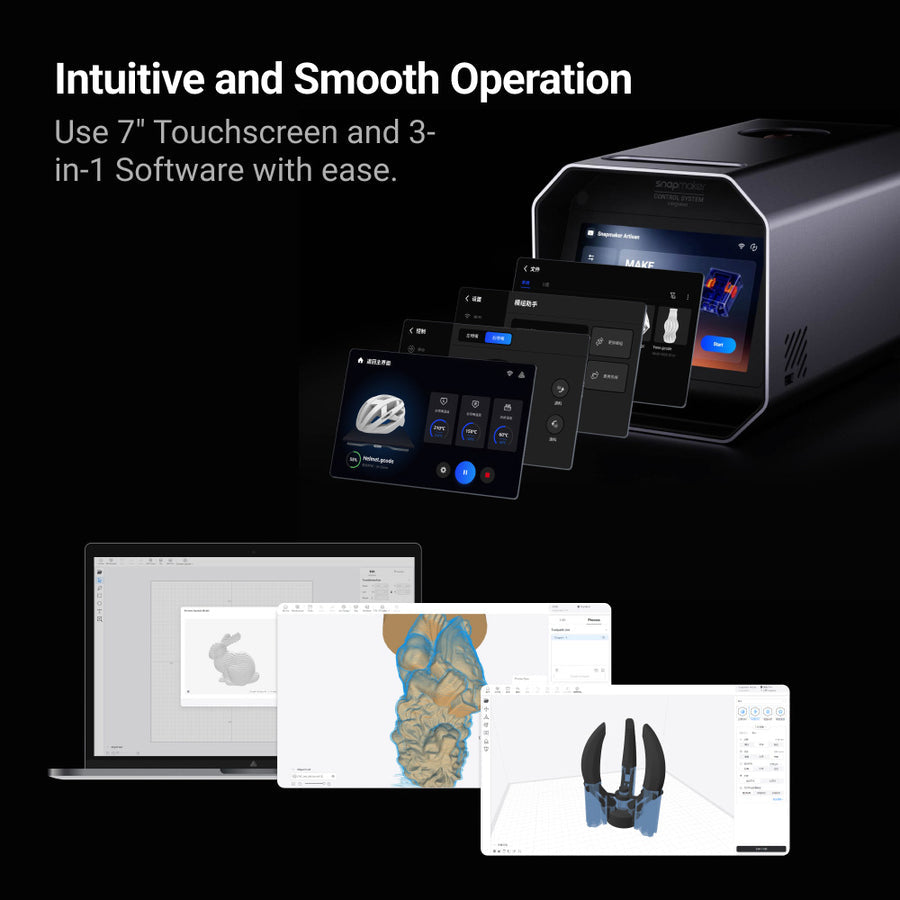

• Easy-to-use: 7" Touchscreen, Free 3-in-1 Software

Specifications:

General

• Dimensions (Machine): 580 mm × 620 mm × 634 mm

• Dimensions (Machine & Enclosure): 665 mm × 943 mm × 705 mm

* The product is sized at 849 mm × 995 mm × 705 mm with filament holders and hose connector mounted. Please take into account the sizes of these parts and the Integrated Controller when estimating the space occupied.

• Package Weight:
  • 37.3kg (Package A)
  •  25.2kg (Package B)
• Package Weight (Artisan Premium):
  • 37.3kg (Package A)

  • 19.5kg (Package B)

  • 1.91kg (Package C)
• Data Transmission Methods: Wi-Fi, USB cable, USB flash drive
• Supported Software: Snapmaker Luban, and third-party software
• OS Supported by Luban: Windows, macOS, Linux (only tested on Ubuntu)

Linear Module

• Motor Driver Chip: TMC2209
• Repeatability: ± 0.05 mm
• X-axis Lead: 40 mm
• Y-axis Lead: 40 mm
• Z-axis Lead: 8 mm

Integrated Controller

• Dimensions: 189 mm × 300 mm × 191 mm

• Touchscreen Size: 7 inches
• Power: 300W + 400W
• OS: Android

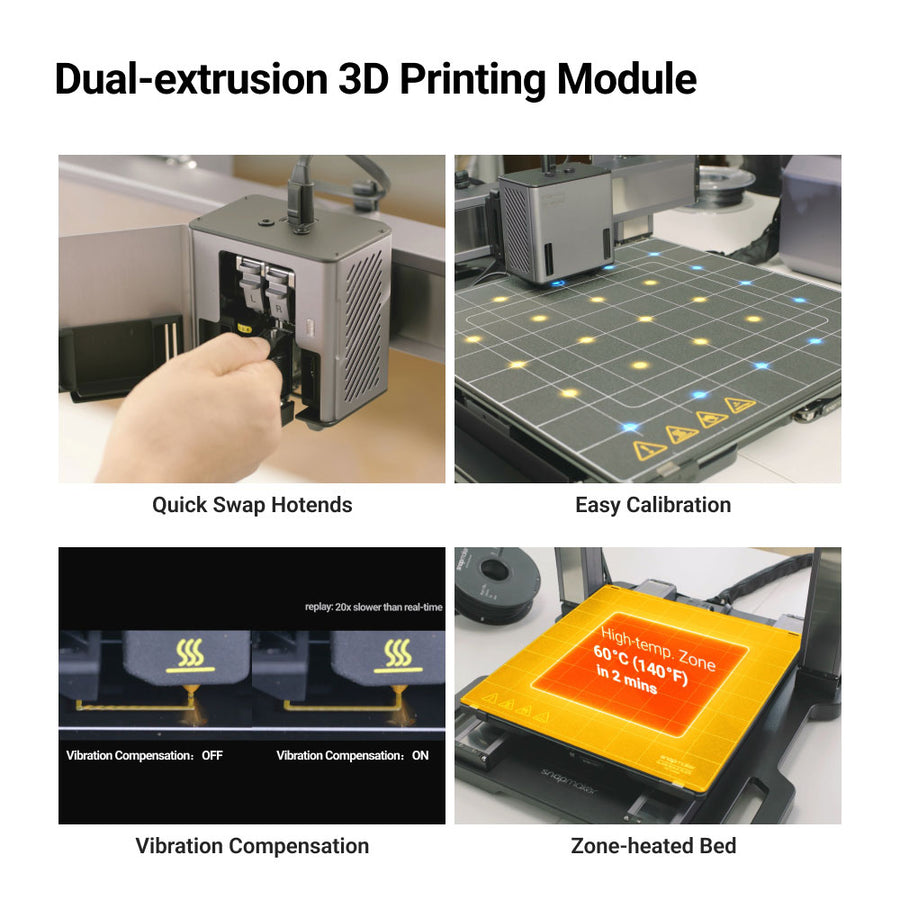

3D Printing

• Work Area (W × D × H):
  • Artisan Dual Extrusion Module: 350mm × 400mm × 400mm (Dual Nozzle)
  • Artisan Dual Extrusion Module: 375mm × 400mm × 400mm (Left Nozzle)
  • Artisan Dual Extrusion Module: 400mm × 400mm × 400mm (Right Nozzle)
  • 2.0 Dual Extrusion Module: 350mm × 370mm × 400mm (Dual Nozzle)
  • 2.0 Dual Extrusion Module: 375mm × 370mm × 400mm (Left Nozzle)
  • 2.0 Dual Extrusion Module: 400mm × 370mm × 400mm (Right Nozzle)
• Nozzle Diameter (Standard): 0.4 mm
• Nozzle Diameter (Optional): 0.2 mm, 0.6 mm, 0.8 mm
• Nozzle Material (Standard): Brass
• Nozzle Material (Optional): Hardened steel
• Max. Nozzle Temperature: 300°C
• Max. Recommended Printing Speed: 180 mm/s
• Build Plate: Double-sided PEI-coated Glass
• High-temperature Zone (Inner Zone): 260 mm × 260 mm
• Max. Heated Bed Temperature (Inner Zone): 110°C
• Max. Heated Bed Temperature (Outer Zone): 80°C
• Supported Materials[2]:
  • PLA, ABS, ASA, PETG, TPU (with hardness ≥ 90 Shore A), Breakaway Support for PLA, PVA, HIPS, and Nylon

  • Carbon Fiber Reinforced Nylon and Glass Fiber Reinforced Nylon (The Hardened 0.4mm Hot Ends are required)
• Supported Formats: stl, obj

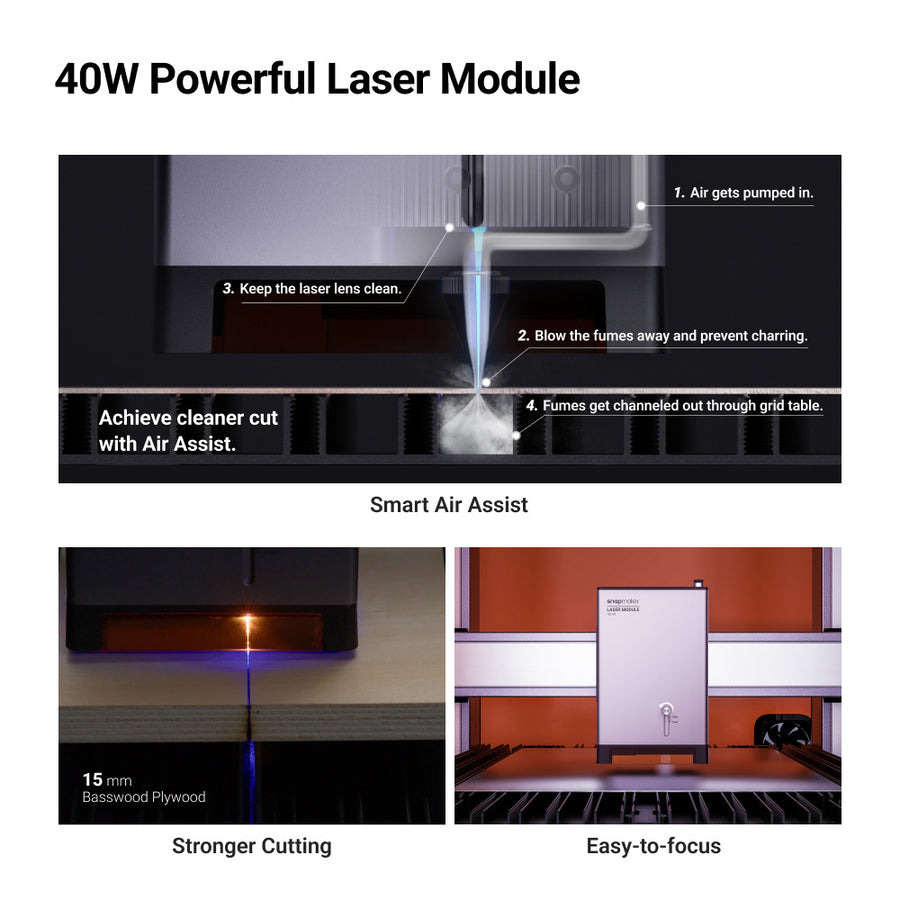

Laser Engraving and Cutting

• Work Area (W × D): 400 mm × 400 mm
• Power: 10W/40W
• Laser Type: 450 nm – 460 nm Semi-conductor
• Max. Engraving Speed: 200 mm/s
• Max. Cutting Depth (Paulownia):
• • 10W: 5mm Basswood Plywood

  • 40W: 15mm Basswood Plywood
• Operating Temperature: 0°C–35°C
• Laser Spot Dimension
  • 10W: 0.05mm × 0.2mm

  • 40w: 0.1mm × 0.15mm
• Supported Materials for Engraving (10W Laser): Painted Metal, SPTE (Steel Plate), Stainless Steel, Anodized Aluminum, Acrylic (Black Opaque), Pinewood, Plywood, Beechwood, Walnut, Bamboo, MDF (Medium-Density Fiberboard), Dark glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Corrugated Fiberboard, Cardboard
• Supported Materials for Engraving (40W Laser): Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Acrylic (Black Opaque), Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF (Medium-Density Fiberboard), Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard
• Supported Materials for Cutting (10W Laser):  Basswood, Paulownia, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded)
• Supported Materials for Cutting (40W Laser): Basswood, Pinewood, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (Blue excluded),Stainless Steel(0.1mm)
• Supported Formats: stl, svg, png, jpg, jpeg, bmp, dxf, snaplzr

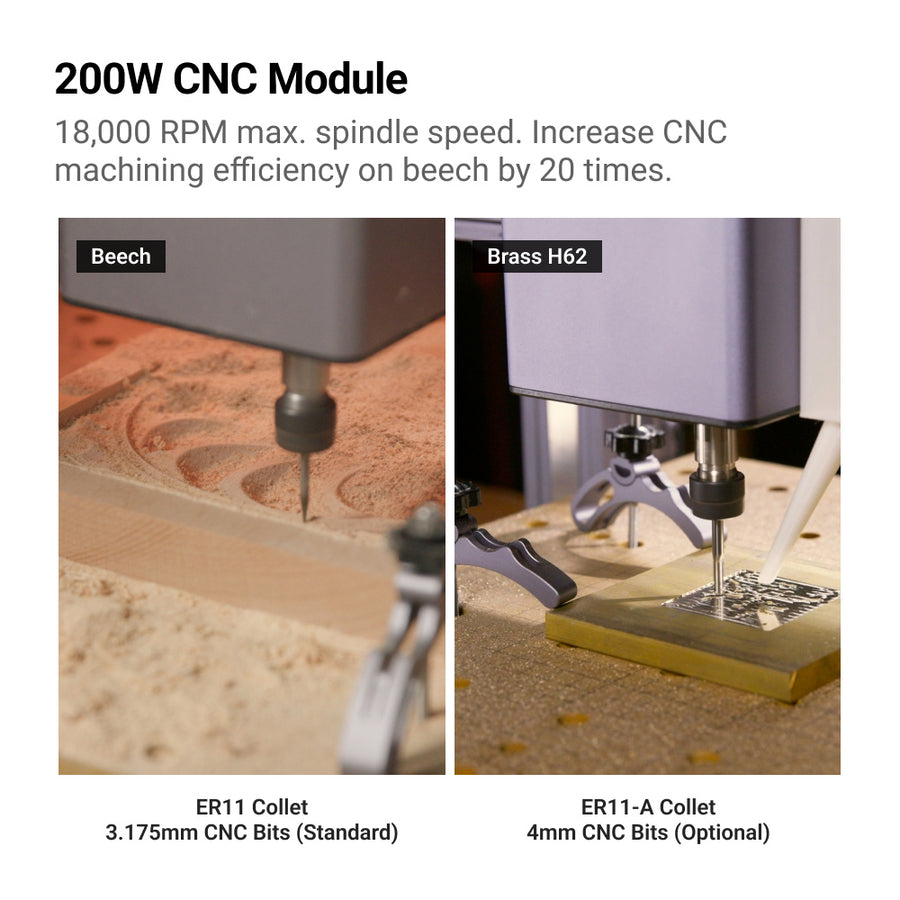

CNC Carving and Cutting

• Work Area (W × D): 400 mm × 400 mm
• Power: 200W
• Max. Spindle Speed: 18,000 RPM
• Max. Work Speed[3]: 50 mm/s (Beech); 33 mm/s (Acrylic)
• Maximum Stepdown: 2 mm (Beech); 1 mm (Acrylic)
• Shank Diameter: 0.5 mm–6.35 mm
• Supported Materials (Ideal): Hardwood (Beech, Walnut), Softwood, HDF, MDF, Plywood, Jade, Carbon Fiber, Acrylic, Epoxy Tooling Board, PCB
• Supported Materials (Capable): Aluminum (1000-6000 Series), Brass
• Supported Formats: stl, svg, png, jpg, jpeg, bmp, dxf
