SNAPMAKER 2.0 DUAL EXTRUSION 3D PRINTING MODULE

Regular price: Price: $499.00
Regular price: List Price: $599.00
Sale price
Unit price: per

Product variants

Free shipping is available to continental United States, and applies to all locations for weight 0 lbs – 70 lbs. Additional shipping charges may apply to Alaska and Hawaii.

Quantity

The SNAPMAKER 2.0 DUAL EXTRUSION 3D PRINTING MODULE

Overall features:

• 3s Hot End Switch

• 300°C Dual Extrusion

• Soluble & Breakaway Supports

• Advanced Materials Printing

• 4-fan Cooling System

• Multi-sized Nozzle Compatibility

• Auto Levelling

• Intelligent Job Recovery

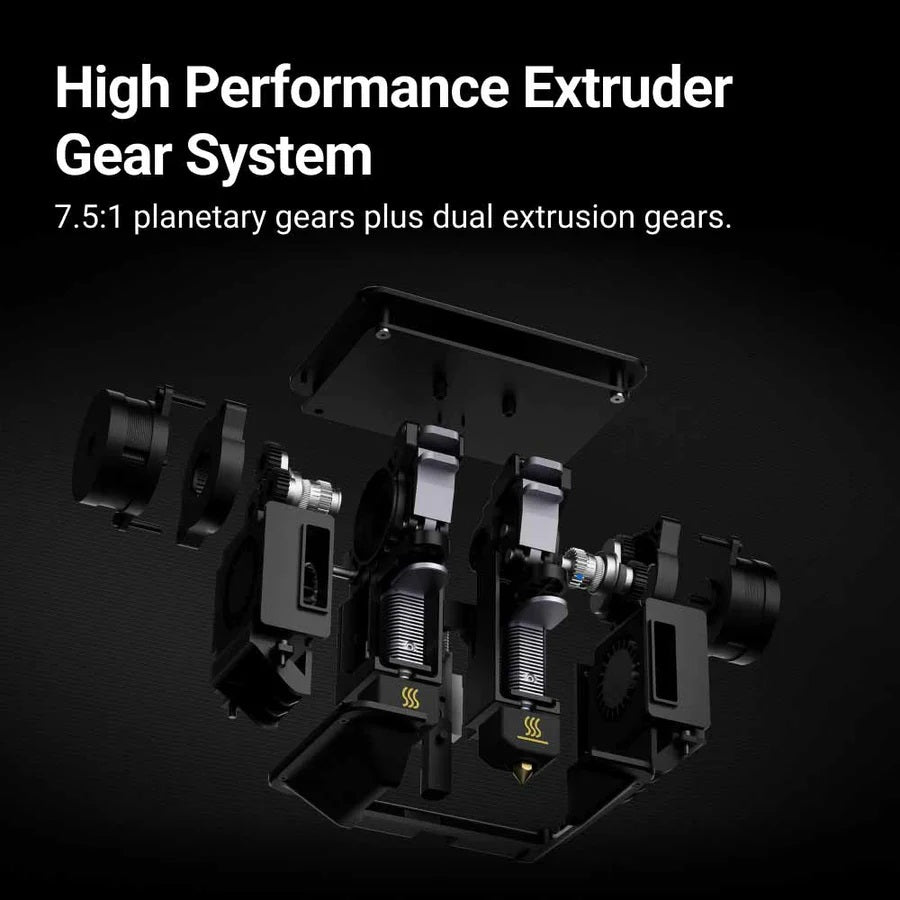

• Direct drive extruder

Compatibility:

• Snapmaker 2.0 A350T/A350/F350

• Snapmaker 2.0 A250T/A250/F250

• Snapmaker 2.0 A150

* 2 hot ends with 0.4 mm brass nozzles are included.

One-year warranty included

Specifications

Dimensions (W × D × H) - 108 mm × 70 mm × 133 mm

Snapmaker 2.0 Dual Extrusion 3D Printing Module

Package Dimensions (W × D × H)

279 mm × 254 mm × 177 mm

Frame Material - Aluminum alloy

Weight - 1.0 kg

Package Weight - 3.2 kg

A150 Build Volume (W × D × H)

135 mm × 140 mm × 110 mm (Dual/ Right Nozzle)
145 mm × 145 mm × 110 mm (Left Nozzle)

A250/A250T/F250 Build Volume (W × D × H)

220 mm × 235 mm × 210 mm

A350/A350T/F350 Build Volume (W × D × H)

310 mm × 325 mm × 290 mm (Dual Nozzle)
310 mm × 330 mm × 290 mm (Left/ Right Nozzle)

Flow - 20 mm³/s

Nozzle Diameter (Standard) - 0.4 mm

Nozzle Diameter (Optional) - 0.2 mm, 0.6 mm, 0.8 mm

Nozzle Material (Standard) - Brass

Nozzle Material (Optional) - Hardened steel

Max. Nozzle Temperature - 300°C

Max. Recommended Printing Speed - 100 mm/s

Supported Materials^[3]

PLA, ABS, ASA, PETG, TPU (Hardness > 90 Shore A), Breakaway Support for PLA, PVA, HIPS, Nylon, Carbon Fiber Reinforced Nylon, Glass Fiber Reinforced Nylon

Supplied Software - Snapmaker Luban (Third-party software supported)

Input Voltage - 24V DC

Operating Temperature - 15°C–30°C

Supported File Formats - stl, obj
