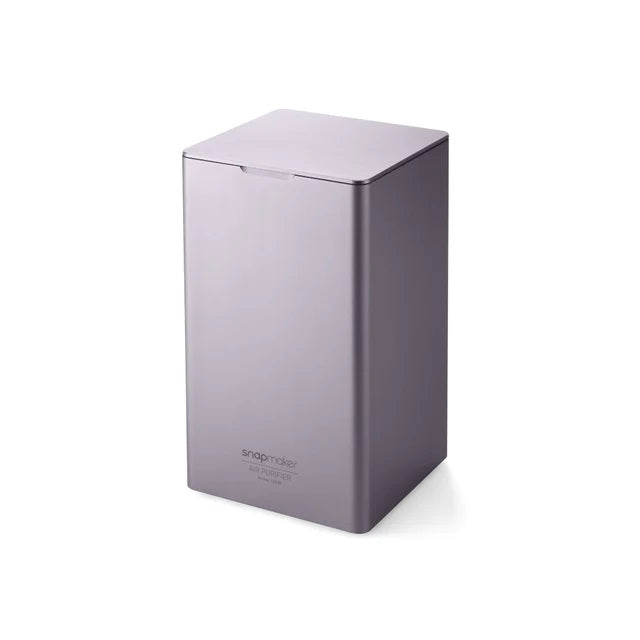

Snapmaker 2.0 Air Purifier

The Snapmaker 2.0 air purifier is made specially for Snapmaker 2.0 product series. It's able to remove PM and VOCs released to the air during 3D printing and laser engraving process, ensuring the safety of its users. The Air Purifier must be used in combination with Snapmaker 2.0 Enclosure.

The Snapmaker 2.0 Air Purifier is compatible with Laser Engravers such as the Snapmaker Artisan, Snapmaker 2.0 and Snapmaker Ray.

Overall features:

• Tailor-made Filter Cartridge for PM and VOCs filtration
• High filtration efficiency of 95.9% for PM0.3
• Real-time monitoring on the Filter Cartridge status and lifespan
• Fan speed control
• Color Status Light
• Consistent full-metal design

Compatibility:

• Snapmaker Artisan
• Snapmaker 2.0
• Snapmaker Ray

The Air Purifier must be used together with the Enclosure.

One-year warranty included.

Snapmaker 2.0 Air Purifier - Make Fresh Air

A New Level of Air Safety

Chemicals such as PM (Particle Matters) and VOCs (Volatile Organic Compounds) can be released when you 3D print with or laser engrave on certain types of materials. You can further filter them with a Snapmaker 2.0 Air Purifier.

The Exact Filter Cartridge You Need

 Tailor-made filter cartridge for your Snapmaker 2.0, with five layers of different filters consolidated into one, it is designed to absorb what's actually emitted during laser engraving or 3D printing process.

G4 Filter for Coarse Filtration

Aims at relatively bigger particles (≥ 5 μm in diameter). It filters out more than 90% of PM10 and PM5.

F9 Filter for Finer Filtration

Works at particles that measure 1 μm or above in diameter. It filters out more than 95% of PM10, PM5 and PM2.5.

Customized Activated Carbon Filter

A dense pack of activated carbon is also added to absorb VOCs that no other filters can capture. Unpleasant odor is no longer a problem.

Ultra-dense HEPA H13 Filter

Two layers of 70 mm-thick HEPA H13 filter as the final stage gate. They are able to trap up to 99.97% of airborne particles of all sizes, including PM0.3 that are known to be the most penetrating particles in the air.

Long Live the Filter Cartridge

Efficiency is not all that matters. The different levels of filter are arranged in certain order inside the cartridge to maximize its lifespan, so that you won't need to replace the cartridge until it gets fully used.

Filter Life Detection

Snapmaker 2.0 carries out a real-time monitoring on the Filter Cartridge and shows its lifespan on the Touchscreen. It lets you know when it's time to pop in a new one.

Fan Speed Control

Tap on the Touchscreen to set fan speed for different types of job.

Specifications

Snapmaker 2.0 Air Purifier



Main Unit Dimensions (W × D × H)

240 × 271 × 420 mm
(With Air Outlet Connecter)



Main Unit Weight 8.8 kg

Air Inlet Diameter 70 mm

Air Volume 150 m³/h

Cable Length 2,000 mm

Clamp Diameter 65–89 mm

Filter Cartridge Dimensions (W × D × H) 191 × 229 × 308 mm

Filter Cartridge Lifespan^[4] Approx. 3 months

Filter Cartridge Weight 2.4 kg

Filtration Efficiency (0.3–0.5 μm)^[5] 95.9%

Hose Dimensions (Diameter × L) 75 × 2,000 mm

Input Voltage AC 100 V – 240 V

Maximum Noise (With Hose) 65 dB

Package Dimensions (W × D × H) 316 × 360 × 595 mm

Package Weight 12.7 kg

Power Cord Length 2,000 mm

Rated Current 5A

Rated Power 120 W

Rated Voltage 24 V DC

Operating Temperature 0°C–35°C

Storage Temperature -4°Cto –45°C

Outer Shell Material Aluminum alloy

Approvals CE, FCC, UL62368, IC, RCM, ROHS, WEEE
