Scara Elite Roadrunner Cement 3D Printer

Regular price: Price: $45,500.00
Regular price: List Price: $49,999.00
Sale price: Price: $45,500.00
Unit price: per

Size 1980mm Z rail (Std) - 890mm Distal arm (Std) - 4000mm Track (Std) 1980mm Z rail (Std) - 890mm Distal arm (Std) - 6000mm Track (Extended) 1980mm Z rail (Std) - 1070mm Distal arm (Extended) - 4000mm Track (Std) 1980mm Z rail (Std) - 1070mm Distal arm (Extended) - 6000mm Track (Extended) 2440mm Z rail (Extended) - 890mm Distal arm (Std) - 4000mm Track (Std) 2400mm Z rail (Extended) - 890mm Distal arm (Std) - 6000mm Track (Extended) 2440mm Z rail (Extended) - 1070mm Distal arm (extended) - 4000mm Track (Std) 2440mm Z rail (Extended) - 1070mm Distal arm (extended) - 6000mm Track (Extended)

Product variants

Free shipping is available to continental United States, and applies to all locations for weight 0 lbs – 70 lbs. Additional shipping charges may apply to Alaska and Hawaii.

Quantity

Best Prices Online - Scara Elite Roadrunner Cement 3D Printer V2, combined with our Roadrunner track. It adds another axis of control, allowing you to make even larger creations, such as full size structures and walls. Include a pump and you are ready to start printing.

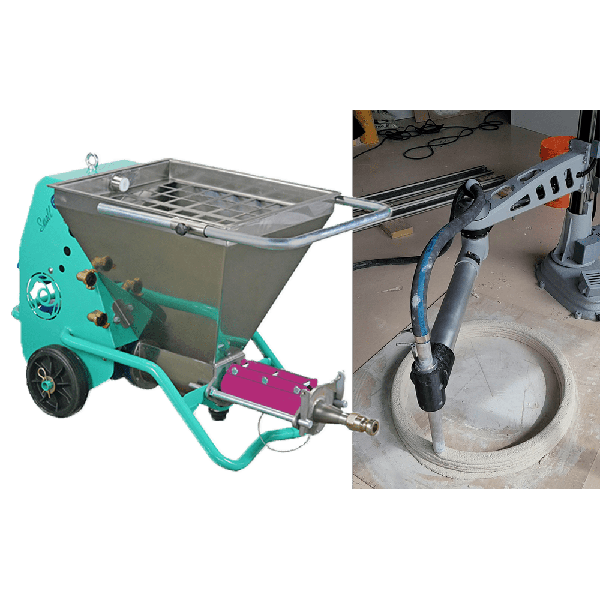

The Scara Elite is designed to work with a pumping system, such as our Small 50 Pump and Continuous Cement Mix Station.

User Interface (WiFi)

Duet Web Control is a fully developed UI for the Scara. Opened in a web browser, it can be used on your laptop, tablet, phone, or other WiFi capable device.?ÿ

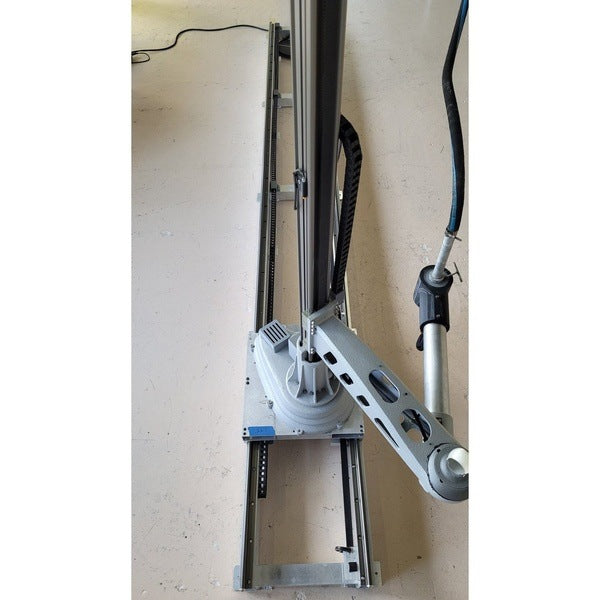

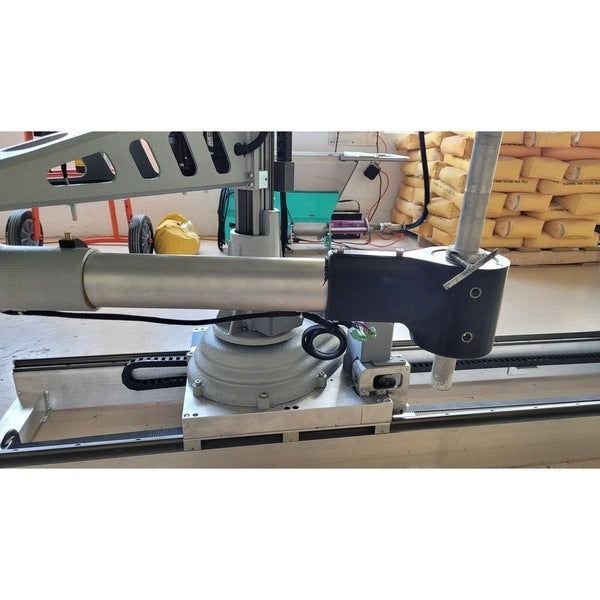

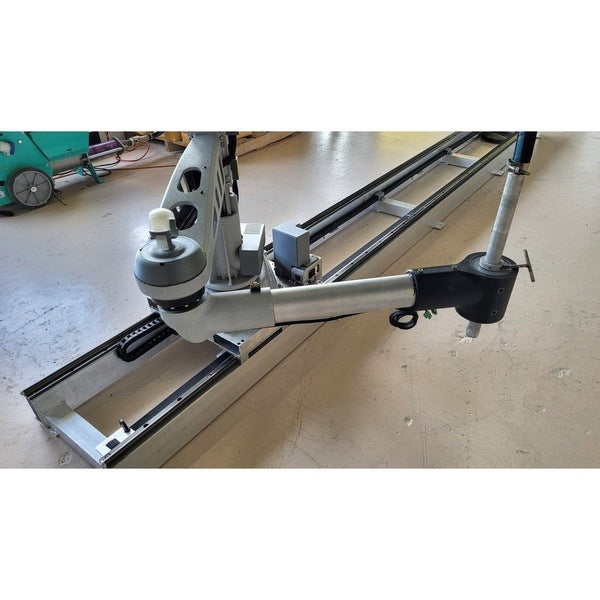

The Scara Elite Roadrunner Cement 3D Printer combined with our Roardrunner rail system provides an industrial size print area. You can print full structures and walls using our pump system. There is no limit to your creations with this machine.

What's included:

1. Scara Elite Roadrunner Cement 3D Printer v2 and Roadrunner Rail System

2. Power Supply

4. Hex key set

Specifications

Printing Envelope:
X- 248” (6300mm)
Y- 110” (2800mm)
Z- 68” (1727mm)

Minimum Printing Envelope:
X- 157" (4000 mm)
Y- 39" (1000 mm)

Printer size:
W-22” L-162” H-95”
Maximum Operational space needed: W-116” L-278” H-100”
Weight with rail system: ~120lbs. (~54kg)

Average speed: 1.2’’ to 3.9’’/s (30 to 100 mm/s)
Power Supply: Output - 24V ~15 amps, Input - 110-220V, 50-60 Hertz
Power consumption: 24V ~10 amps, ~240 Watt
Main controller board running Duet3D with Atmel SAM4E8E: 120 MHz ARM Cortex-M4

Full control through web interface, no apps or software installation. Non-WiFi versions are available, please contact us if you would like this type of connection (Ethernet connection).

* http://www.igus.com
Some components may be re-manufactured
** https://en.wikipedia.org/wiki/Harmonic_drive

Print Status

Once a print is started, it shows information about the model being printed. Layer times, estimated time remaining, file information, and more are available for view. It also allows for print and extrusion speed control to be adjusted in real time.

G-Code Files

The G-Code Files page allows g-code files for printing to be uploaded, edited, or downloaded. A summary of the file is given such as size, layer height, and what the file was generated by.
