nano3Dprint MatDep Pro - Independent Motion 3D Multi Materials Printer

Best Prices Online - The MatDep Pro will Revolutionize your 3D printing experience with the nano3Dprint MatDep Pro Independent Motion 3D Multi Materials Printer and add conductive and functional ink into a 3D design in a single pass. With groundbreaking innovation, it features an FDM extruder and a materials dispensing system, each equipped with independent motion.

Features - nano3Dprint MatDep Pro

Key Features - nano3Dprint MatDep Pro - Independent Motion 3D Multi Materials Printer

• Print Electronics

  Make PCBs. Wearable technologies. Conductors. Solar Cells. Flexible electronics. And beyond.

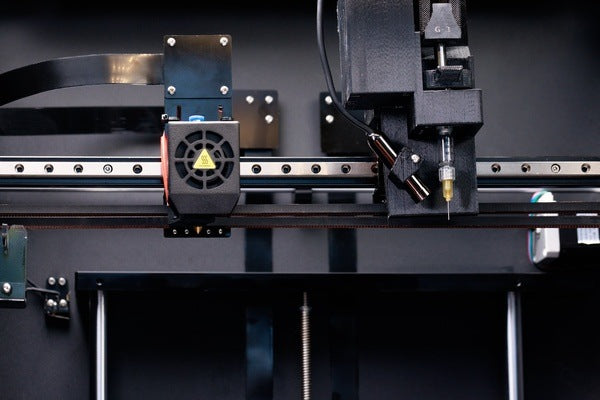

• Independent Motion Technology

  The FDM extruder and a materials dispensing system are each equipped with independent motion. The independently moving print heads are cleaned off after each use, eliminating cross-contamination and delivering better print quality, speed, and reliability.

• Use a Wide Range of Substrates

  Print on a wide range of substrates, sizes, or shapes to a depth of 1 cm.

• Video Inspection System

  Monitor your multi-material 3D printing progress in real-time from your device to ensure your high resolution 3D designs print perfectly.

• Enjoy Accurate 3D Prints

  Achieve accuracy in layer height, surface finishing, tolerance, and roundness.

• Simple To Use

  Control the A2200 from your computer, smartphone or the full-color touch screen. It's compatible with USB, SD card, and flash drive for direct printing.

Specifications - nano3Dprint MatDep Pro - Independent Motion 3D Multi Materials Printer

• Two Printheads

  Optimized Print Heads: FDM Extruder and Materials Dispensing System

• Independent Motion

  The extruder and materials dispensing system assemblies move independently. Both print heads are automatically wiped cleaned after use.

• The FDM Extruder (Print Head 1) 3D Prints:

  PLA, ABS, PETG, POM, Nylon (PA), PC, Carbon Fiber filament, Dissolvable filament (PVA, HIPS), and Flexible filament (TPU, PLA+)

• The Materials Dispensing System (Print Head 2) 3D Prints:

  Functional Pastes and Inks, Conductive Nano- Particle Inks, Resistive, Dielectrics, Magnetic, Thermo-Electric, Photovoltaic, and Graphene Solutions

• Resolution

  Achieve a resolution of 200-microns, and attain even finer resolutions of up to 100-microns with specialty tips on the materials dispensing system.

• Materials Dispensing System Viscosity Range

  Works with all inks and pastes with viscosities ranging from 1mPa·s to 54000 mPa·s

• Materials Dispensing System Syringe Size

  3 ml

• Materials Dispensing System Nozzle Size

  14 to 30 Ga (1.6mm to 150μm) Higher Resolution Available: 30 Ga, 32 Ga, 34 Ga

• FDM Extruder Size

  0.4 mm (1.75 mm filament)

• Large Format Build Volume

  360x250x200mm or 14.17 x 9.84 x 7.87 inches

• Industrial Linear Guide

  Stable and precise movement control

• Continue Printing After Power Cut

  Yes

• Video Inspection System

  Real-time magnifying video inspection system for more precise adjustment control of the dispensing system.

• Machine Dimensions

  630 x 430 x 625 mm

• Machine Weight

  ~ 92.5 lbs.

• Max. Heat Bed Temperature

  Max 120C

• Printing Temperature

  Max 260C

• Printing Speed

  20-200 mm/s

• Max. Extruder Flow Rate

  24 cc/hour

• Positional Accuracy

  XY axis: 0.011 mm and Z axis: 0.0025 mm

• Extrusion Layer Thickness

  0.1-0.3 mm

• Stage Material

  Flexible Magnetic Build Mat

• Software / File Format / Operating System

  Compatible with Repetier-Host, Cura, Makerware, Simplify3D / STL and GCODE / Windows, Mac, Linux

• Connectivity

  USB/SD and Card/WiFi
