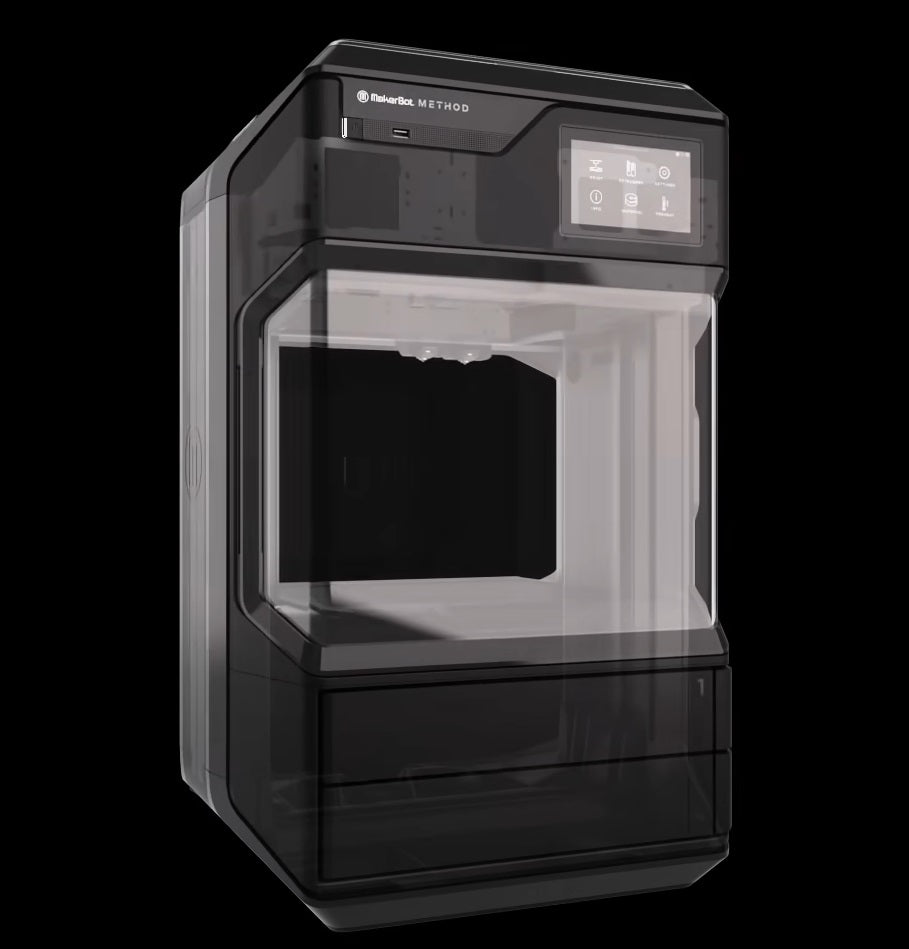

MakerBot METHOD 3D Printer - Carbon Fiber Edition

Regular price
Price: $5,498.00
Regular price
List Price: $5,999.00
Sale price
Price: $5,498.00
You save: $501.00 (8%)

 Free shipping is available to continental United States, and applies to all locations for weight 0 lbs – 70 lbs. Additional shipping charges may apply to Alaska and Hawaii.

SKU:

View Cart

Best Prices Online - MakerBot METHOD 3D Printer - Carbon Fiber Edition! Print engineering-grade composite parts with the METHOD 3D Printer Carbon Fiber Edition from MakerBot. Using carbon fiber reinforced nylon materials, you can produce strong, heat-resistant components that are optimized for structural applications and metal replacements. This unique industrial composition makes this 3D printer ideal for anyone who wishes to produce durable manufacturing-grade parts with advanced engineering materials.

Strong, Heat-Resistant Metal Replacement Parts
Carbon fiber reinforced nylon is optimized for high strength, stiffness, and heat resistance making it ideal for structural applications and metal replacements.

  • Excellent strength to weight ratio - 110 MPa TS - for lightweighting applications such as robotic end effectors
  • Engineering-grade stiffness - 7600 MPa Tensile Modulus - for structural applications such as vehicular brackets and inspection gauges
  • High heat resistance under load - 184°C HDT - for optimal under-hood and tooling applications

Superior Nylon Carbon Fiber Parts with METHOD
METHOD’s unique industrial feature set produces carbon fiber parts with superior three dimensional strength and accuracy

  • METHOD’s Heated Chamber delivers parts that are strong and accurate.
  • Outstanding surface finish that hides layer lines thanks to METHOD’s Ultra-Rigid Metal Frame.
  • Print the most complex geometries including internal cavities with soluble support, or use breakaway support for faster print times.
  • METHOD’s sealed filament bays help keep the material dry, resulting in better print quality and reliability, and METHOD’s pre-print spool drying feature allows for the recovery of oversaturated filament.



Specifications

Printer
Print Technology
Fused Filament Fabrication (FFF), Marketed as Fused Deposition Modeling (FDM)
Build Volume
7.5 x 7.5 x 7.7" / 19.1 x 19.1 x 19.6 cm (1 Extruder)
6 x 7.5 x 7.75" / 15.2 x 19.1 x 19.7 cm (2 Extruders)
Number of Extruders
2
Layer Resolution
20 to 400 micron / 0.02 to 0.4 mm
Supported Extruder Nozzle Diameter
0.4 mm (Included)
Print Speed
500 mm/s
Filament Compatibility
ABS, ASA, Nylon, PETG, PLA, PVA, SR-30, Tough PLA
Build Area
Build Area Type
Enclosed
Extendable
No
Monitoring Camera
Yes
Connectivity
System Connection
1 x USB-A
1 x RJ45
Media/Memory Card Slot
No
Software
OS Compatibility
Windows 7
Windows 10
macOS 10.9 or Later
*As of January, 2021: Check with manufacturer for the most up-to-date compatibility
Supported 3D File Types
.igs, .makerbot, .obj, .stl, .stp
General
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 1.6 to 3.9 A
Operating Temperature
59 to 78°F / 15 to 25°C
Operating Humidity
10 to 70%
Storage Temperature
32 to 100°F / 0 to 37°C
Dimensions (W x H x D)
16.3 x 25.6 x 17.2" / 41.4 x 65 x 43.7 cm
Weight
65 lb / 29.5 kg (without Filament)

 Included:

  • 1 MakerBot METHOD X 3D Printer
  • 1 Spring Steel Build Plate
  • 1 Composite Extruder
  • 1 Performance Extruder 2XA Support
  • 1 Performance Extruder 2 Support
  • 1 Nozzle Brush
  • 1 Hex Key
  • 1 USB A-to-B Cable
  • 1 US Power Cord
  • 1 EU Power Cord
