FELIX Pro v3.0 3D Printer

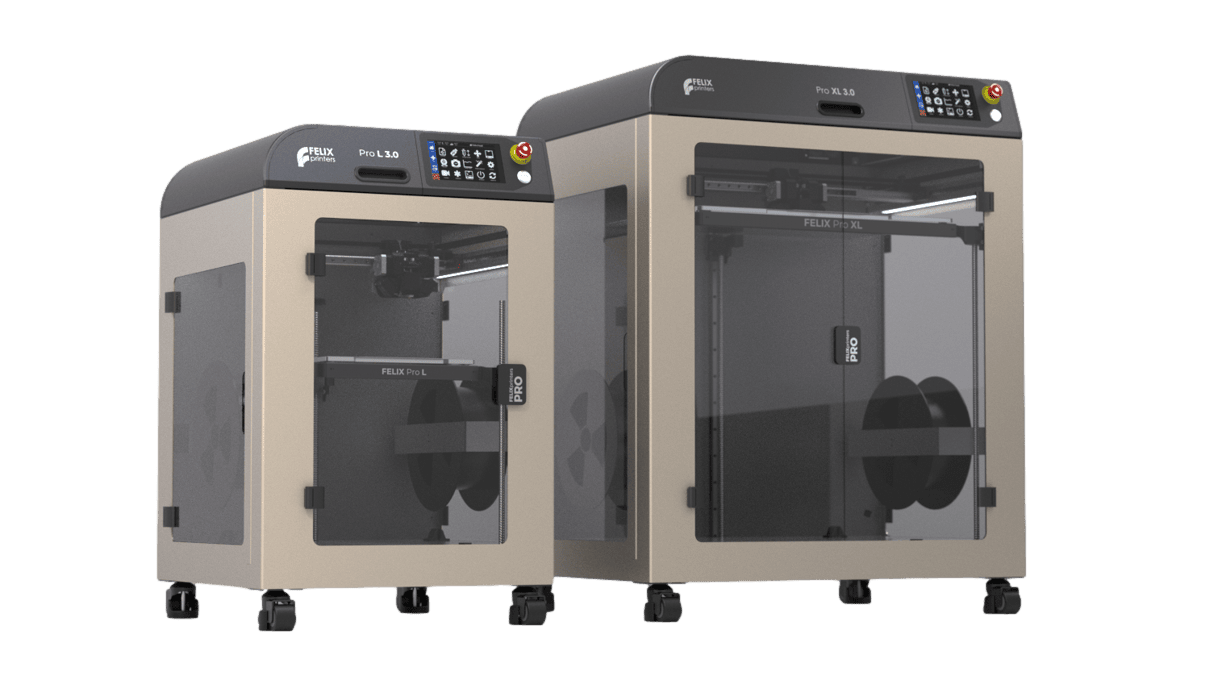

The FELIX Pro L & XL additive manufacturing systems have been designed to perform at scale, and both 3D printers have been constructed to ensure reliable output for much larger parts. These are manufacturing tools for every stage of the product development and manufacturing workflow with an optimal price | performance ratio.

Key things to know about the PRO L and XL:

✓ Large volume builds up to 144 liters
✓ Intelligent no-power detection for avoiding print failure
✓ Industrial quality 3D prints for prototyping and design
✓ Faster operations and ease of use with 7” touch screen

This 3D printer is handmade to order in our own factory in Europe. Our printers are enabled for modular upgrades in the future, ensuring an extensive lifespan.

Large build sizes with unmatched ease of use
Benefit from the advantages of additive manufacturing, without the hassle. The Pro L & XL offer unmatched ease of use for professional large volume 3D printing.

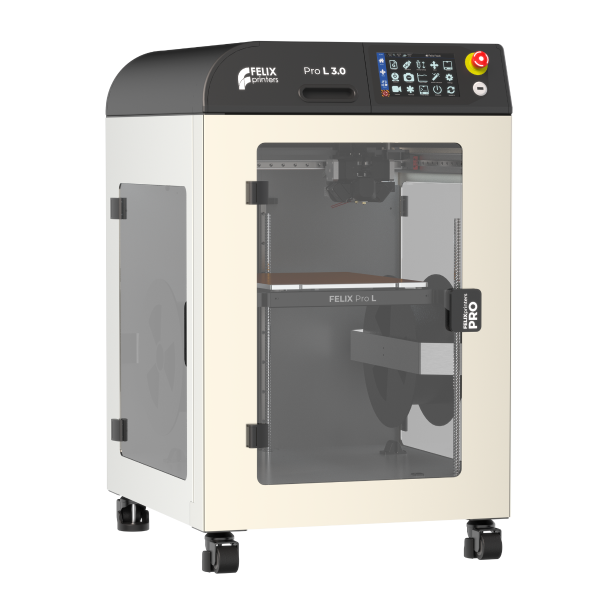

Pro L building size: 300 x 400 x 400 mm or 11.8” x 15.75” x 15.75”

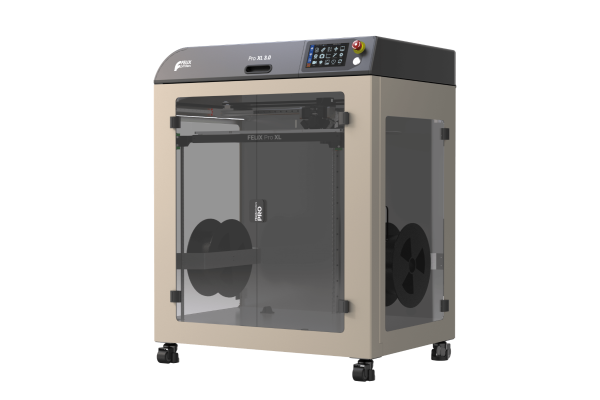

Pro XL building size: 600 x 400 x 600 mm or 23.62″ x 15.75″ x 23.62″

Preventing print failure at all times
During printing the flow of the print material is fully controlled to avoid missing print layers or printing in thin air.

Visual (remote) control
With the touchscreen, the printer can be accessed via USB and/or WiFi and the unit can be connected in a network or standalone. In a network the unit can control up to 7 stations. This enables you to take full control of your 3D printer, and increase efficiency in your workflow.

Lead time approx. 6-8 weeks

Technical Specifications

Build size (LxWxH)
Pro L: 300 x 400 x 400 mm or 11.8” x 15.75” x 15.75”
Pro XL: 600 x 400 x 600 mm or 23.62" x 15.75" x 23.62"

Build volume:
Pro L: 48 Liter / 12.7 Gallon
Pro XL: 144 Liter / 42 Gallon

Filament (open source): 1.75 mm (tolerance +/- 0.05 mm)

Filament Materials: PLA, ABS, PETG, PVA, FLEX, Carbon ber, Nylon, Glass, Wood ll

Nozzle diameters:
Brass (standard): 0.35 / 0.50 mm
Hardened Steel (optional): 0.25 / 0.35 / 0.50 / 0.70 mm

Print Speed (mm / sec): Up to 100 mm/sec (60 mm/sec is recommended)

Positioning accuracy XYZ: 0.01 mm

Layer thickness in mm: 0.05 mm to 0.35 mm or 50 micron to 350 micron

Nozzle temperature: Up to 275 degrees Celsius

Heated bed construction: Solid casted & milled high precision aluminum

Up to 110 degrees at environmental temperature > 20 degrees C

Control panel: 7” Touch screen, with intuitive menu structure, available in English, German, Dutch, Spanish and others.

Operating system: Windows, Mac OS

Connectivity options: WIFI, USB, LAN

Software: (Included)

Simplify3D - All pre-settings have to be downloaded from www.felixprinters.com/downloads

Electrical: 110 up to 240 volts AC, 50/60 Hz Max 1600 Watt.

Physical dimensions (LxWxH):
Pro L: Overall printer dimensions: 600 x 666 x 776 mm or 24” x 26” x 31”
Pro XL: Overall printer dimensions: 906 x 666 x 966 mm or 37” x 26” x 38”


Total weight [kg]:
Pro L: approx. 63 kg
Pro XL: approx. 80 kg

Operating temperature: 15 to 30 degrees Celsius

Noise level: Less than 40 dBA

Inside the box:
Comes with: Tweezers, set Te on tubes, USB cable, USB stick, LAN cable, Filament spool holders, Spool of PLA lament, Quick Start Manual.
