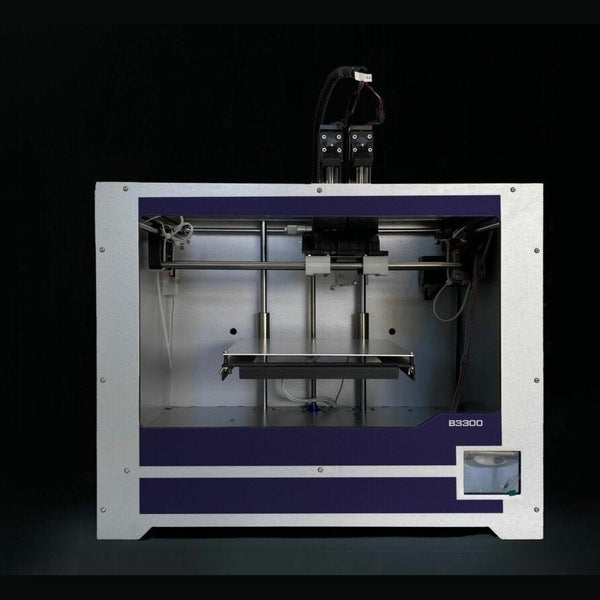

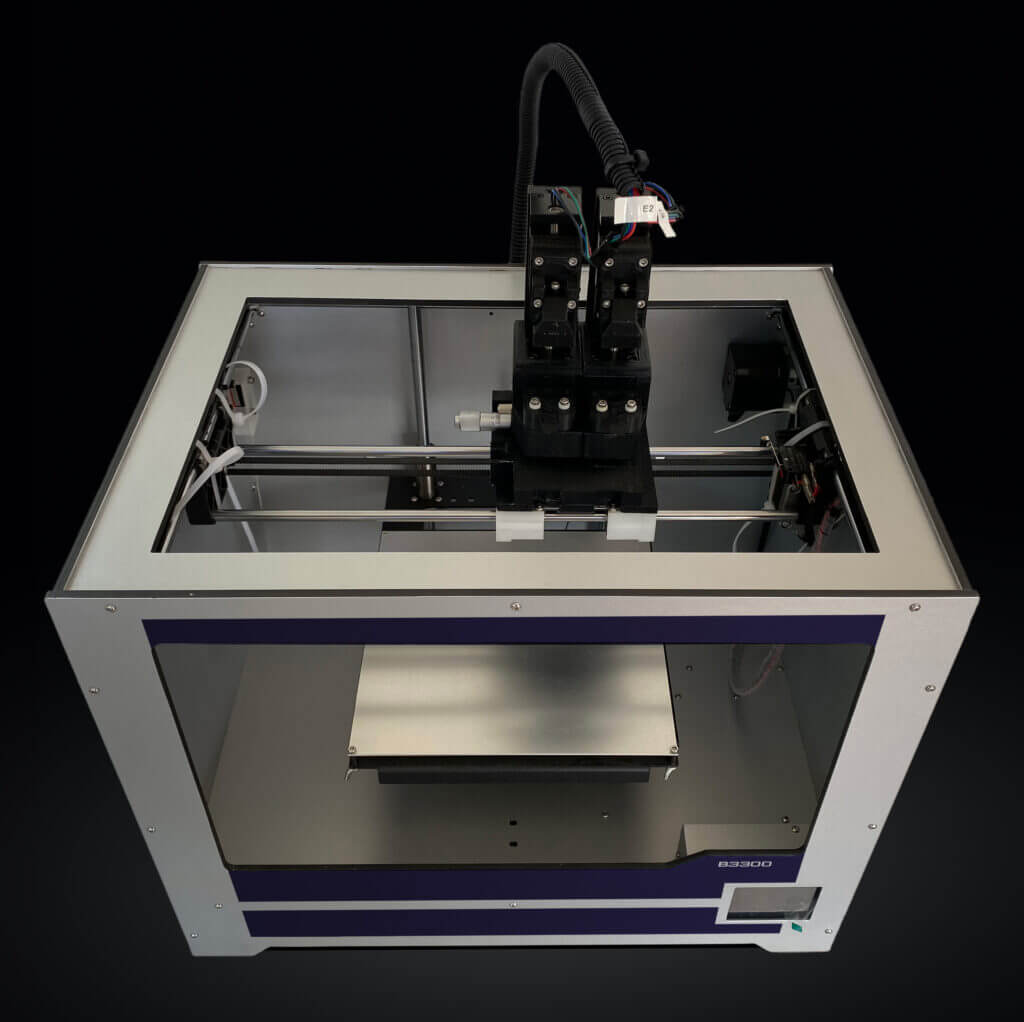

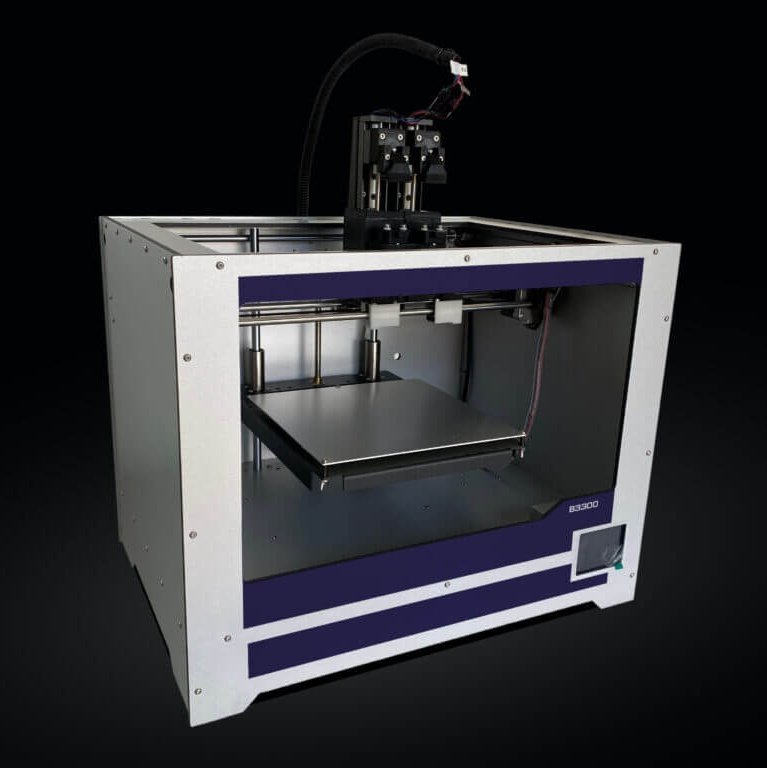

nano3Dprint B3300 Dual-Dispensing 3D Printer

• Print Electronics

  Make wearables, sensors, and other electronics with our dual proprietary materials dispensing system. 3D print flexible electronics.

• Use a Wide Range of Substrates

  Print on a wide range of substrates, sizes, or shapes to a depth of 1 cm.

• Benchtop Sized

  Print from the comfort of your private workspace.

• Video Inspection System

  Monitor your printing progress in real-time from your device to ensure your high resolution 3D designs print perfectly.

• Enjoy Accurate 3D Prints

  Achieve accuracy in layer height, surface finishing, tolerance, and roundness.

• Simple To Use

  Control the nano3Dprint B3300 Dual-Dispensing 3D Printer from your computer, smartphone or the full-color touch screen. It's compatible with WIFI, USB, SD card, and U disk for direct printing.

Specifications - nano3Dprint B3300 Dual-Dispensing 3D Printer

• Two Printheads

  Side-by-side Dual Materials Dispensing System

• The Materials Dispensing System 3D Prints:

  Functional Pastes and Inks, Conductive Paints, Fast Drying Solvent Based Inks, Silver Nano-Particle Inks, Graphene solutions, and much more... Use materials such as conductive inks (Au, Ag, Cu, etc.), medical-grade silicone, polyurethane rubber and plastics, rigid and flexible urethane foams, epoxies, and UV-curable polymers.

• Materials Dispensing System Viscosity Range

  Works with all inks and pastes with viscosities ranging from 1mPa?ús to 54000 mPa?ús. This is a low to high viscosity electronics printer.

• Resolution

  Achieve a resolution of 200-microns, and attain even finer resolutions of up to 100-microns with specialty nozzles.

• Syringe Size

  3 ml

• Nozzle Size

  14 to 30 Ga (1.6 mm to 150 ?¬m) Higher Resolution Available: 32 Ga, 34 Ga

• Build Volume

  214 x 186 x 160 (mm) 8.4 x 7.3 x 6.3 (in)

• Video Inspection System

  Real-time magnifying video inspection system for more precise adjustment control of the dispensing system.

• Machine Dimensions

  467 x 357 x 374 mm

• Machine Weight

  13 kg (28.66 lbs.)

• Max. Heat Bed Temperature

  100?øC

• Max. Axis Moving Speed

  125 mm/s

• Max. Nozzle Flow Rate

  15 cc/hour

• Positional Accuracy

  XY axis: 0.011 mm Z axis: 0.0025 mm

• Printing Layer Height

  0.05-0.3mm

• Stage Material

  Removable Glass Heated Bed

• Software / File Format / Operating System

  Compatible with Repetier-Host, Cura, Makerware, Simplify3D etc. / STL, GCODE, OBJ, DAE, AMF, BMP, JPG, JPEG, PNG / Windows, Mac, Linux

• Connectivity

  Direct print with SD card using full-color touch screen (recommended); Flash Drive

Included

One nano3Dprint B3300 Dual-Dispensing 3D Printer ( Multi-material Electronics Printer)
General Tools & Materials:
Allen Wrench (2 sizes)
Allen Wrench (key type, x3)
Screw Driver (x1)
Tweezer (x1)
Two Screws (for dispenser installation)
Dispenser/Syringe Adapter & Clamps for Plastic Syringe (x2)
Dispenser/Syringe Adapter & Clamps Glass Syringe (x2)
Empty Plastic Syringes (x5)
Syringe Caps (x5)
Transfer Adapters (x5)
Bed Clips (1 set)
Power Cable
Glass Bed
Dual Dispensing System
Video Monitoring System
Simplify3D Software License
