AlgoLaser Delta 40W Diode Laser Engraver
- Regular price
- Price: $1,299.00
- Regular price
- List Price: $1,999.00
- Sale price
- Price: $1,299.00
- Unit price
- per
Free shipping is available to continental United States, and applies to all locations for weight 0 lbs – 70 lbs. Additional shipping charges may apply to Alaska and Hawaii.
SKU:
Couldn't load pickup availability
PRODUCT DESCRIPTION

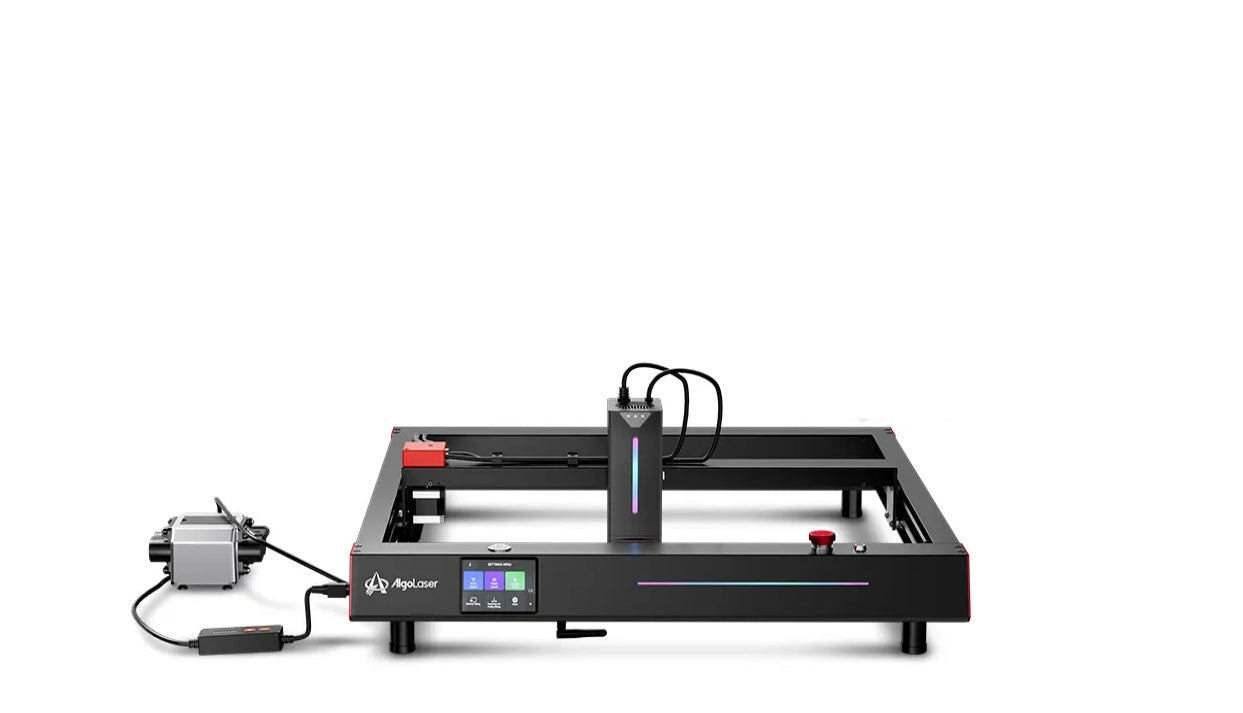

The AlgoLaser Delta 40W is a Smart Laser Cutter and Engraver for Woodworking!

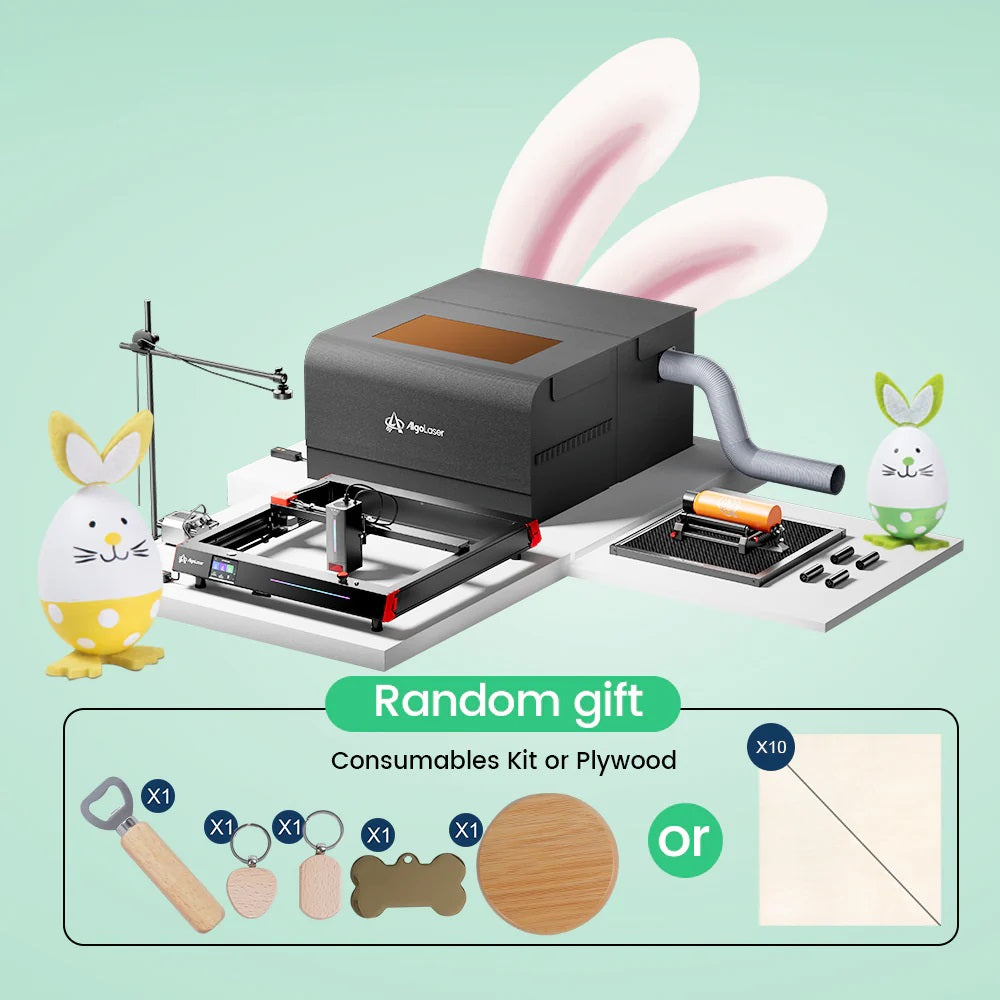

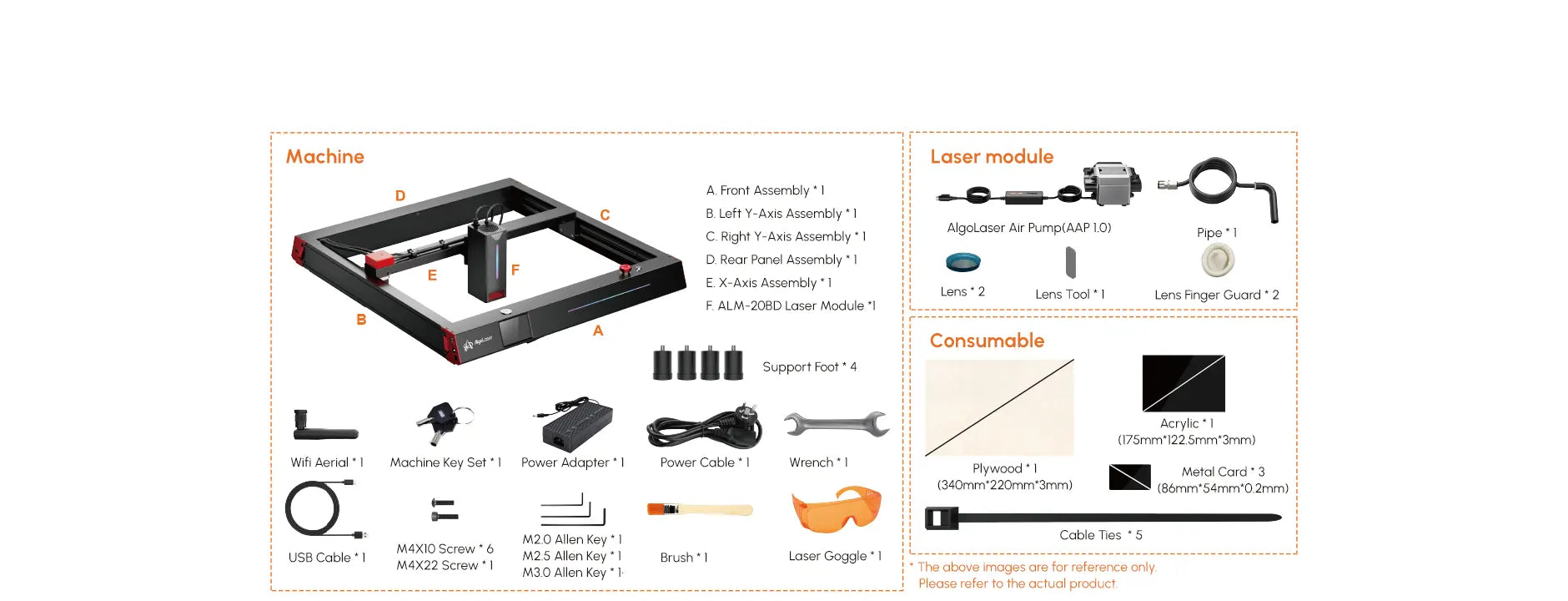

AlgoLaser Delta 40W Bundle comes with the following (as seen in photo):

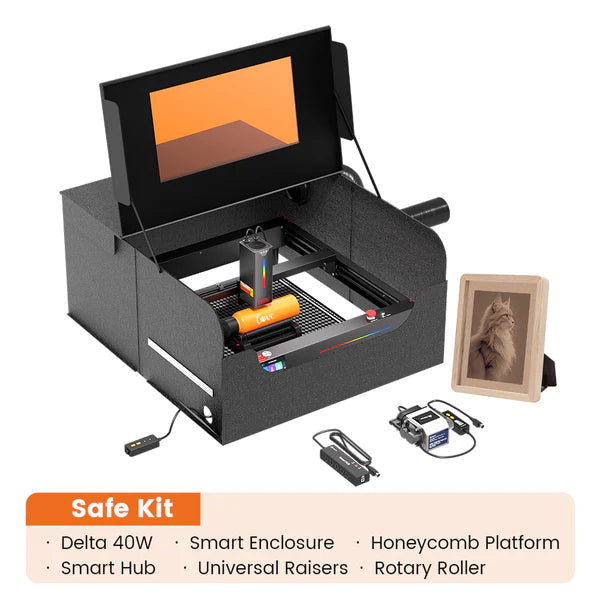

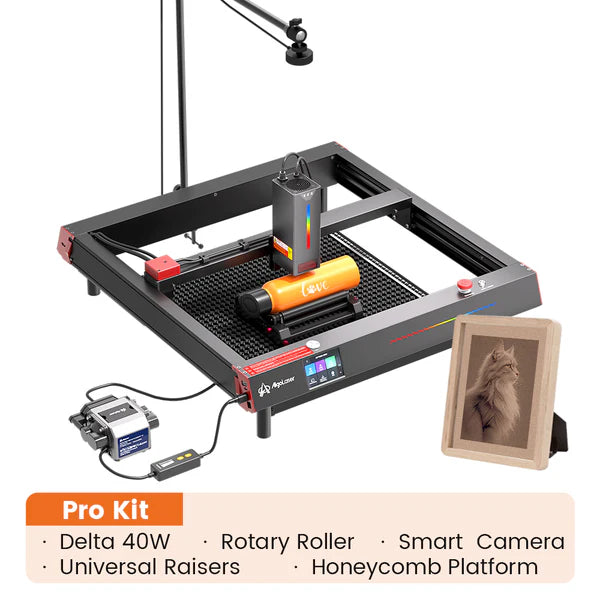

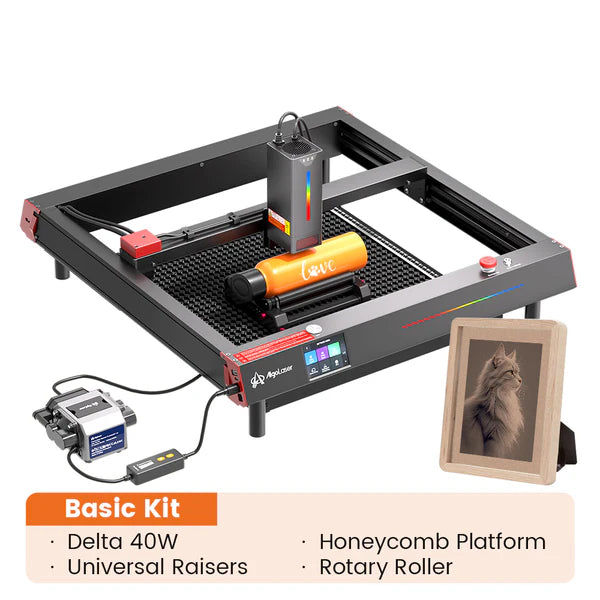

Delta 40W Engraver, HUB, Lightburn Smart Camera, Rotary Roller (RR2) , Universal Raisers, Workbench, Enclosure.
Incredible Cutting Ability
-
Powerful 40W laser module handles various material thickness for cutting easily.
Enrich your Artwork with 500+ Shades of Color.
Make your projects stand out with vibrant and durable colors created by oxidation of stainless steel material while engraving.
The 2nd Generation COS Optical Technology
-
Adopting the advanced second-generation cos technology. The polarized beam combination compresses eight powerful 5.5w lasers into a single 40w laser beam. And 75mm focal length enables it to focus a smaller laser spot with stronger cutting ability.
Product Specifications
Optical Power: 40W
Machine Power: 216W
Power Supply: 24V/6A
Maximum Engraving Speed: 30,000 mm/min
Maximum Motion Speed: 40,000 mm/min
Spot Size: 0.175x0.15mm
Product Size: X650mm*Y730mm*Z240mm
Product Weight: 7.02KG
Laser Head Life Expectancy: >10000 hours
Certification: FCC/CE/RoHS/FDA
Warranty: 12 Months
Safety Features: Active Power-Out detection and protection, Laser Over-Exposure Time Limit, USB disconnect shutdown, Emergency stop button, Gyroscope detection, Motherboard over-temperature protection,
Software and Connection
System Supported: Android, iOS, Windows, Mac OS, Web-based
Control Software: AlgoLaser App / LightBurn/LaserGRBL
Compatible Accessories: 22W laser module, Motorized Z-axis, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller
File Format Supported: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.

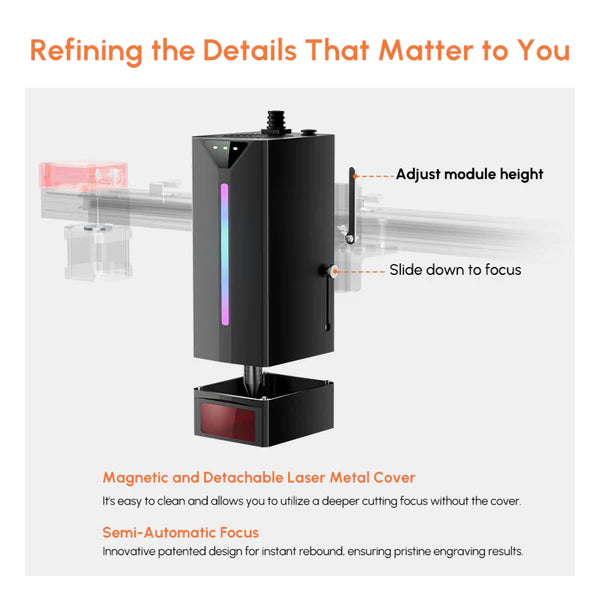

Laser Head - AlgoLaser 40W - ALM-40BD
Laser Module Size:81mm*62mm*172mm
Laser Module Weight:2kg
Optical Power Output:≥40000mW(40W)
Laser Output Wavelength: 450±5nm
Focal Distance: 72mm (laser core end face to engraving plane)
Spot Size: 0.175x0.15mm
Spot Shape: Square
Operating Frequency: <30KHz
Operating Temperature: -10ºC - +40º | 14ºF - 104ºF, Multiple Optical Lens Assembly
Diodes Input Voltage: 8.60 Volts
Diodes Inpute Current: 3.8 Amps
Harness Specification: Data Line 4x 26AWG - 0.14 (mm2 cross-sectional area), Laser Line 4x 22AWG - 0.34 (mm2 cross-sectional area)
Connectors Type: Data Line - PHB 2.0 4Pin, Laser Line -
Life Expectancy: >10,000 Hours
Optical Lense Material: Professional focusing optical glass (quartz glass), Multiple Optical Lens Assembly
