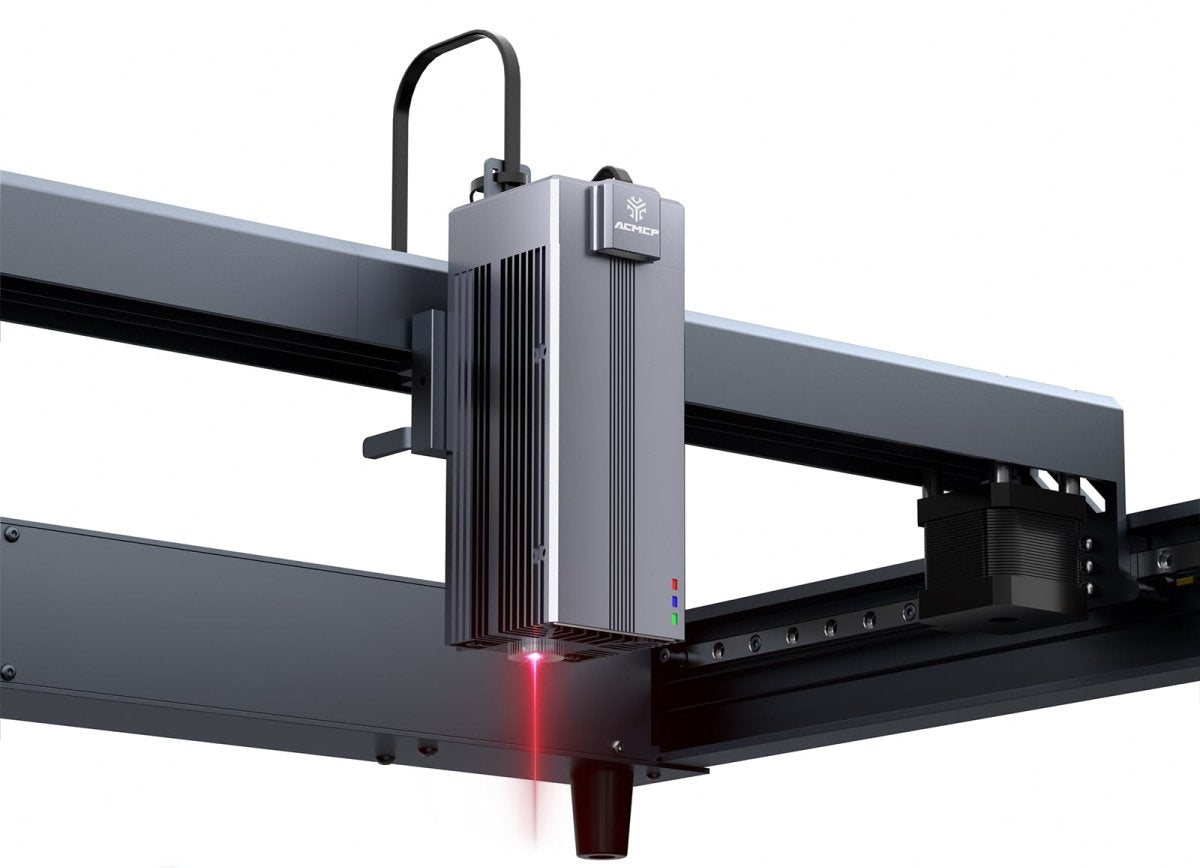

ACMER P2 IR 2w Infrared(IR) Laser Engraver

ACMER P2 IR 2w Infrared(IR) Laser Engraver

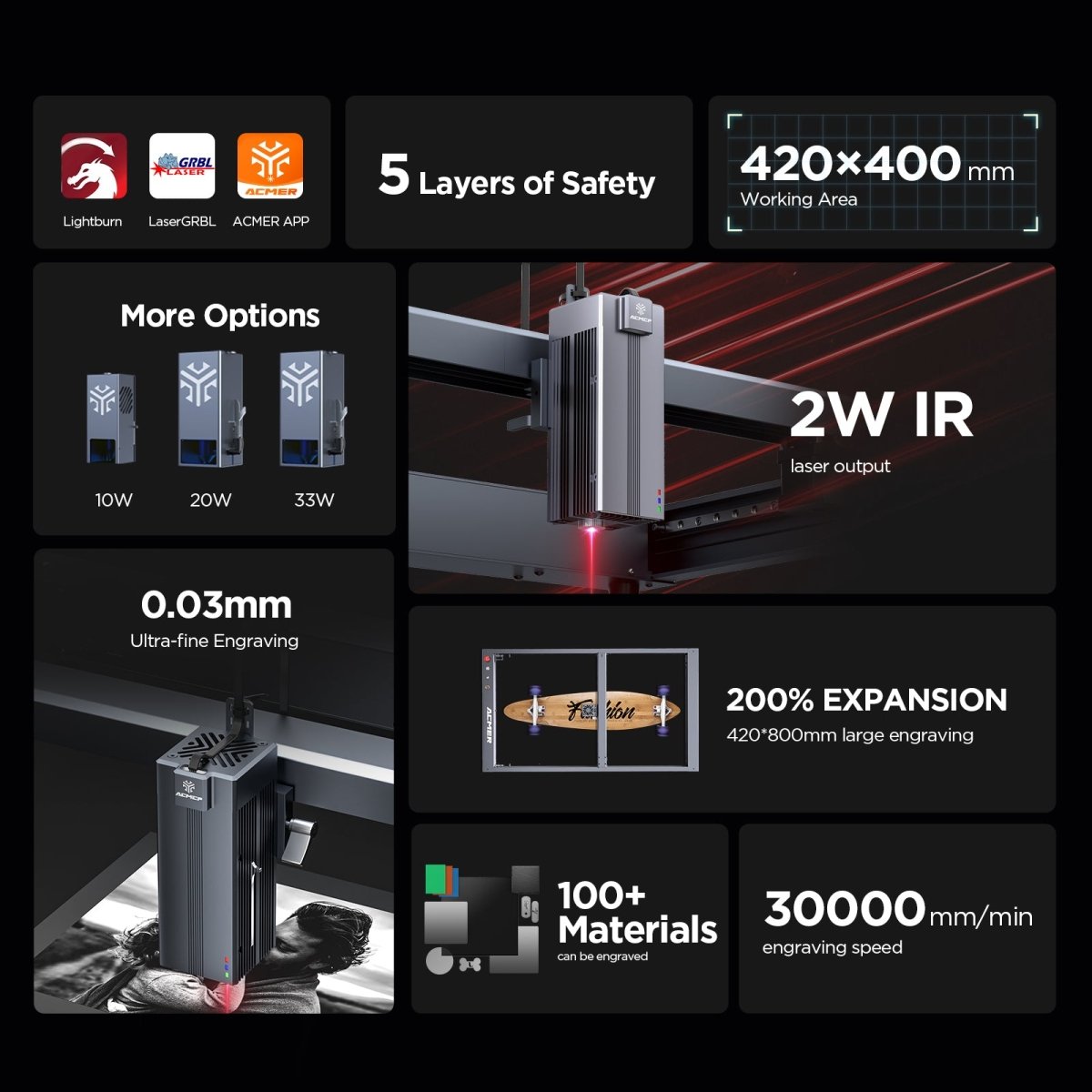

Features:

• Best budget IR laser engraver in 2024

• Perfect for engraving metal, plastic, rock, acrylic

• With metal rust removal function

• Maximum engraving speed of 30000mm/min

• Pre-assembled laser model

• Ultra-fine laser spot size of 0.03mm

Specifications:

• Laser Output Power: 2000mw

• Laser Type: 1064nm infrared laser

• Machine Power: 96W

• Laser Wavelength: 1064±1nm

• Power Supply: DC 24V/4A

• Focal Length: 40mm

• Engraving Accuracy: 0.01mm

• Laser Module Design Life: 10000 hours

• Maximum Engraving Speed: 30,000 mm/min

• Working Area Size: 420*400mm

• Assembly Method: Preassembled

• Machine Size: 650*597*200mm

• Machine Weight: 6.5kg

• Movement structure: Industrial guide rail

• Certification: FCC/CE/RoHS/FDA

• Control Software: LightBurn/LaserGRBL/ACMER App(Android) / MKS(iOS)

• File Format Supported: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.

• Compatible Accessories: 10W/20W/33W diode laser module, L80 Expansion Kit,
• Honeycomb Laser Bed , R10 Laser Enclosure Box , M2 Rotary Roller, C4 Air Assist

• Safety Features: Emergency stop button, Gyroscope detection (Tilt 15 degrees to automatically turn off the laser), Motherboard over-temperature protection,child safety lock,flame detector.

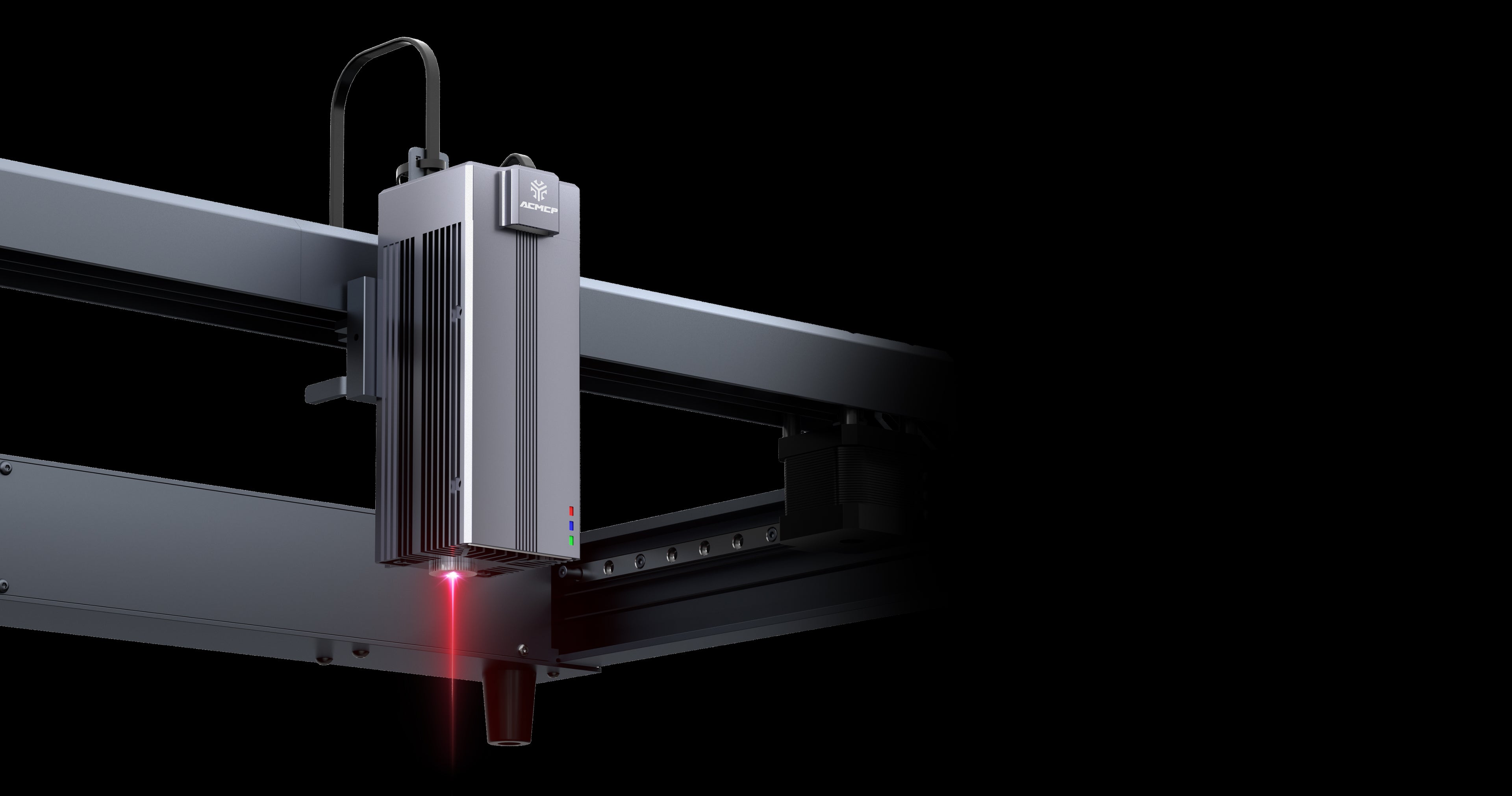

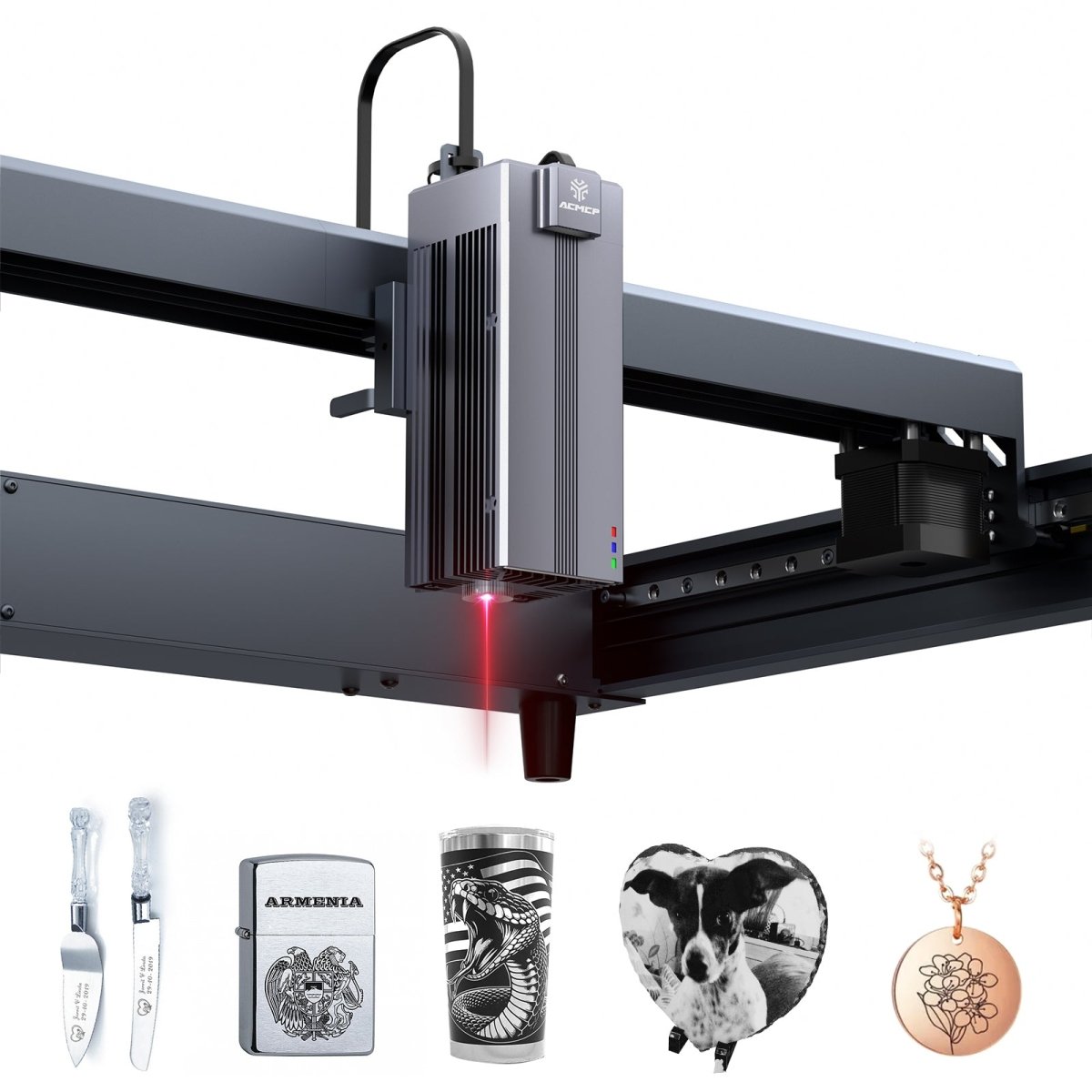

2W infrared (IR) laser engraving machine

The best solution for detailed engraving of metal, rock, anodized aluminum, acrylic and more.

Create Artworks with Your Favorite Materials

ACMER P2 can engrave and cut hundreds of materials. Your creativity is no longer limited by materials.

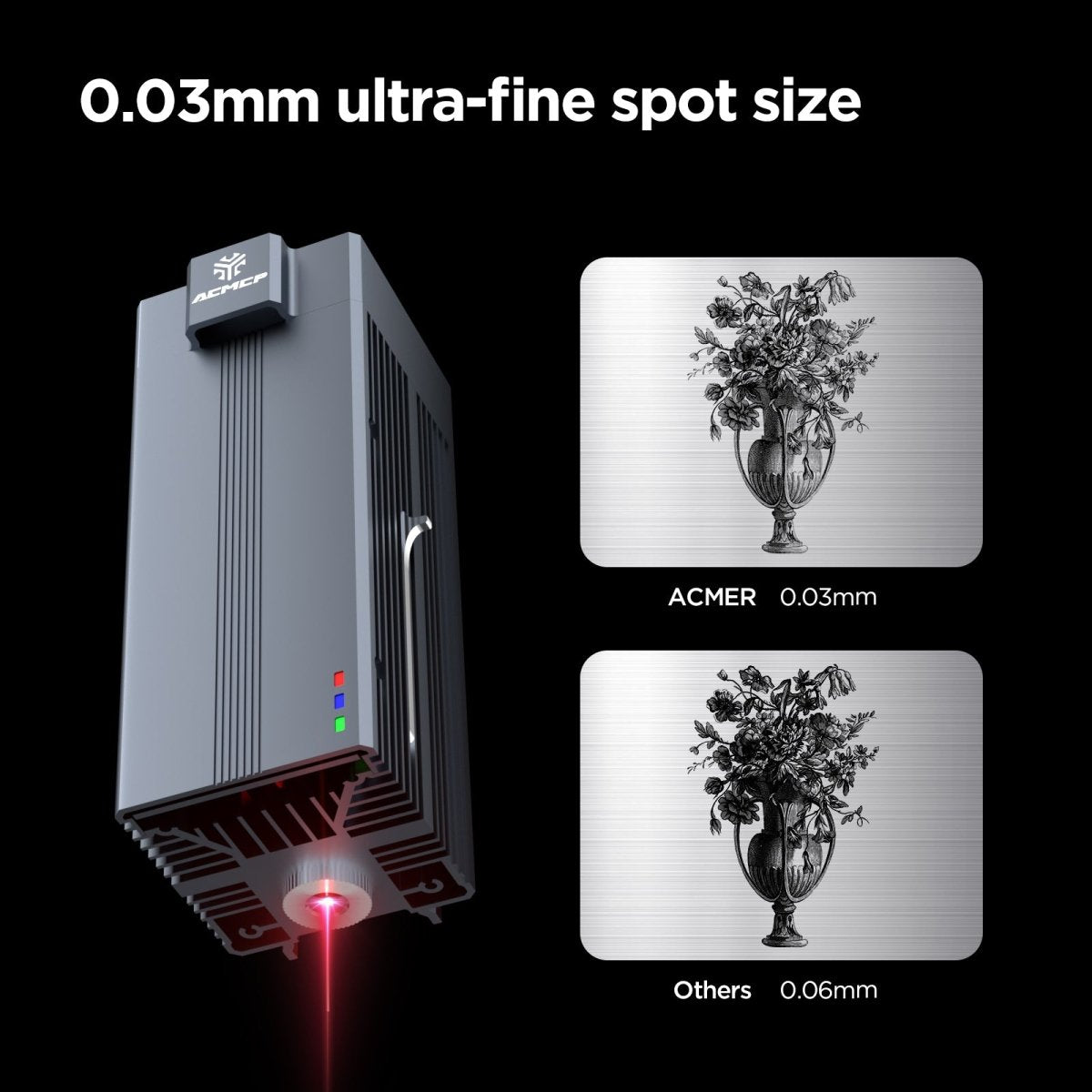

0.03mm ultra-fine spot size

ACMER's cutting-edge IR technology can provide higher precision for laser modules, with an ultra-fine spot size of 0.03 mm. This level of precision can maintain better image restoration on metal or other materials, helping you carve lifelike works.

Rust removal on metal surfaces

IR laser rust removal solution, easily restore the former glory of metal surfaces. Say goodbye to corrosion and oxidation, because our professional formula can penetrate deeply and eliminate rust from the root.

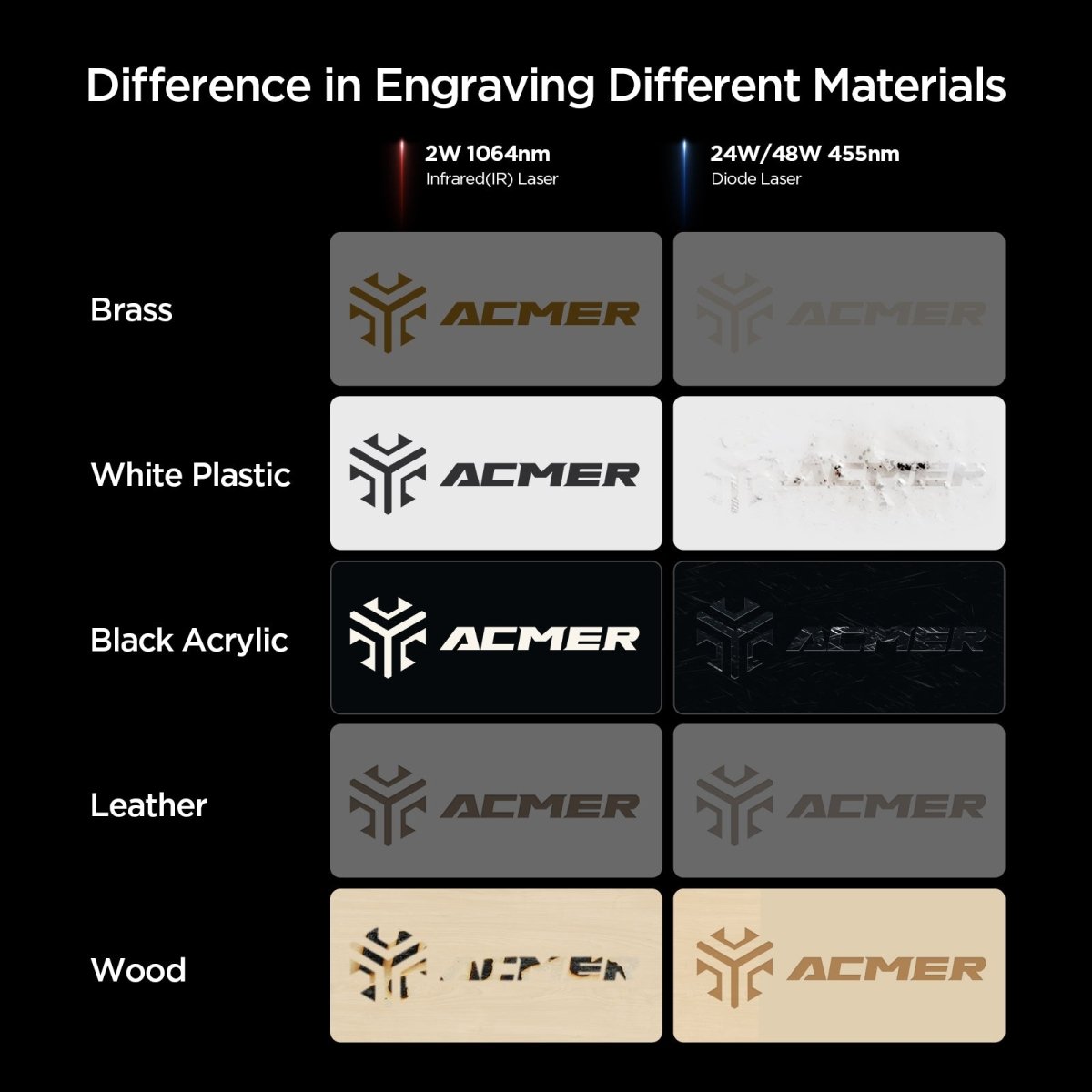

Difference in Engraving Different Materials

Upgrade with Ease

You can easily upgrade by simply replacing the laser module without purchasing an additional machine. Replacing the laser module can engrave up to 300 materials, which can save you the most cost and space while maximizing the perfection of your work.

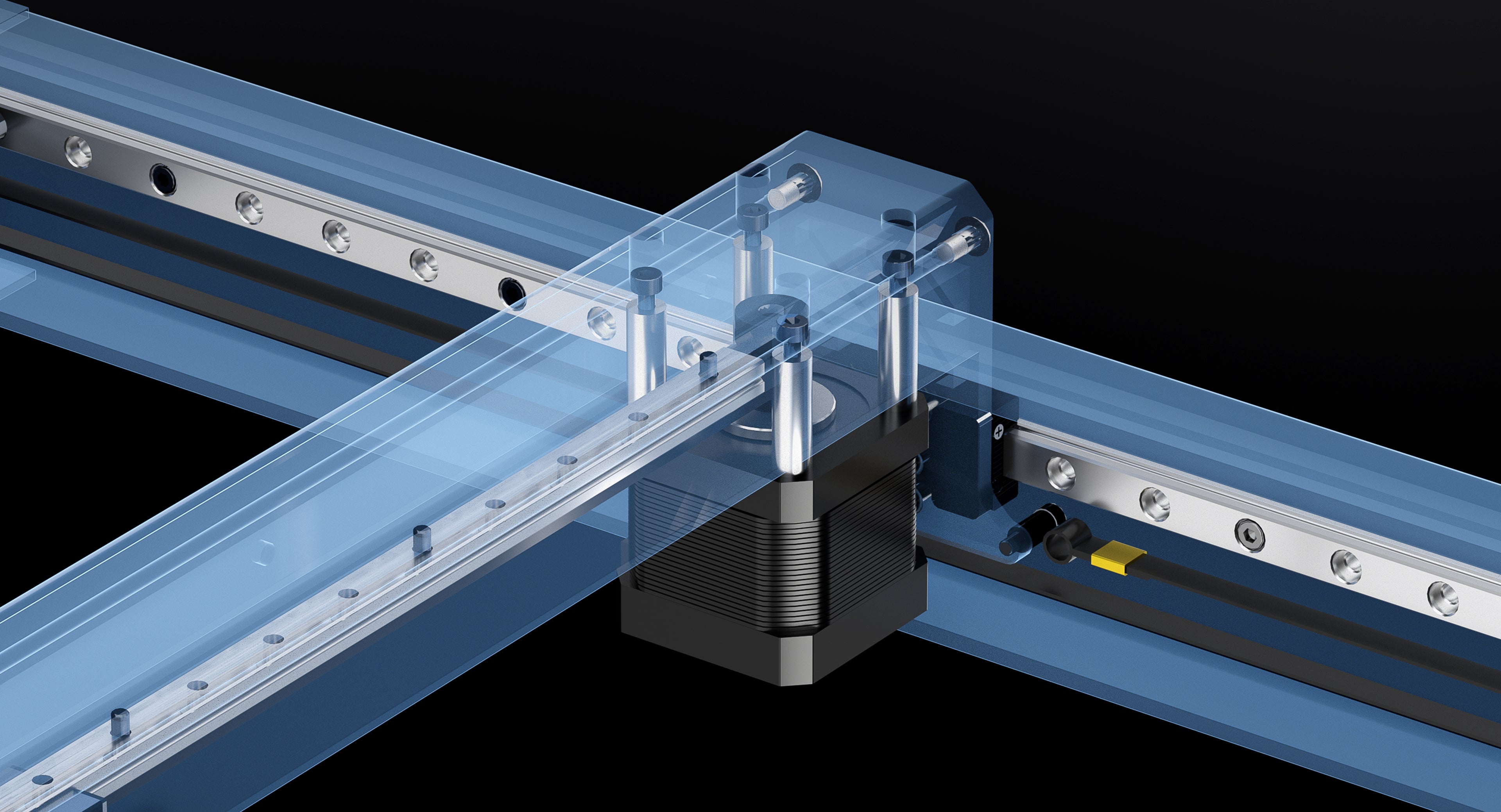

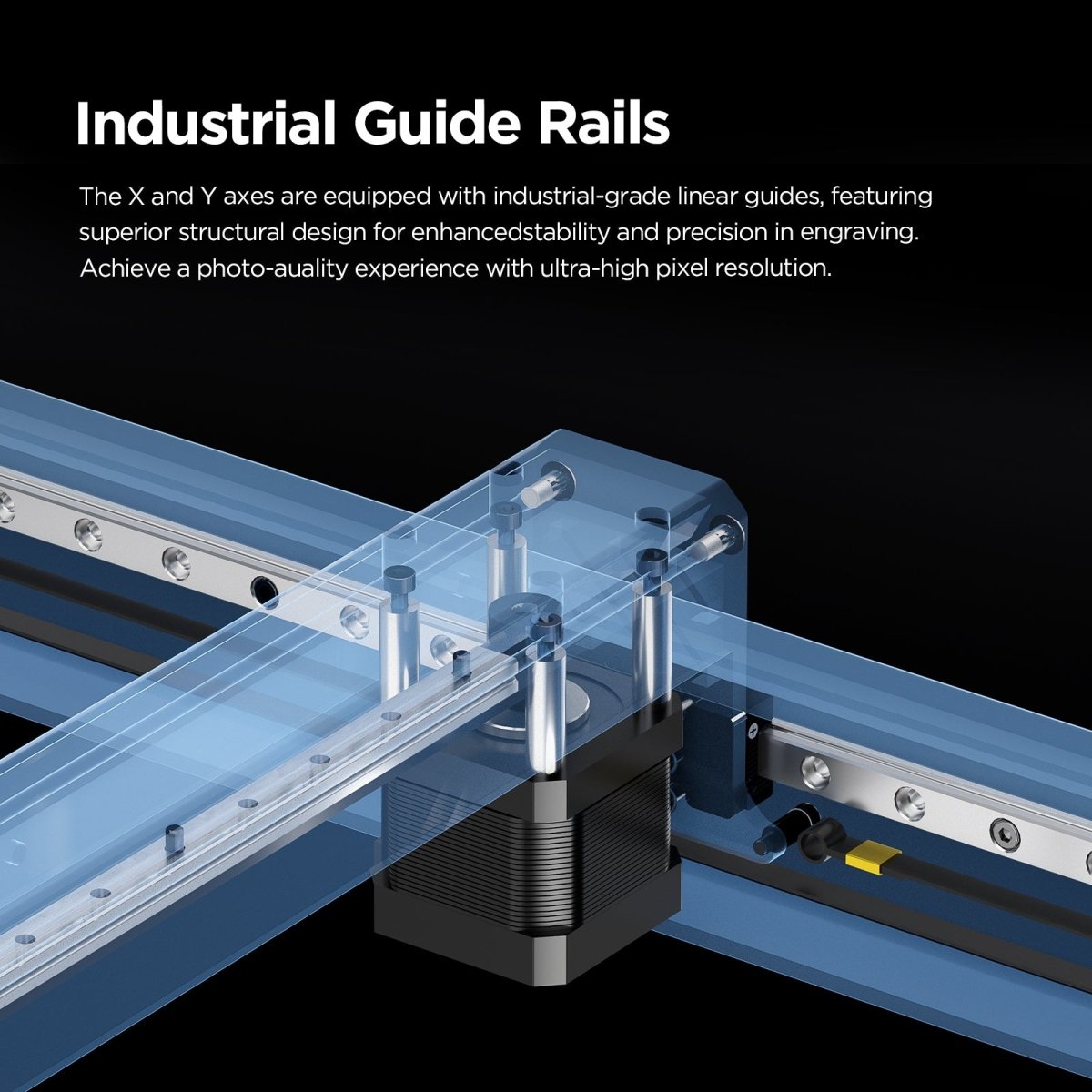

Industrial Guide Rails

The X and Y axes are equipped with industrial-grade linear guides, featuring superior structural design for enhancedstability and precision in engraving. Achieve a photo-auality experience with ultra-high pixel resolution.

Incredibly Fast! Higher Efficiency!

With a blazing speed of up to 30,000 mm/min, this engraving system inherits the proven motion control technology from ACMER Lab. Its robust mechanical structure ensures faster engraving times for artworks, without compromising on stability or ultra-high precision.

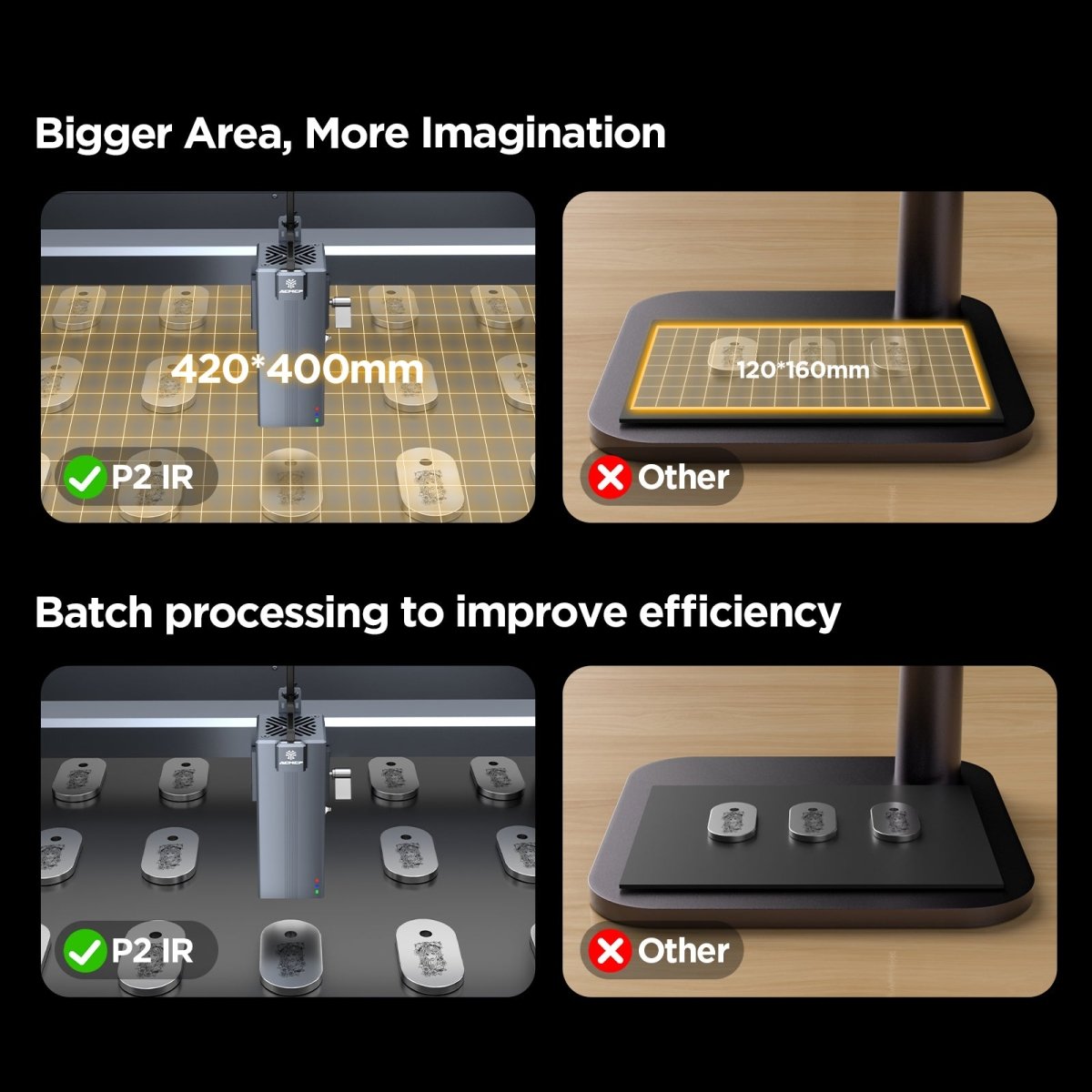

Batch processing to improve efficiency

The extra-large workspace enables one-time positioning and processing without manual retrieval or replacement, maximizing efficiency and saving more time.

Bigger Area, More Imagination

Larger projects can be achieved without the need for an expansion kit, making it ideal for creating larger signs, metal work engraving, and more.

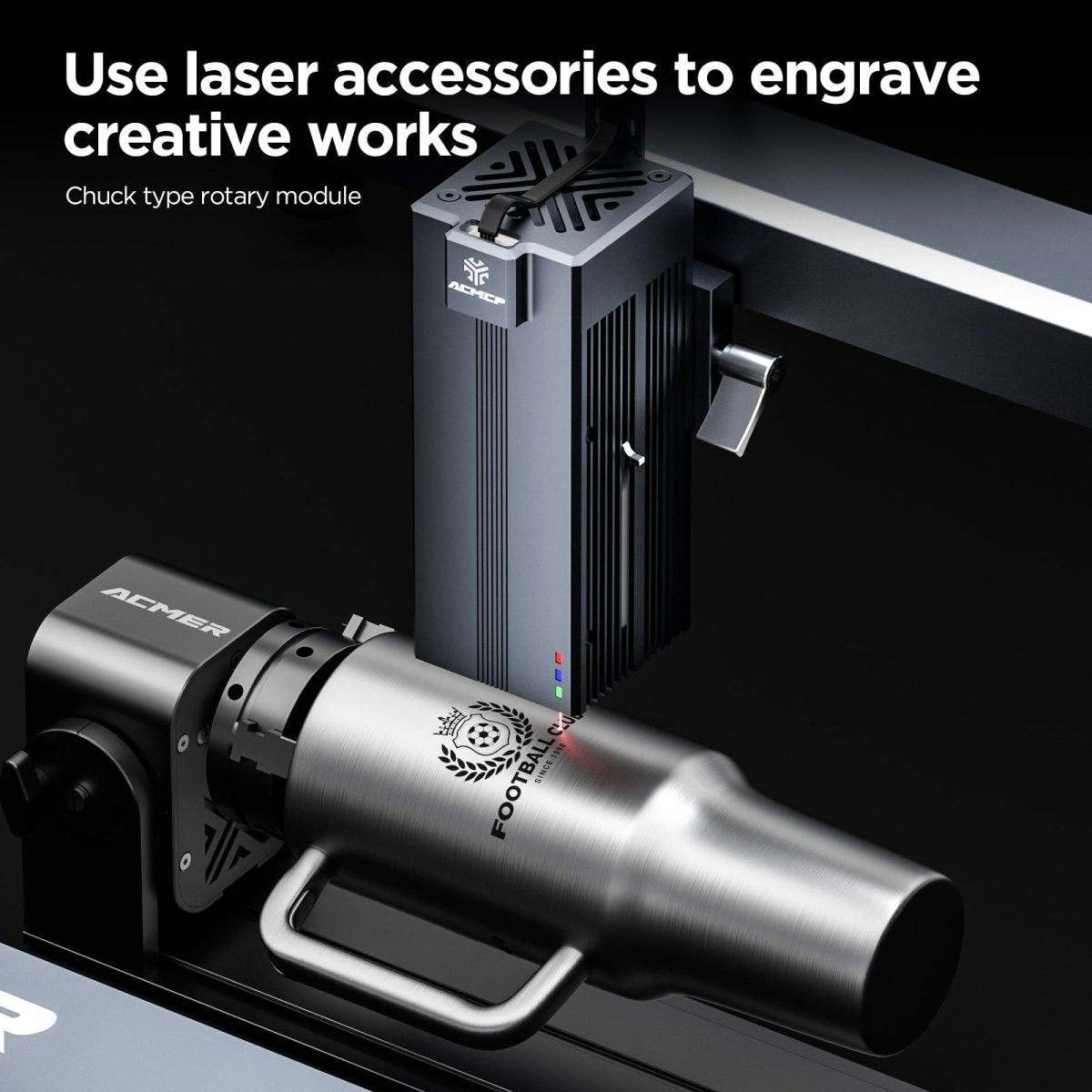

Use laser accessories to engrave creative works

Chuck type rotary module

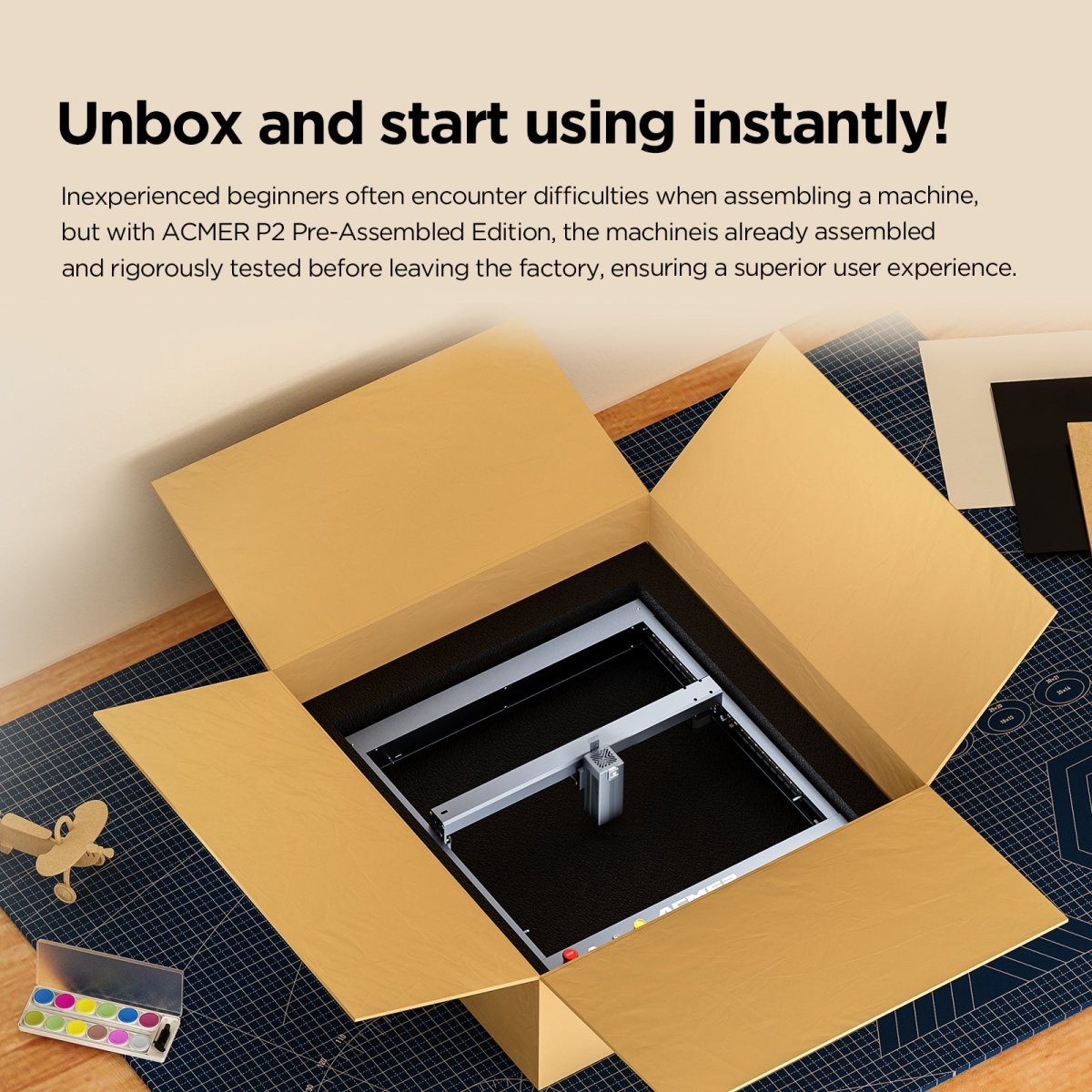

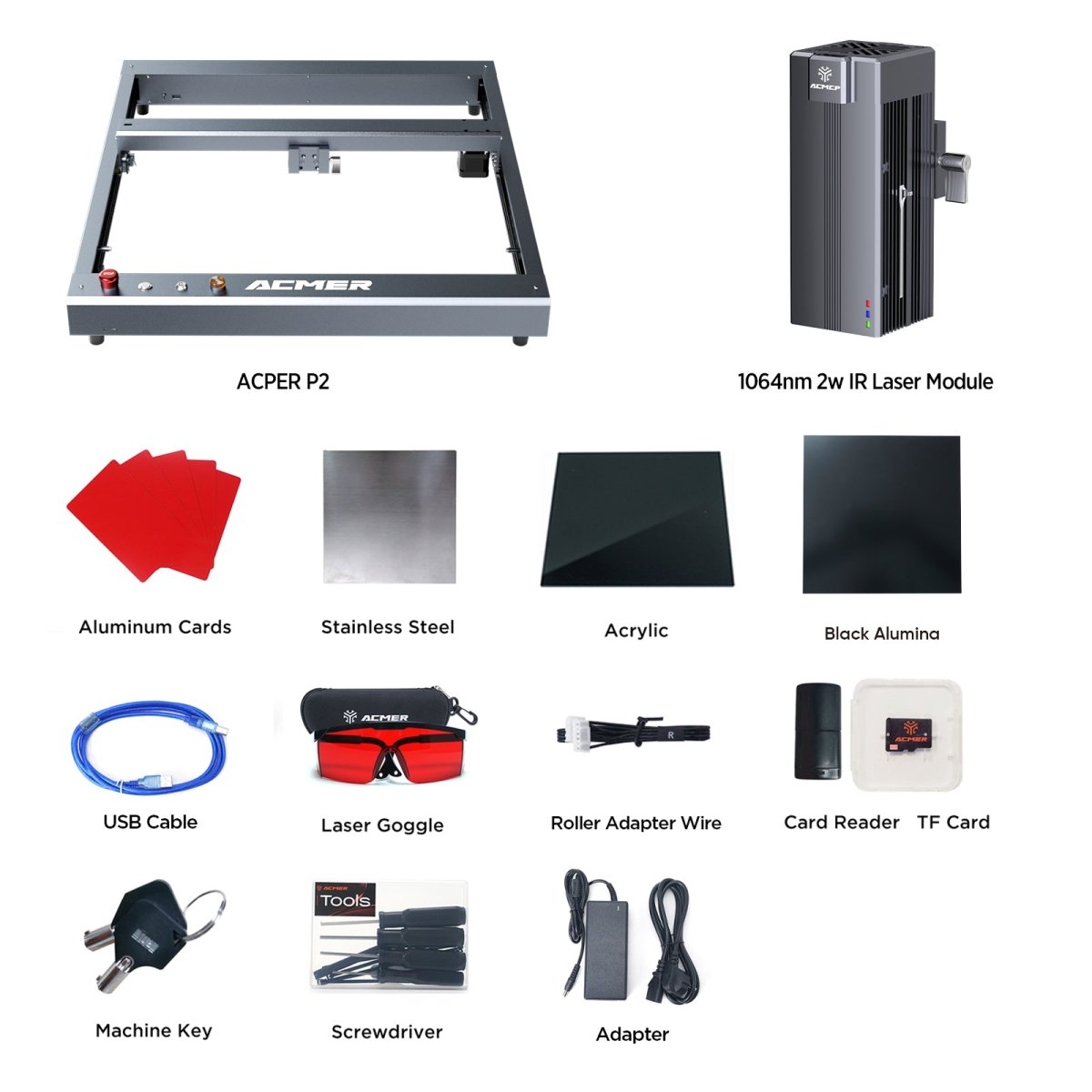

Unbox and start using instantly!

lnexperienced beginners often encounter difficulties when assembling a machine, but with ACMER P2 Pre-Assembled Edition, the machineis already assembled and rigorously tested before leaving the factory, ensuring a superior user experience.

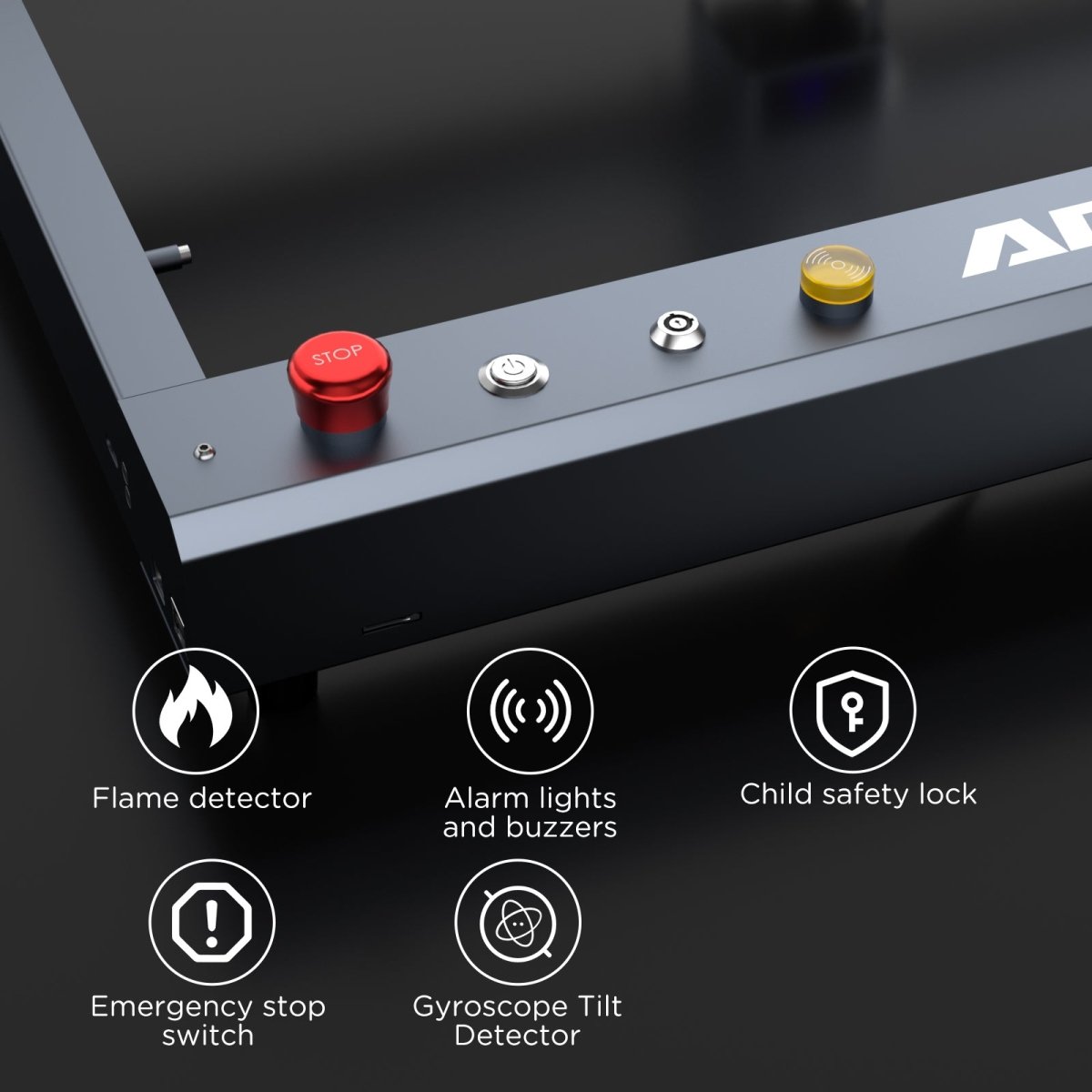

What are the security features of the ACMER P2?

Flame detector
Stop working and sound an alarm onceflame and smoke are detected.

Alarm lights and buzzers
Eye-catching yellow alarm indicator light gives you the quickest response to any malfunction or accident.

Gyroscope Tilt Detector
It will automatically stop working when the tilt exceeds 15 degrees to prevent the laser from causing harm to the human body or damaging objects.

Child safety lock
Equipped with a safety key, which needs to be inserted to turn on the switch to work, preventing children from misusing the machine.

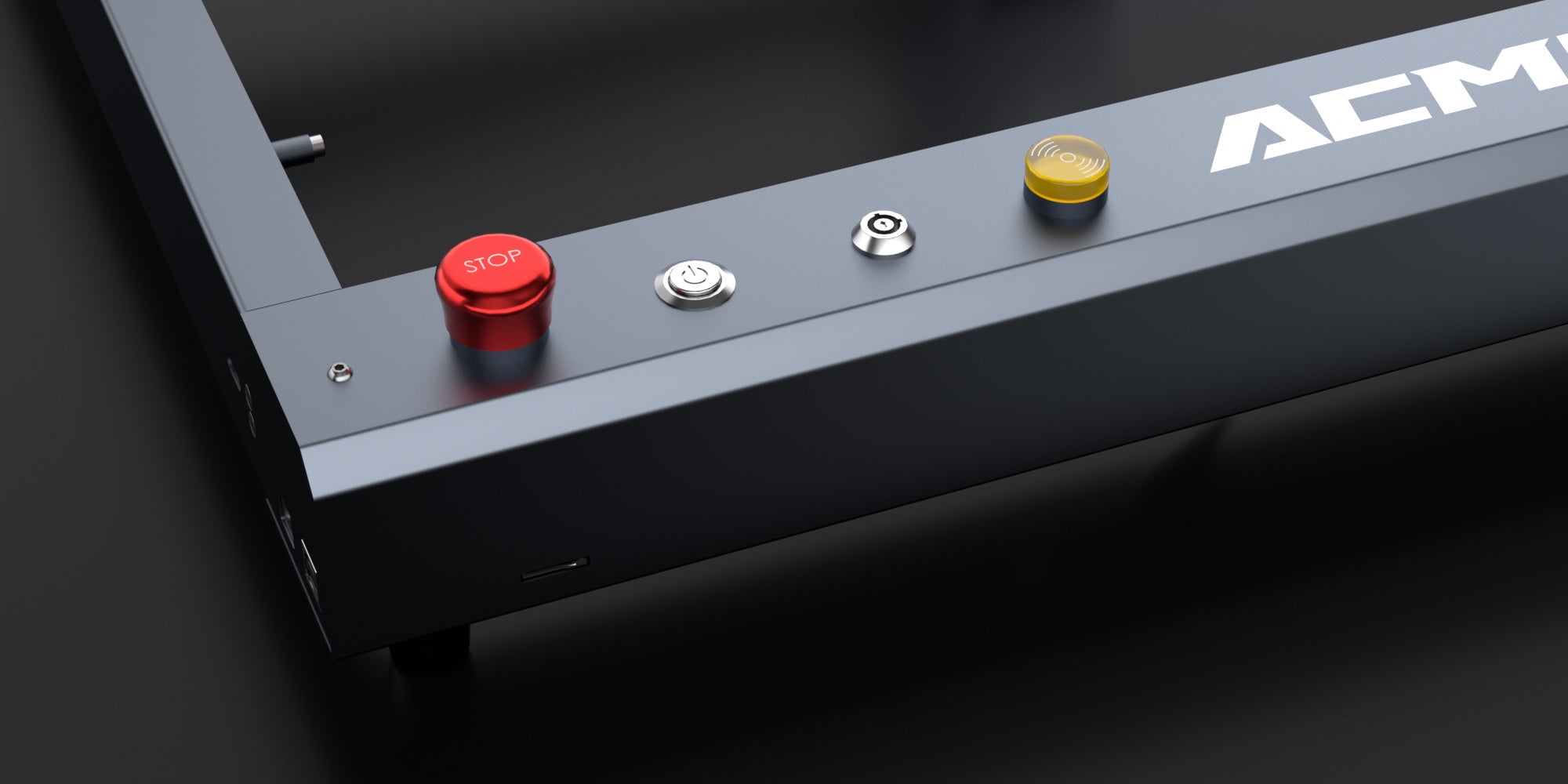

Emergency stop switch
When the machine is working the machine can be stopped immediately by the emergency stop switch.

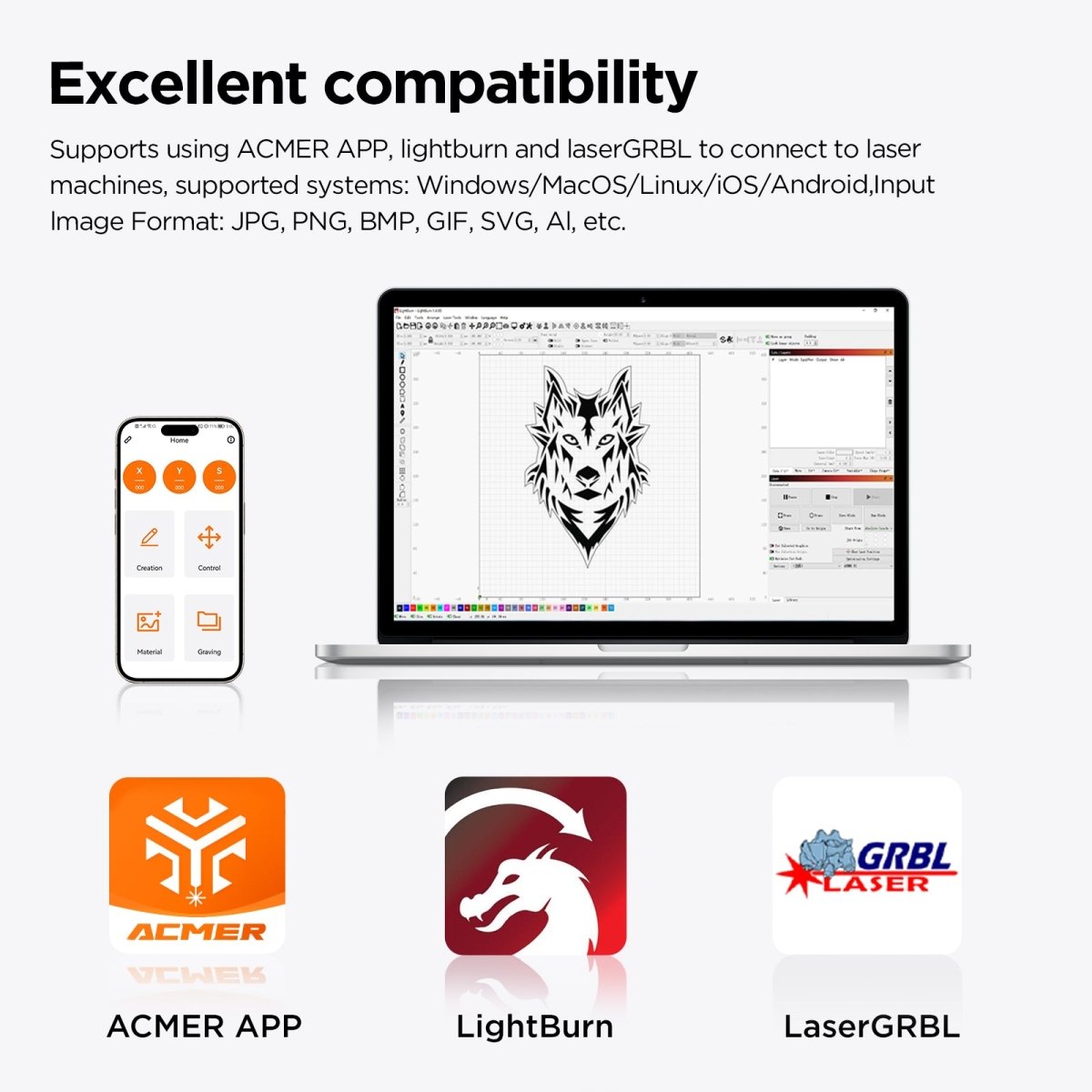

Excellent compatibility
Supports using ACMER APP, lightburn and laserGRBL to connect to laser machines, supported systems: Windows/MacOS/Linux/iOS/Android,Input lmage Format: JPG, PNG, BMP, GIF, SVG, Al, etc.
