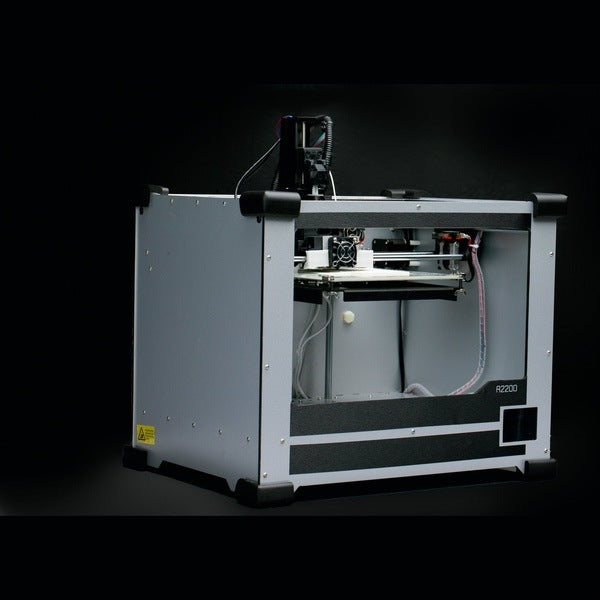

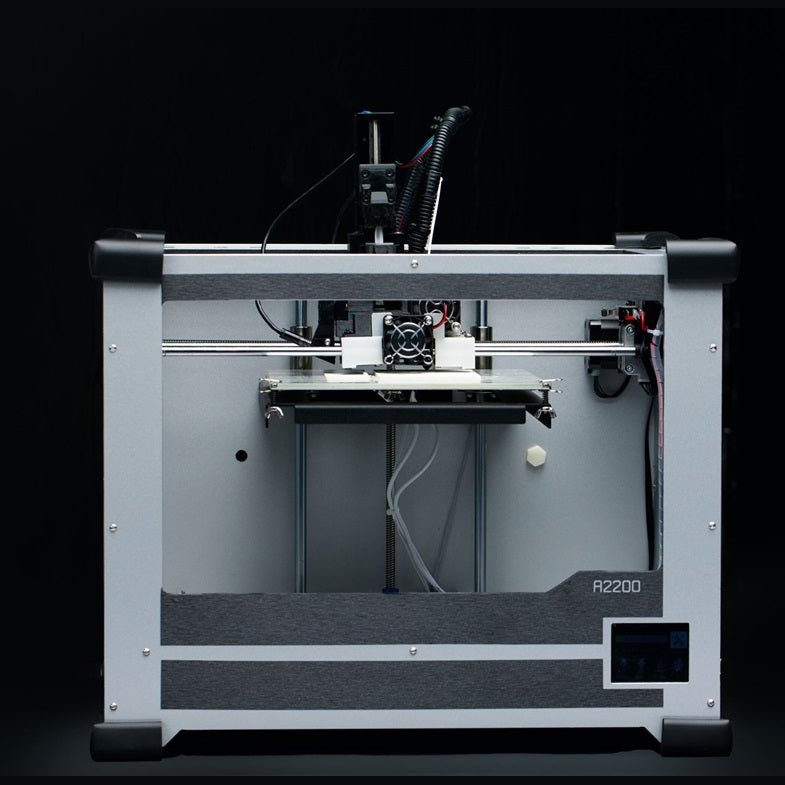

nano3Dprint A2200 3D Multi-material Electronics Printer

Regular price
Price: $4,950.00
Regular price
List Price: $5,299.00
Sale price
Price: $4,950.00
You save: $349.00 (7%)

 Free shipping is available to continental United States, and applies to all locations for weight 0 lbs – 70 lbs. Additional shipping charges may apply to Alaska and Hawaii.

SKU:

View Cart
The A2200

Best Prices Online - 3D print electronics and other functional objects with embedded circuitry. The A2200 3D prints FDM side-by-side with functional paste and highly conductive inks.


Features
  • Print Electronics

    Make PCBs. Wearable technologies. Conductors. Solar Cells. Flexible electronics. And beyond.

  • Use a Wide Range of Substrates

    Print on a wide range of substrates, sizes, or shapes to a depth of 1 cm.

  • Benchtop Sized

    Print from the comfort of your private workspace.

  • Video Inspection System

    Monitor your multi-material 3D printing progress in real-time from your device to ensure your high resolution 3D designs print perfectly.

  • Enjoy Accurate 3D Prints

    Achieve accuracy in layer height, surface finishing, tolerance, and roundness.

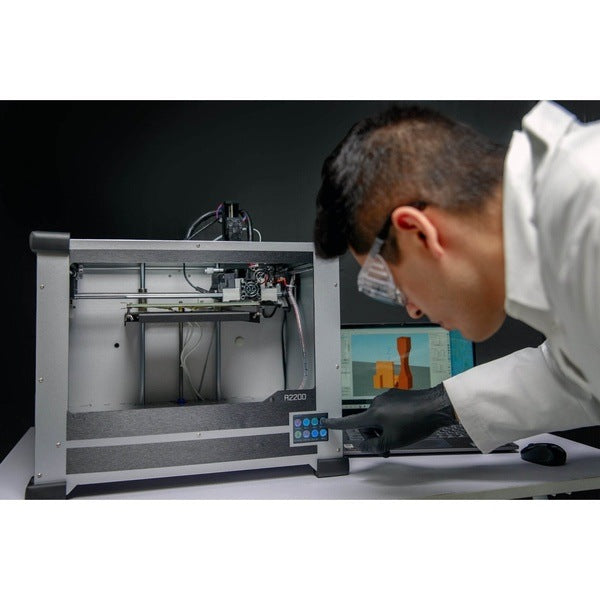

  • Simple To Use

    Control the A2200 from your computer, smartphone or the full-color touch screen. Itƒ??s compatible with USB, SD card, and flash drive for direct printing.ƒ??

Specification
  • Two Printheads

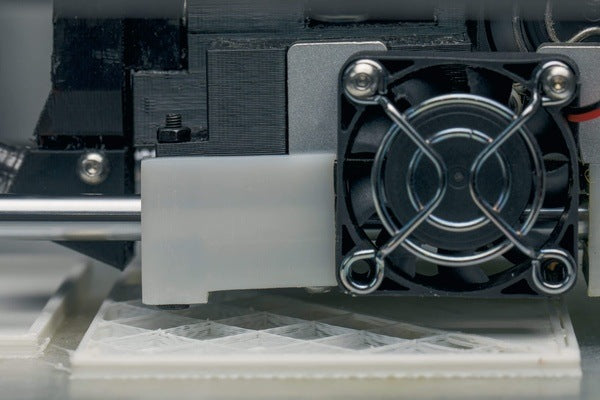

    Optimized Print Heads: FDM Extruder side-by-side with Materials Dispensing System

  • The FDM Extruder (Print Head 1) 3D Prints:

    Conductive filament, Carbon Fiber filament, PLA, 1.75mm ABS, POM, Dissolvable filament (PVA, HIPS), PETG, Nylon (PA), PC, Flexible filament (TPU, PLA+), Moldlay (cartable filament), nano3Dprint high conductive filament, and much more...

  • The Materials Dispensing System (Print Head 2) 3D Prints:

    nano3Dprint pastes and inks, functional pastes and inks, Conductive Paints, Fast Drying Solvent Based inks, Silver Nano-Particle inks, Graphene solutions, and much more...

  • Resolution

    Achieve a resolution of 200-microns, and attain even finer resolutions of up to 100-microns with specialty tips on the materials dispensing system.

  • Materials Dispensing System Viscosity Range

    Works with all inks and pastes with viscosities ranging from 1mPa?ús to 54000 mPa?ús.

  • Materials Dispensing System Syringe Size

    3 ml

  • Materials Dispensing System Nozzle Size

    14 to 30 Ga (1.6 mm to 150 ?¬m) Higher Resolution Available: 32 Ga, 34 Ga

  • FDM Extruder Size

    0.4 mm (1.75 mm filament)

  • Build Volume

    214 x 186 x 160 (mm) 8.4 x 7.3 x 6.3 (in)

  • Video Inspection System

    Real-time magnifying video inspection system for more precise adjustment control of the dispensing system.

  • Machine Dimensions

    467 x 357 x 374 mm

  • Machine Weight

    13 kg (28.66 lbs.)

  • Max. Heat Bed Temperature

    100?øC

  • Max. Nozzle Temperature

    270?øC

  • Max. Axis Moving Speed

    350 mm/s

  • Max. Nozzle Flow Rate

    24 cc/hour

  • Nozzle Diameter

    0.4 mm

  • Positional Accuracy

    XY axis: 0.011 mm Z axis: 0.0025 mm

  • Printing Layer Height

    0.05-0.3mm

  • Stage Material

    Removable Glass Heated Bed

  • Software / File Format / Operating System

    Compatible with Repetier-Host, Cura, Makerware, Simplify3D etc. / STL, GCODE, OBJ, DAE, AMF, BMP, JPG, JPEG, PNG / Windows, Mac, Linux

  • Connectivity

    Direct print with SD card using full-color touch screen (recommended); Flash Drive

?ÿ

Included

A2200 3D Multi-material Electronics Printer
General Tools & Materials:
Allen Wrench (2 sizes)
Allen Wrench (key type, x3)
Screw Driver (x1)
Scraper (x1)
Tweezer (x1)
Screws & Plastic Corner Cover (5 screws total ƒ?? 1 for front fan, 4 for dispensing base)
Dispenser/Syringe Adapter & Clamps for Plastic Syringe (x1)
Dispenser/Syringe Adapter & Clamps Glass Syringe (x1)
Glue Stick (x1)
Empty Plastic Syringes (x5)
Syringe Caps (x5)
Transfer Adapters (x5)
Bed Clips (1 set)
Filament Holder (x1)
Power Cable
Glass Bed
Mark II Dispensing System
Video Monitoring System
Simplify3D Software License

?ÿ
