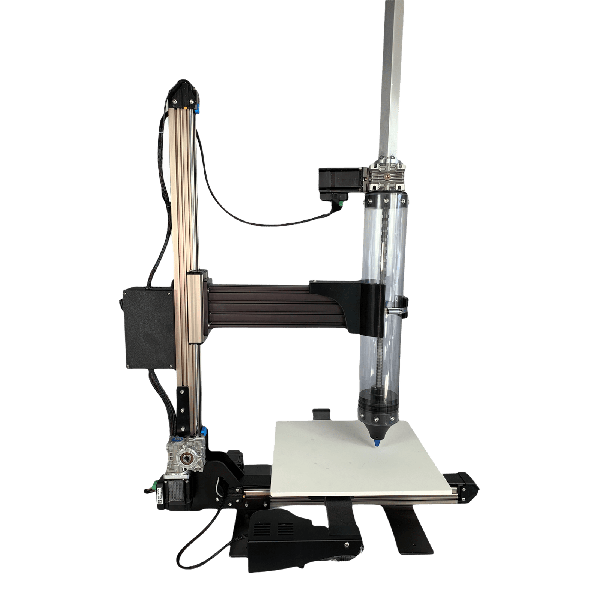

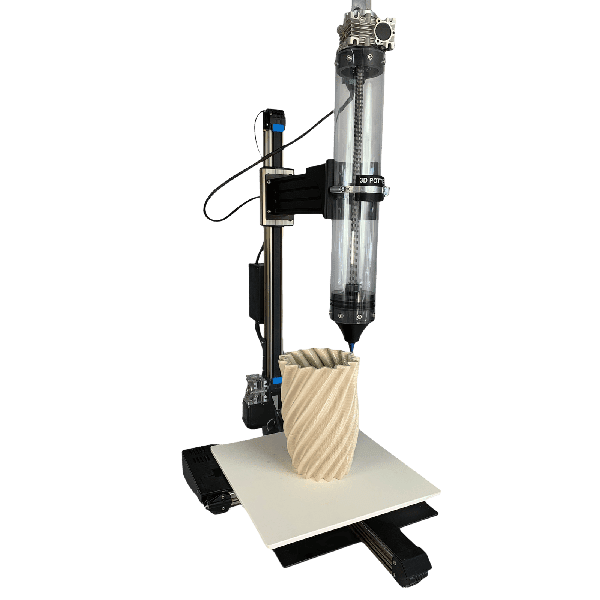

3D Potterbot 10 Super ceramic 3D printer
- Regular price
- Price: $7,950.00
- Regular price
- List Price: $8,299.00
- Sale price
- Price: $7,950.00
- Unit price
- per
Free shipping is available to continental United States, and applies to all locations for weight 0 lbs – 70 lbs. Additional shipping charges may apply to Alaska and Hawaii.
SKU:
Best Prices Online - The 3D Potterbot 10 Super ceramic 3D printer has all the benefits of the 10 PRO, but with a larger clay extruder. You can print larger objects or sequentially without having to reload the tubes.
The 3D Potterbot 10 Super ceramic 3D printer model has a more robust construction to carry the higher-volume of 3600 ml clay extruder. This large hybrid motor extruder is capable of much faster speeds of extrusion than our standard model 10. Large prints or sequential objects printing can be accomplished without changing the tubes so it is ideal for a production environment. If large prints are what you are looking for, you can also consider the 10XL, or the Scara models.
3D Potter Ceramic Printers
3D Potter ceramic printers use high quality anodized aluminum rails. These rails are robust and have a smooth surface, allowing for easy movement of parts while being able to withstand classroom or industrial environments.
The unique feature of our printers is the direct extrusion of real clay. Other brands use a compressed air system printing slip (watered down clay or alcohol diluted clay). The advantage of direct extrusion is printing full body clay, or other paste-like materials. All materials used to build our printers are food grade, so get creative.
We keep improving our designs. The 10th generation brings a new wireless feature with a full web interface controlled over WiFi. You can now control and upload files to the printer from multiple devices simultaneously.
The 10th gen 3D Potterbot 10 Super ceramic 3D printer has a new uniform nozzle design for improved performance, across all of our printers. This allows you to interchange nozzles between all of our printers, from the Micro to the Scara V4.

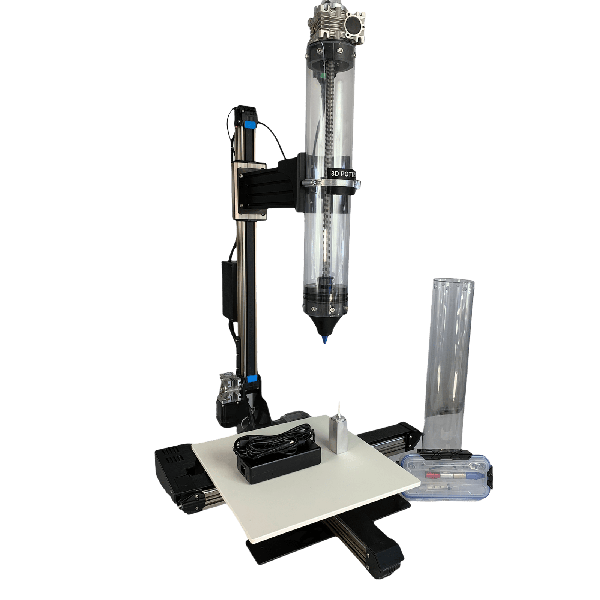

What's included:
1. 3D Potterbot 10 Super ceramic 3D printer
2. Closed loop stepper on X, Y, Z, extruder
3. 3600ml extruder, 2 tubes
4. 4 anodized aluminum nozzles (standard sizes: 3, 4, 5, and 6mm)

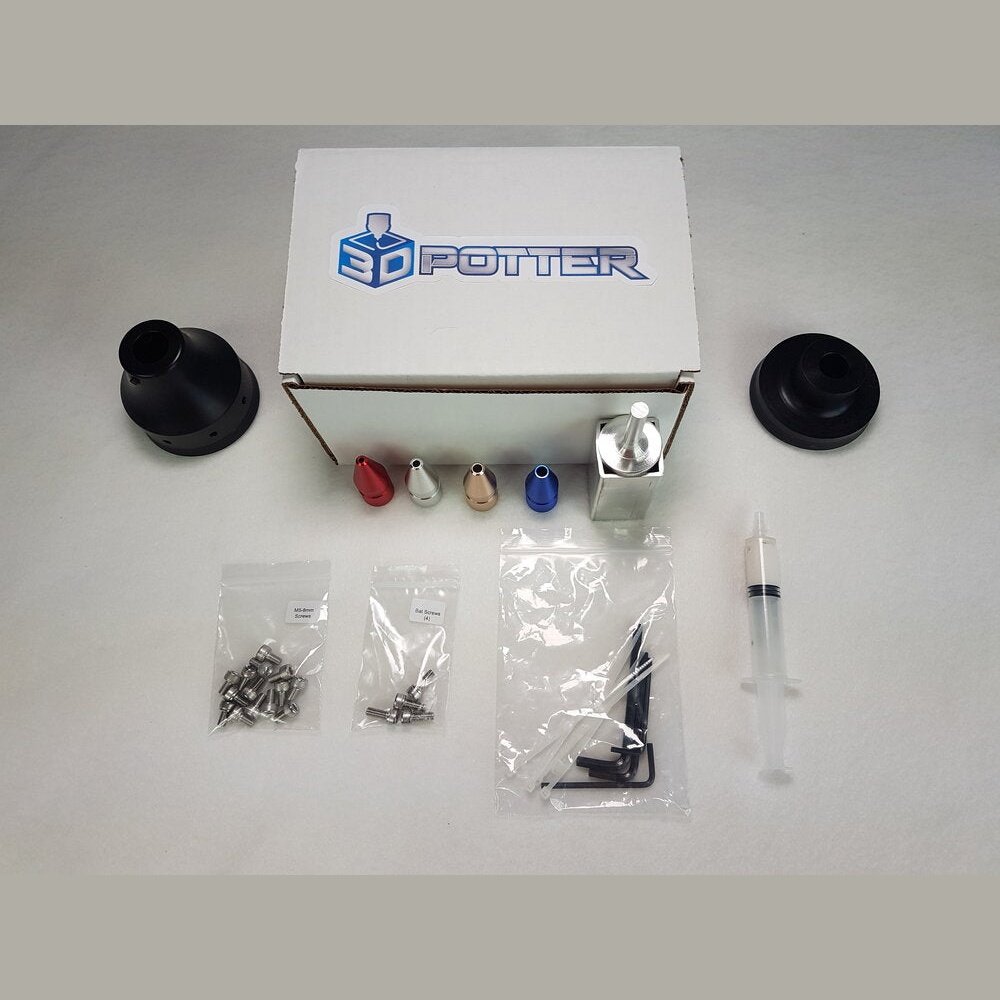

5. Parts Box: Allen key set, grease, Acme driver tool, tie wraps, extra screws
6. Power Supply.
Specifications
Printing Envelope:
X-16" (415mm)
Y-16" (405mm)
Z-20" (500mm)
Printer size:
W-26" L-34" H-40"
Operation space needed: W-32" L-40" H-78"
Bat size (printer bed): 15x15in" (381x381mm)
Height to the top of the extruder fully extended is 78" (1981mm)
Weight with extruder: 52 lbs. (23kg)
Recommended print speed: 1.1”/s’ to 7.9’’/s (30 to 200 mm/s)
Maximum print speed: 7.9in”/s (200mm/s)
Power Supply: Output - 24V 10 amps, Input - 100-240V, 50-60 Hertz.
Power consumption: 24V ~5 amps, ~120 Watt
Main controller board running Duet3D with Atmel SAM4E8E: 120 MHz ARM Cortex-M4
