3D PotterBot Auger HP (24/75)

The Auger has been developed specifically for use with Cementous materials allowing you to print small-medium size objects with minimal cleanup. The easy cleanup of the auger makes it perfect for use indoor labs and material testing. The added benefit of direct flow controls means changing print speeds without having to worry about adjusting the extrusion rate. It can be fed by hand, or directly by a pump. Although this system will work with a variety of materials, there are some limitations. We recommend aggregate no larger than 2mm, and the material consistency also needs to be adjusted correctly. Avoid excessively thick materials with a high clay content.

Our Auger works especially well with the new 3D Printing products from Sika Corporation. #752

It is possible to print clay but the consistency needs to be relatively loose. With the clay at this consistency, it's not practical to print unless you plan on injecting some other chemical to solidified clay after printing.

Weight: 12lbs (5.4kg)
Size: ~14in diameter at the top, ~28in tall.
Attachment sleeve outside diameter: ~3.5in to ~4in, 5in tall.

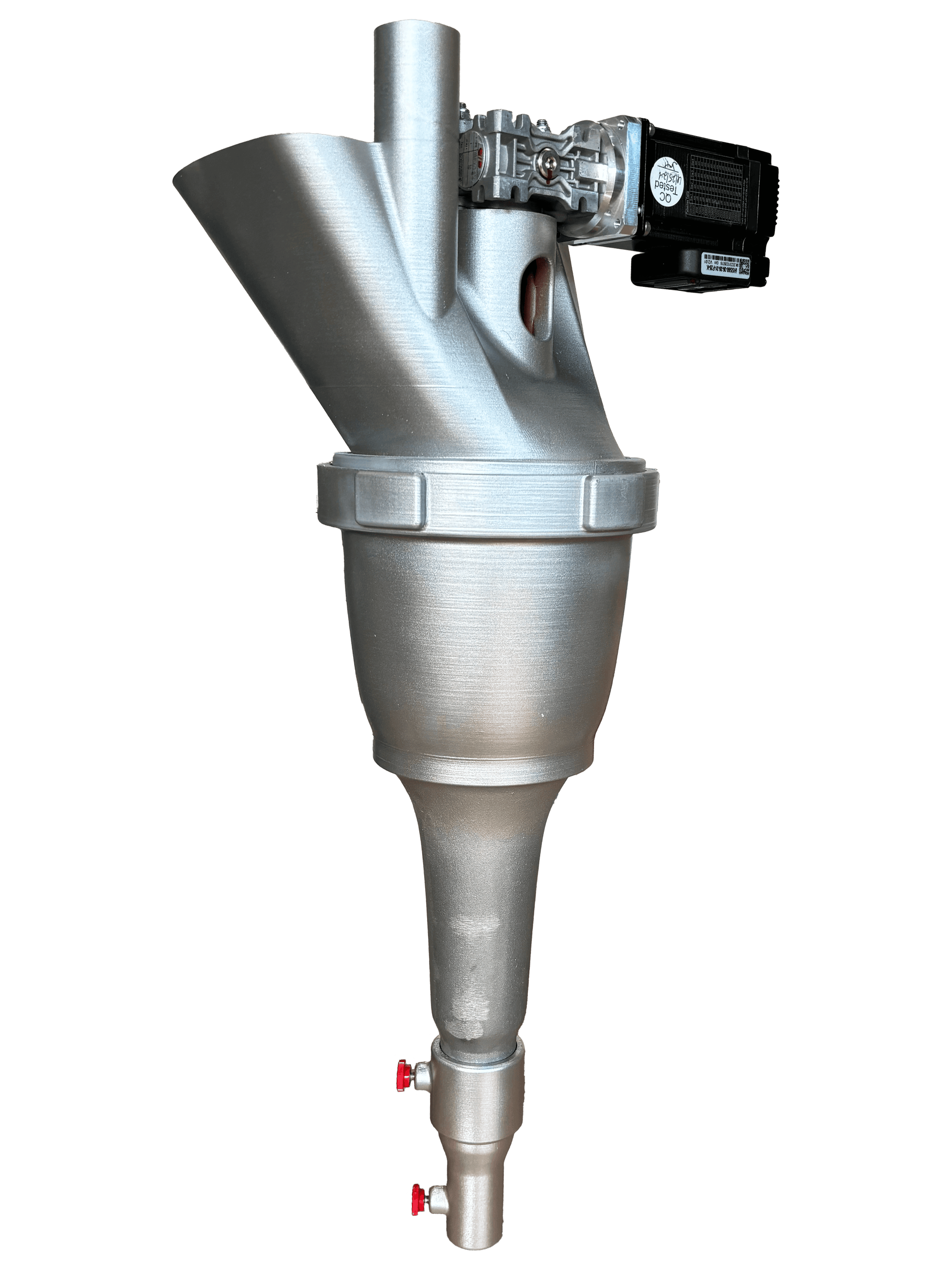

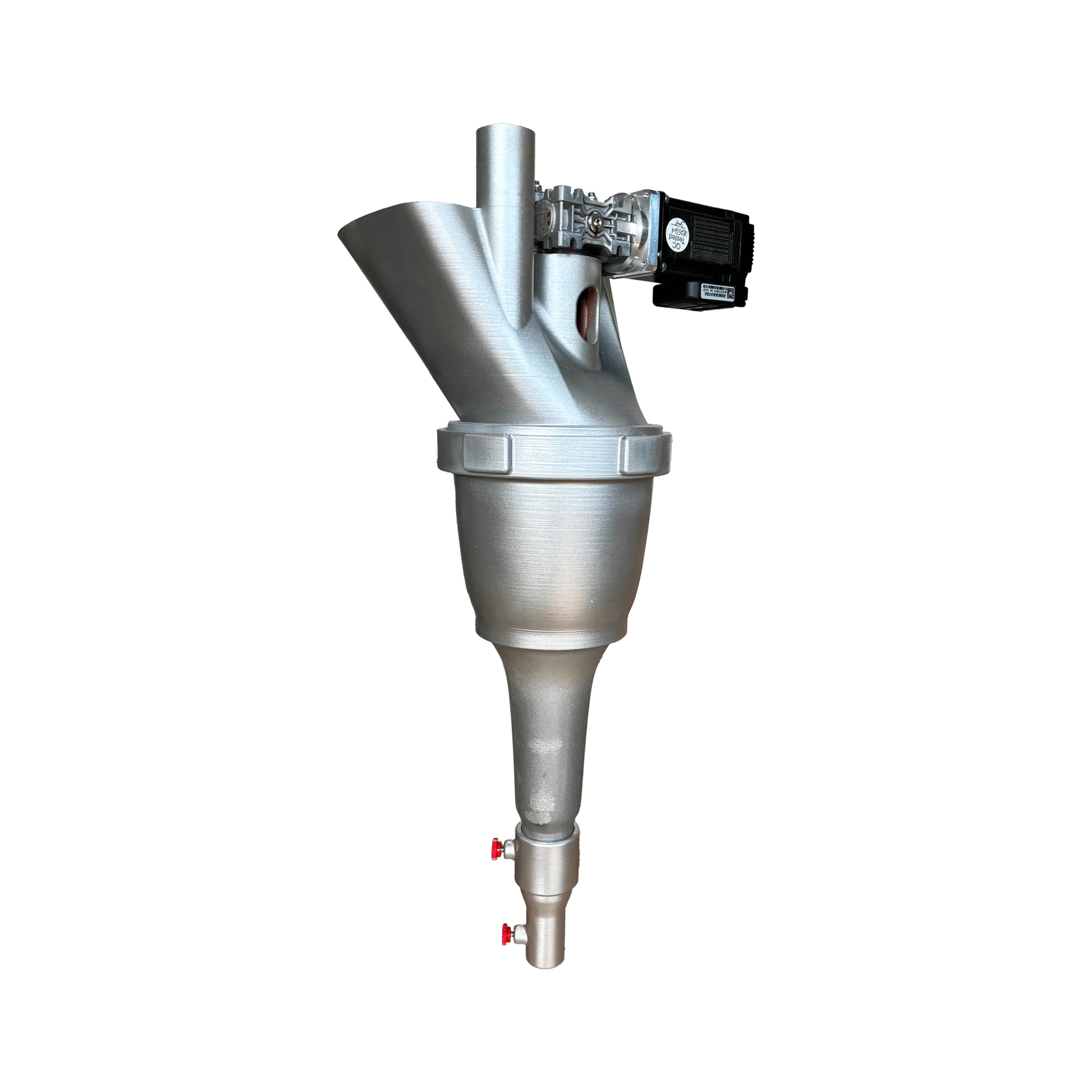

Auger includes:
- Top drive assembly with gearbox and motor
- Auger screw assembly
- 2 nozzles, 1/2 in and 3/4 in. 1 in opening with no nozzle
- Adapter sleeve (depending on printer model it is going on)
