3D PotterBot 10 XL with Auger System
- Regular price
- Price: $13,890.00
- Regular price
- List Price: $14,599.00
- Sale price
- Unit price
- per
Free shipping is available to continental United States, and applies to all locations for weight 0 lbs – 70 lbs. Additional shipping charges may apply to Alaska and Hawaii.
SKU:
Best Prices Online - The 3D PotterBot 10 XL, when paired with our auger system, is suitable for testing small batches of cementitious and adobe materials in a laboratory or university setting. This is useful for evaluating different types of materials before using larger scale systems, such as the Scara Elite Roadrunner Rail System. It is important to note that the 10XL print bed has a maximum weight capacity of 30 pounds, so it is not recommended to exceed this limit. The auger system is not compatible with clay.
It uses our strongest motors and has 30% more printing area than our standard size model, allowing for even more creative designs.
This 10 XL printer also works with our 3600ml and 4000ml extruders which can be added later. Extruders

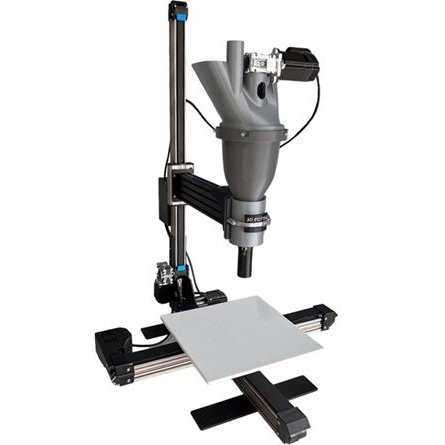

D Potterbot 10 XL Auger System

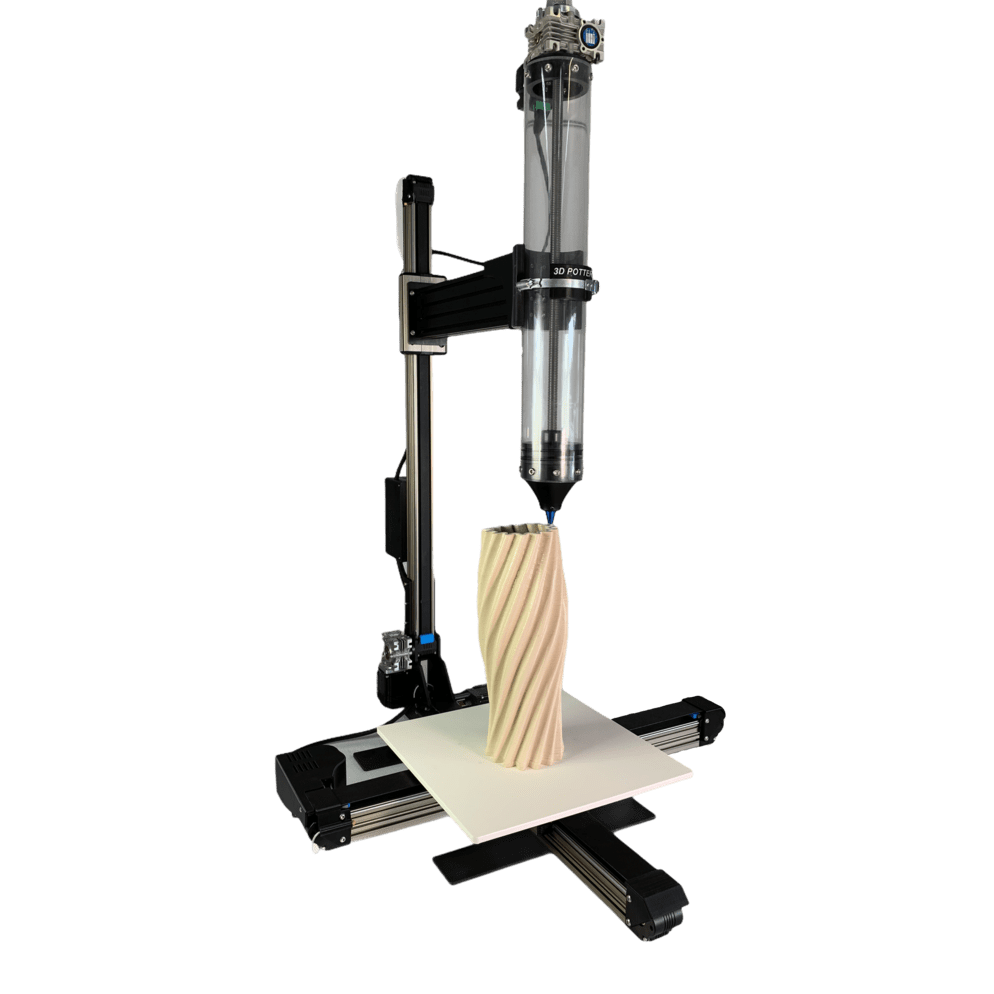

The 10 XL ceramic 3D printer can print vessels up to 28" (71cm) high. The 10 XL has the largest extruder out of all of our printers, holding 18 pounds of clay. This lets you print more and reload less. With a 4000ml extruder, you can print dozens of objects and still have clay left over.
3D Potter Clay Printers
3D Potter clay printers use high-quality anodized aluminum rails. These rails are robust and have a smooth surface, allowing for easy movement of parts while being able to withstand classroom or industrial environments.
The unique feature of our printers is the direct extrusion of real clay. Other brands use a compressed air system printing with slip (watered down clay or an alcohol diluted clay). The advantage of direct extrusion is the ability to print with full bodied clay, or other paste-like materials. All materials used to build our printers are food grade, so get creative.
The 10th generation ceramic 3D printer brings a full web interface controlled over WiFi. You can now control and upload files to the printer from multiple devices simultaneously.
The 10th generation also has a uniform nozzle design across all of our printers. This allows you to interchange nozzles between all of our printers, from the Micro to the Scara V3.

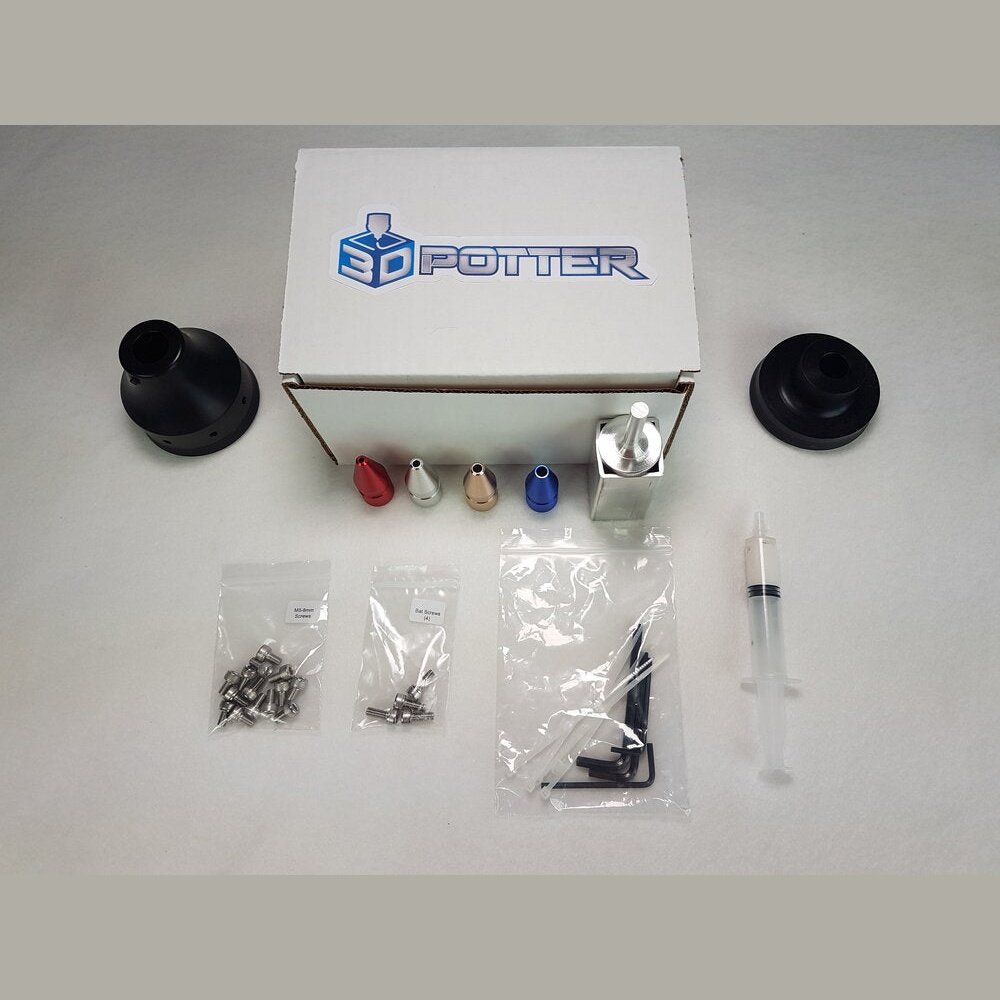

What's included:
1. 3D PotterBot 10 XL with Auger System
2. Closed loop stepper on X, Y, Z, extruder
3. Optional 3600ml or 4000ml extruder, 2 tubes and anti-Rotator, Anodized aluminum print nozzles (in sizes: 3, 4, 5, and 6mm)
4. 2 nozzles, 1/2 in and 3/4 in. 1 in opening with no nozzle
5. XL Parts Box
6. Power Supply
7. Wall mount bracket
Specifications
Printing Envelope:
X-19.3" (490 mm)
Y-19.3" (490 mm)
Z-28" (710 mm)
*Note, Auger Z height print envelope is approximately 24"
Printer size:
W-32” L-40” H-47”
Normal operation space needed 3600ml: W-32” L-40” H-82”
Normal operation space needed 4000ml: W-32” L-40” H-85”
Maximum operation space needed: W-35” L-42” H-89”
Print Bed 15x15in” (381x381mm)
Height with the extruder fully extended is 89” (2260mm)
Weight with extruder: 60 lbs.
Recommended print speed: 1.1”/s’ to 7.9’’/s (30 to 200 mm/s)
Maximum print speed: 7.9in”/s (200mm/s)
Power Supply: Output - 24V 10 amps, Input - 100-240V, 50-60 Hertz.
Power consumption: 24V ~6 amps, ~144 Watts
Main controller board running Duet3D with Atmel SAM4E8E: 120 MHz ARM Cortex-M4
