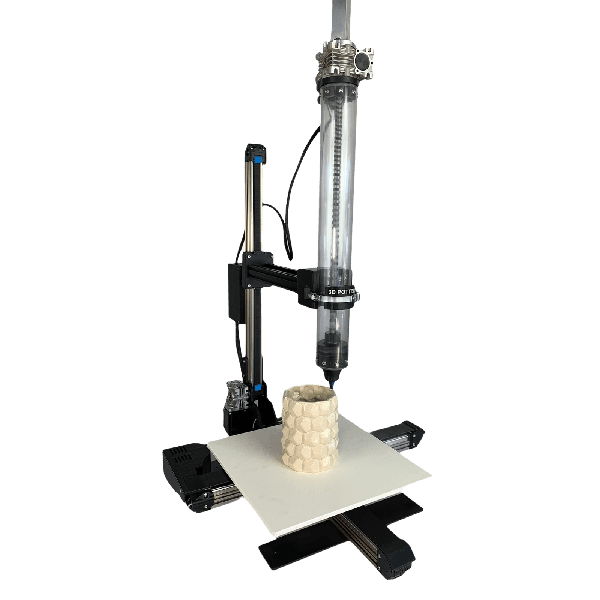

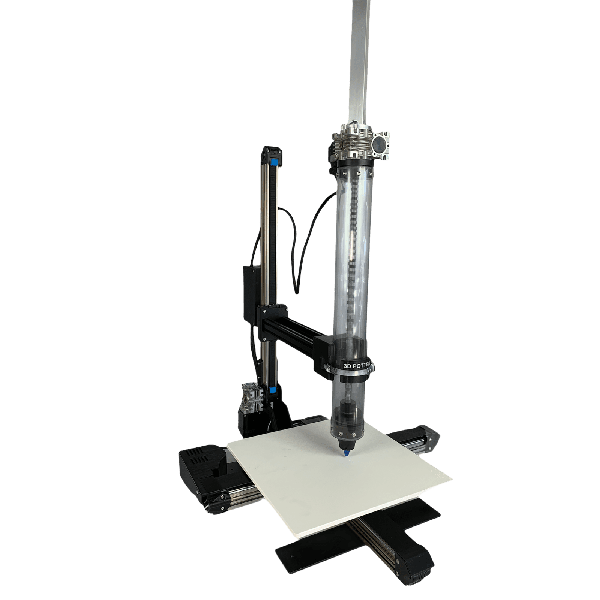

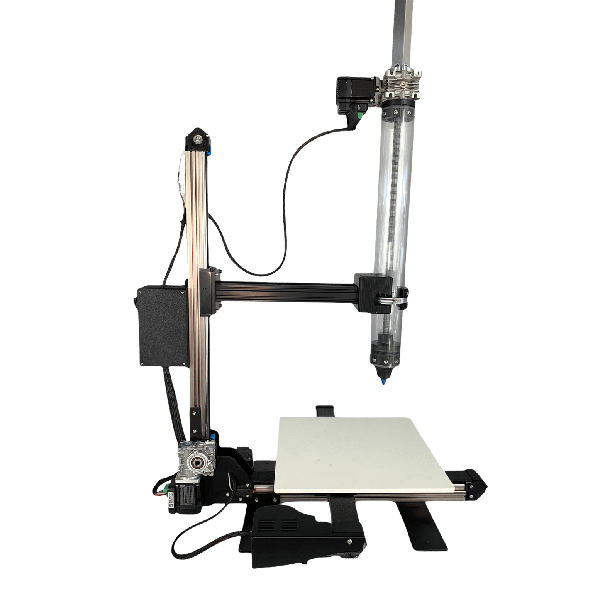

3D PotterBot 10 PRO

Best Prices Online - The 3D Potterbot 10 PRO is the upgraded version of the Potterbot 10 Micro printer. The Pro is larger and utilizes hybrid closed loop stepper motors that nearly double its power.

The 10 PRO is the first printer in our lineup that uses hybrid motors on every axis. Utilizing the hybrid stepper motor with our clay extruder gives you faster extrusion speeds and higher volume output. This means you can use larger nozzles and reduce print time. The hybrid stepper motor on the extruder is capable of higher forces so a thicker paste material can be extruded. The motors have their own internal torque settings, so if there is a blockage, they will shut themselves off automatically.

As the name suggests, this printer is preferred by professionals who like to print multiple vessels at a time or many single prints back to back.

3D Potter Ceramic 3D Printers

3D Potter ceramic 3D printers use high-quality anodized aluminum rails. These rails are robust and have a smooth surface, allowing for easy movement of parts while being able to withstand classroom or industrial environments.

The unique feature of our printers is the direct extrusion of real clay. Other brands use a compressed air system printing slip (watered down clay or alcohol diluted clay). The advantage of direct extrusion is printing full-body clay or other paste-like materials. All materials used to build our printers are food grade, so get creative.

We keep improving our 3D printer designs. The 10th generation brings a new wireless feature with a full web interface controlled over WiFi. You can now control and upload files to the printer from multiple devices simultaneously.

The 10th gen has a new uniform nozzle design for improved performance. This allows you to interchange nozzles between all of our printers, from the Micro to the Scara V4.

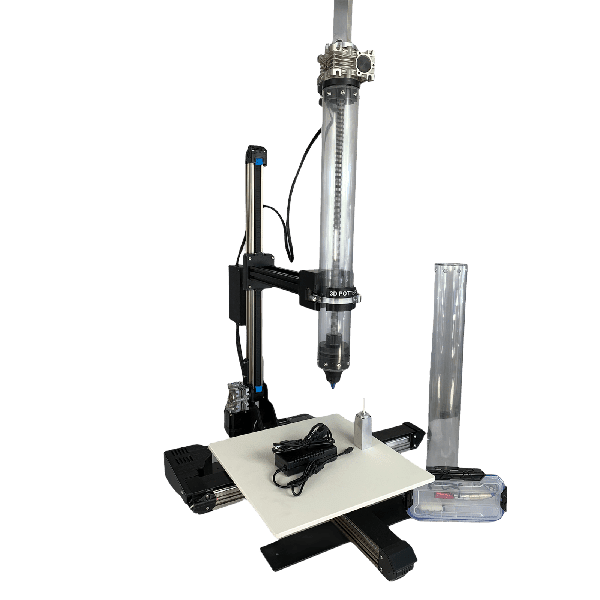

What's included:

1. 3D PotterBot 10 PRO

2. Closed loop stepper on X, Y, Z, extruder

3. 2000ml extruder, 2 tubes

4. 4 anodized aluminum nozzles (standard sizes: 3, 4, 5, and 6mm)

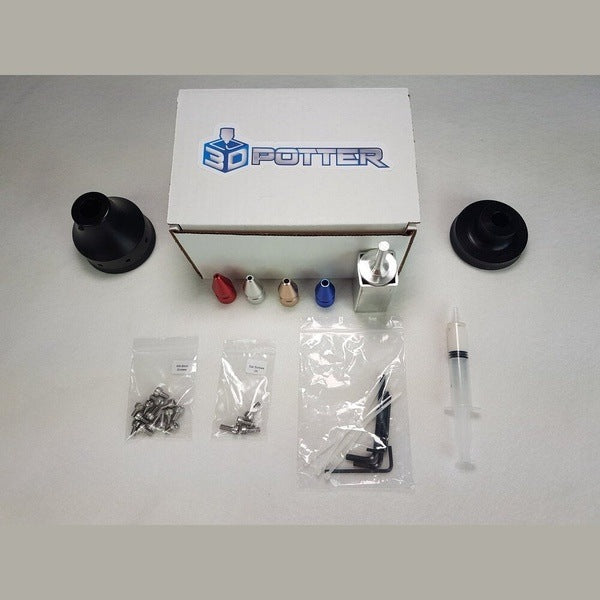

5. Parts Box: Alan key set, grease, Acme driver tool, tie wraps, extra screws

6. Power Supply

Specifications

Printing Envelope:
X-16” (415mm)
Y-16” (405mm)
Z-20” (500mm)

Printer size:
W-26” L-34” H-36”
Operation space needed: W-32” L-40” H-78”
Bat size (printer bed): 15x15in” (381x381mm)
Height to the top of the extruder fully extended is 78” (1981mm)
Weight with extruder: 46 lbs. (20kg)

Recommended print speed: 1.1”/s’ to 7.9’’/s (30 to 200 mm/s)
Maximum print speed: 7.9in”/s (200mm/s)
Power Supply: Output - 24V 10 amps, Input - 100-240V, 50-60 Hertz.
Power consumption: 24V ~4 amps, ~96 Watt
Main controller board running Duet3D with Atmel SAM4E8E: 120 MHz ARM Cortex-M4

Full control through web interface, no apps or software installation.
