PRODUCT DESCRIPTION
Best Prices Online - The 3D PotterBot 10 Micro is our entry-level 3D ceramic printer. This is an ideal printer for the classroom, or for an artist interested in 3D ceramic printing technology. It features a 1,000ml extruder with a build envelope of up to 1 foot. Even though this is our smallest 3D clay printer, it is capable of high print speeds. The 3D PotterBot 10 Micro compact design can fit in almost any space.
3D Potter printers
3D Potter printers use high-quality anodized aluminum rails. These rails are robust and have a smooth surface, allowing for easy movement of parts while being able to withstand classroom or industrial environments. All materials used to build our clay printers are food-grade.
A unique feature of 3D Potterbot's ceramic printers is the direct extrusion of real clay. Other brands use a compressed air system printing with slip (a watered-down clay or alcohol diluted clay). No need to add chemicals, or use special mixtures.
The 10th generation brings a new wireless feature with a full web interface controlled over WiFi. You can now control and upload files to the printer from multiple devices simultaneously. The interface allows you full control over every setting of the machine. Interface preview.
An improved nozzle design for performance and made of aluminum for durability. Nozzles are now interchangeable and can be used with all of our 3D Printers.

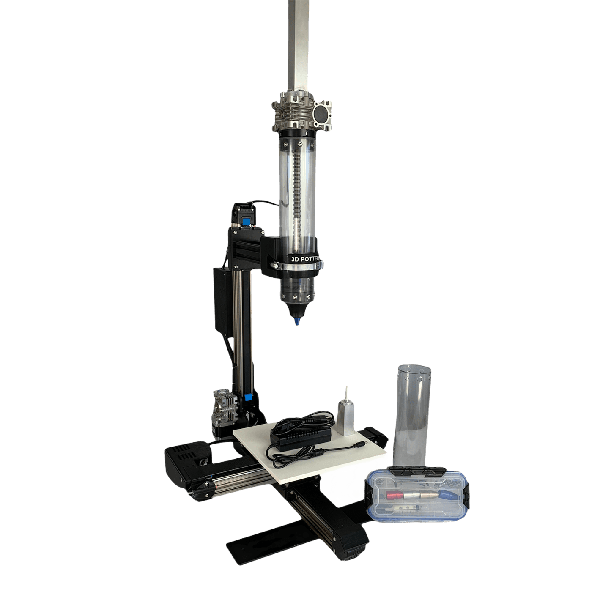

What's included:
1. 3D PotterBot 10 Micro printer
2. 1000ml extruder
3. 2-1000ml Polycarbonate Tubes
4. Printer Bat
5. Anti-rotator
6. A set of 4 anodized aluminum nozzles (sizes: 3, 4, 5, and 6mm)
7. Parts Box: Alan key set, grease, tie wraps, extra screws
8. ACME driver tool to load/unload extruder
9. Power Supply
Specifications
Printing Envelope:
X-10” (280mm)
Y-10” (265mm)
Z-12” (305mm)
3D Printer size:
L-30” W-21” H-28”
Operation space needed: W-22” L-30” H-50”
Bat size (printer bed): 10.5"x10.5” (266mmx266mm)
Distance to the top of the extruder fully extended is 50" (1270mm)
Weight with extruder: 38 lbs. (17kg)
Recommended print speed: 1.2” to 2.4”/s (30 to 60 mm/s)
Maximum print speed: 5.1in”/s (130mm/s)
Power Supply: Output - 24V 6 amps, Input - 100-240V, 50-60 Hertz.
Power consumption: 24V ~3 amps, ~72 Watt
Main controller board running Duet3D with Atmel SAM4E8E: 120 MHz ARM Cortex-M4
