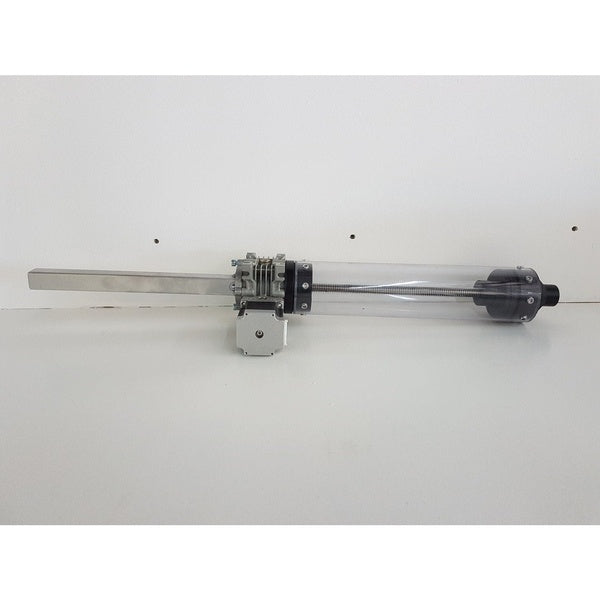

1000 ml Linear Actuator Ram

Linear actuator ram only.

This is an ideal extruder option if you already have an existing ceramic 3D printer. This RAM can be adapted to almost any style of machine. It is a direct replacement extruder for Potterbot Micro Versions 7, 9, and 10.

The compact 1000ml size makes it easy to handle and can fit into tight spaces.

We have developed an extruder system for large-scale delivery of paste materials. It is designed for thicker materials like heavy clay, thick dough, and confectionery products. The extruder is constructed using food-grade materials and is safe for food handling. This linear actuator RAM is fully controllable using standard ceramic 3D printer control software. You can change and control the flow rate while printing. With the larger extruder capacity and the robust components, our extruder is able to flow at much higher rates. In a commercial application, this gives you the ability to produce at higher cycle times. During the design and construction of the extruder, we paid particular attention to the ease of disassembly and clean-up.

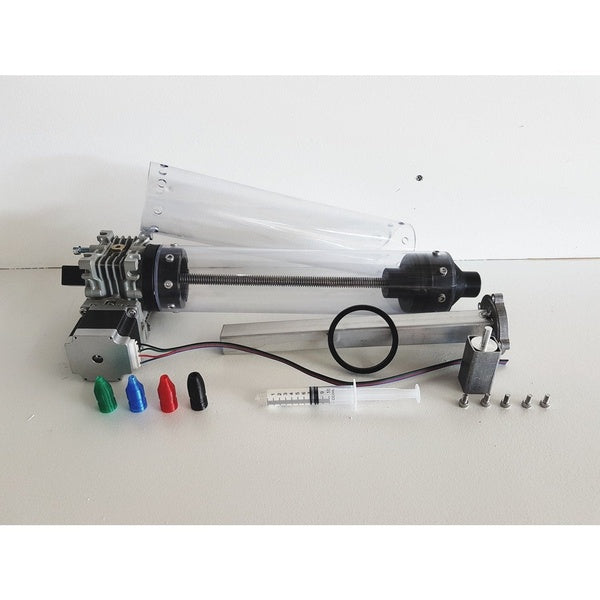

Linear RAM package includes:
- Extruder Assembly
- 2 poly-carbonate 1000 ml tubes
- Acme Driver tool for fast loading/unloading
- Wiring connectors
- White lithium grease

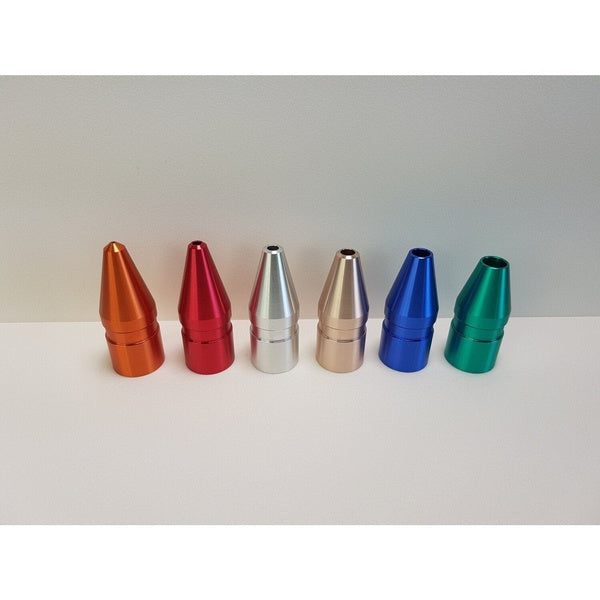

- 4 anodized aluminum nozzles (sizes: 3, 4, 5, and 6mm)
- Extra screws
- Extra seal

When fully loaded with clay, extruder weight is ~8lb.

We do not provide the driver to run the motor on this extruder. Please be familiar with stepper motors before ordering this product.
